Diagnosis System

DESCRIPTION
1. Push button start system data and its Diagnosis Trouble Codes (DTCs) can be read in the Data Link Connector 3 (DLC3). When the system seems to be malfunctioning, use the hand-held tester to check for malfunctions and perform repairs.

CHECK DLC3

HINT:

The vehicle uses the ISO 9141-2 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.

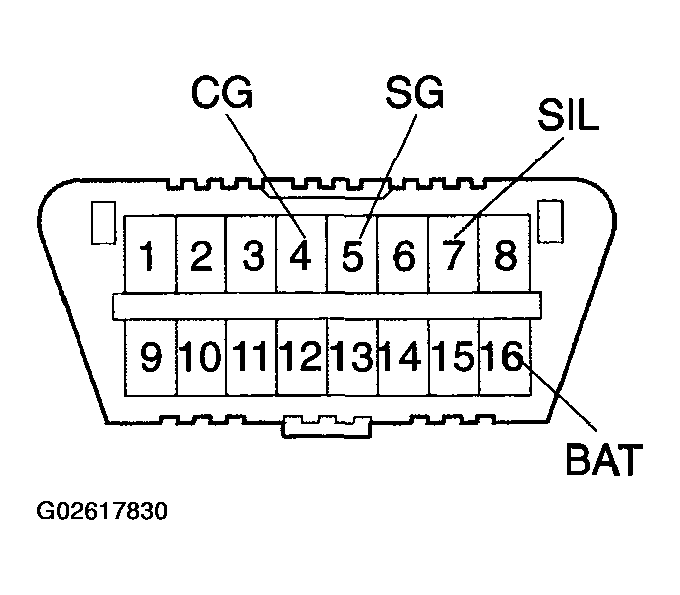

Fig 1: Identifying DLC3 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SYMBOLS CONDITION AND SPECIFIED CONDITION SPECIFICATION

Symbol	Terminal No.	Name	Reference terminal	Result	Condition
SIL	7	Bus "+" line	5 - Signal ground	Pulse generation	During transmission
CG	4	Chassis ground	Body ground	Below 1 Ω	Always
SG	5	Signal ground	Body ground	Below 1 Ω	Always
BAT	16	Battery positive	Body ground	11 to 14 V	Always

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

HINT:

Connect the cable of the hand-held tester (with CAN VIM) to the DLC3, turn the power switch ON (IG) and attempt to use the hand-held tester. If the display informs that a communication error has occurred, there is a problem either with the vehicle or with the tester.

If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
If communication is still impossible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.

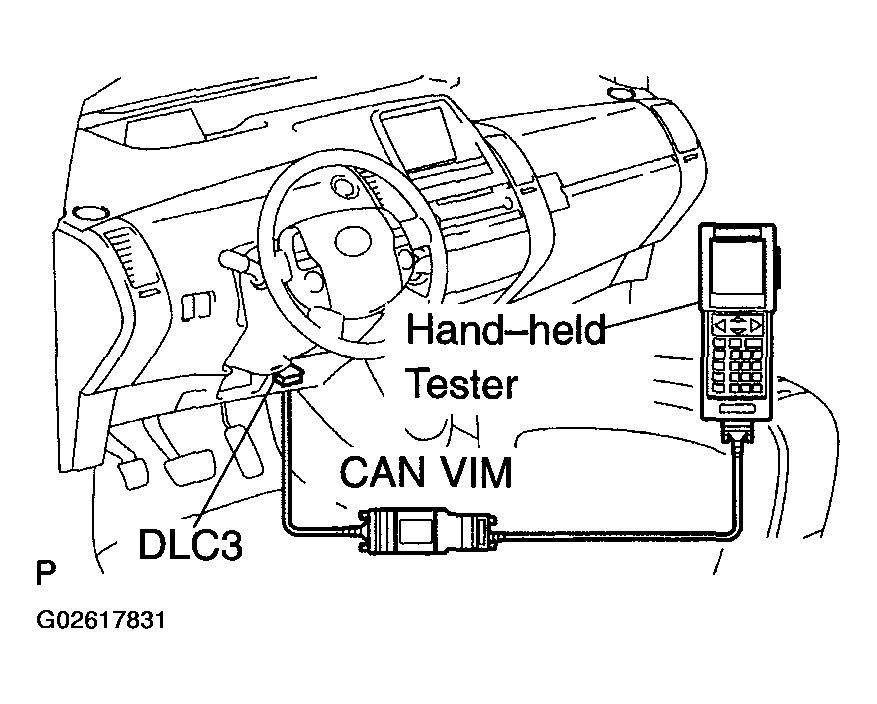

Fig 2: Connecting Cable Of Hand-Held Tester (With CAN VIM) To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT BATTERY VOLTAGE
Standard: 11 to 14 V

If the voltage is below 11 V, replace the battery before proceeding.
