Inspection Procedure

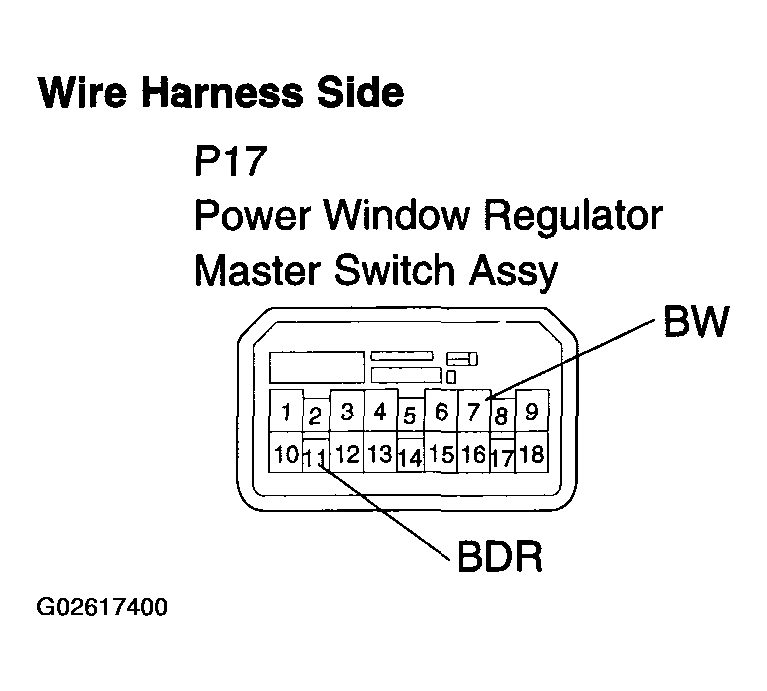

- CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY (BW, BDR VOLTAGE)
- Disconnect the P17 master switch connector.
- Measure the voltage of the wire harness side connector.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition P17-7 (BW)- Body ground Always 10 to 14 V P17-11 (BDR)- Body ground Power switch ON (IG) 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (BATTERY - POWER WINDOW REGULATOR MASTER SWITCH ASSY)
- OK

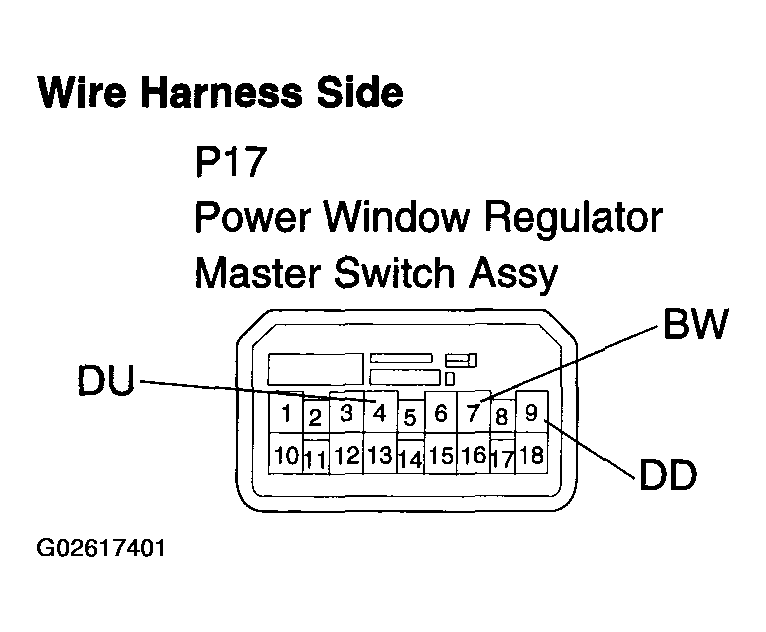

- CHECK POWER WINDOW REGULATOR MOTOR ASSY FRONT LH
- Disconnect the P17 master switch connector.
- Using a service wire, connect the terminals according to the table below.
- Check operation of the power window regulator motor.
OK:
WIRE CONNECTION SPECIFIED CONDITIONWire Connection Specified Condition P17-4 (DU)-P17-7 (BW) P17-9 (DD) - Body ground Power window moves UP P17-4 (DU) - Body ground P17-7 (BW)-P17-9 (DD) Power window moves DOWN
- NG: Go to step 3
- OK
REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY (SWITCH OPERATION) (SEE INSPECTION
)
- NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
- OK

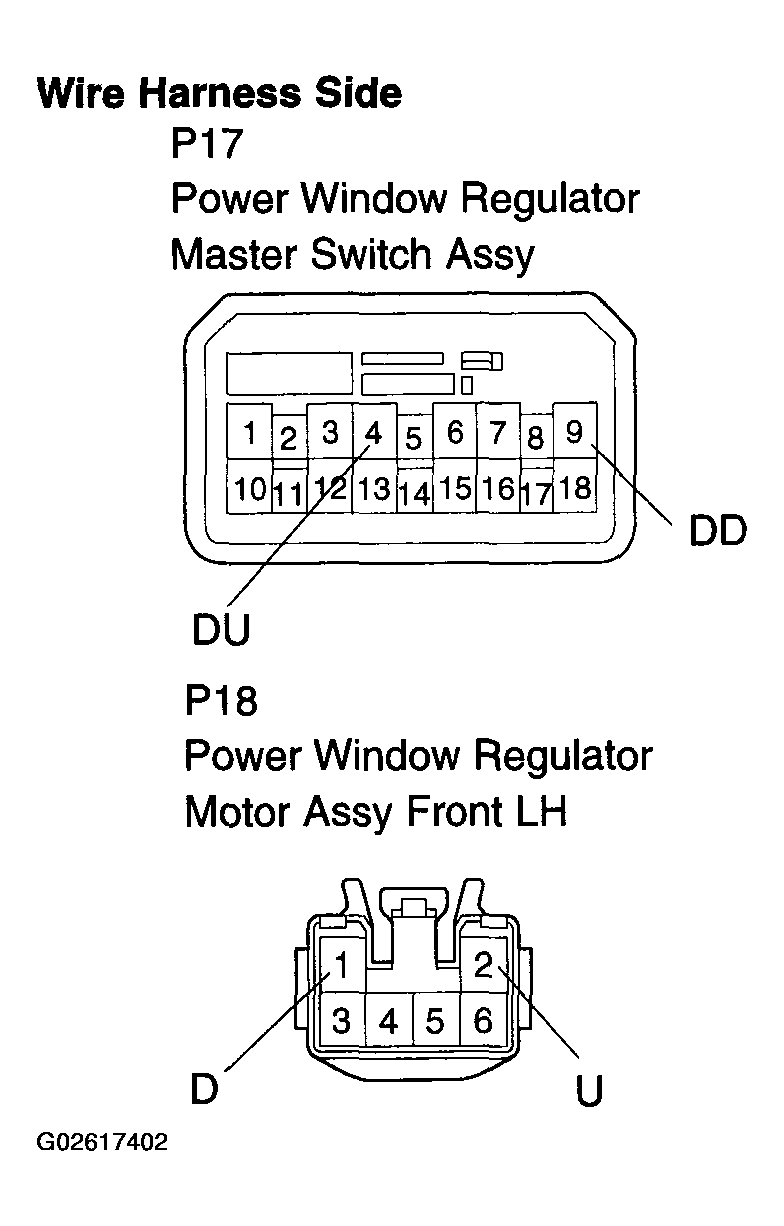

- CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - POWER WINDOW REGULATOR MOTOR ASSY)
- Disconnect the P17 master switch connector.
- Disconnect the P18 motor connector.
- Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition P17-9 (DD)-P18-1 (D) Below 1 Ω P17-4 (DU)-P18-2 (U) Below 1 Ω P17-9 (DD) or P18-1 (D) - Body ground 10 kΩ or higher P17-4 (DU) or P18-2 (U) - Body ground 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK
REPLACE POWER WINDOW REGULATOR MOTOR ASSY FRONT LH
