Inner Rear View Mirror ASSY: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order.
• EC mirror stands for "electrochromatic mirror".

1. w/o EC mirror:

   REMOVE INNER REAR VIEW MIRROR ASSY

   1. Push the cover in the direction indicated by the arrows labeled (a) and remove it.
   2. While holding down the claw in the direction of the arrow labeled (b), slide the inner rear view mirror in the direction of the arrow labeled (c) and remove it.

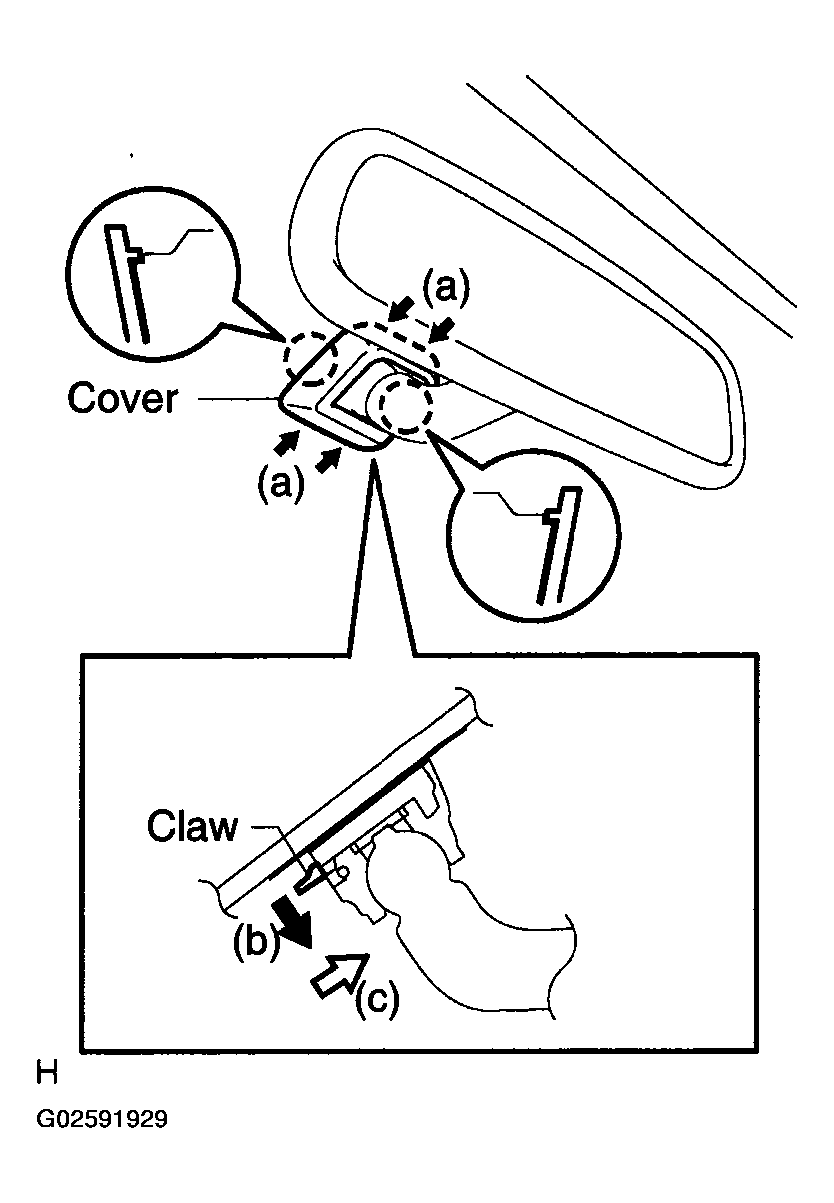

   Fig 1: Removing Inner Rear View Mirror Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ EC mirror:

   REMOVE INNER REAR VIEW MIRROR ASSY

   1. Remove the screw.
   2. Slide the mirror in the direction indicated by the arrow in Fig 2 , and remove the mirror.

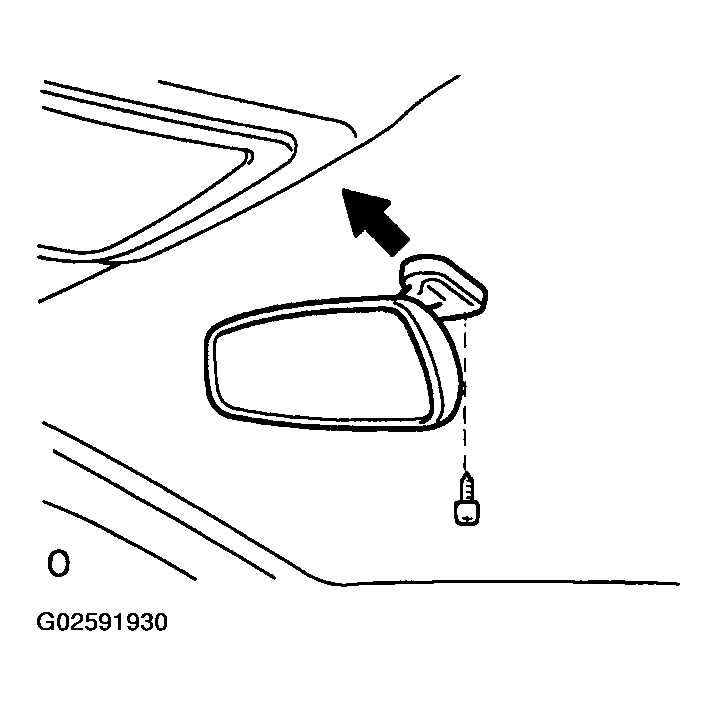

   Fig 2: Removing Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
