Outer Rear View Mirror: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL (See  OVERHAUL  )
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH (See  OVERHAUL  )
3. REMOVE DOOR PULL HANDLE (See  OVERHAUL  )
4. REMOVE FRONT DOOR ARMREST BASE PANEL UPPER (See  OVERHAUL  )
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY (See  OVERHAUL  )
6. REMOVE OUTER REAR VIEW MIRROR ASSY
   1. Disconnect the connector.
   2. Remove the 3 nuts and mirror.

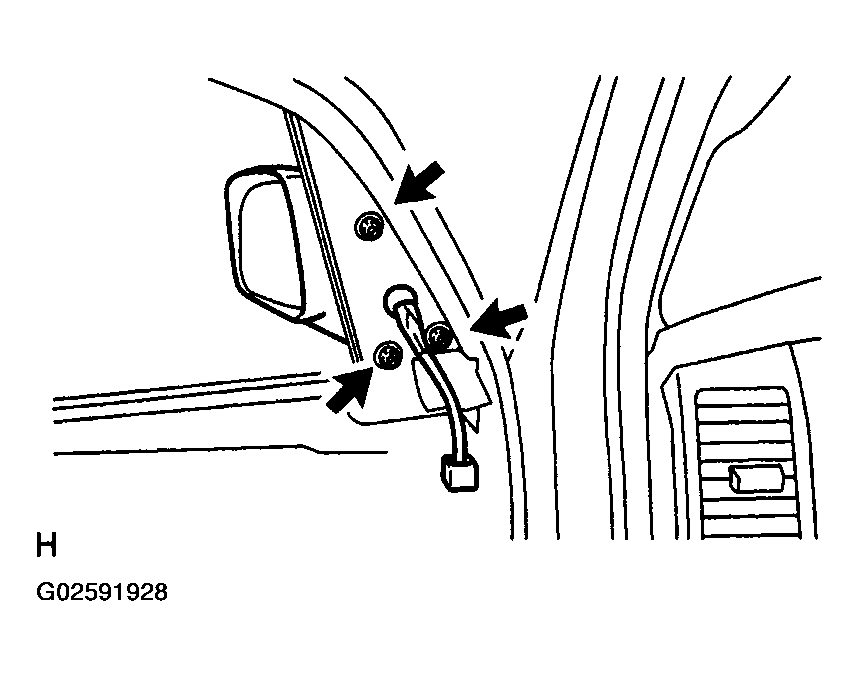

   Fig 1: Removing 3 Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE OUTER MIRROR COVER
   1. Using a moulding remover, disengage the 2 claws and outer rear view mirror.

      HINT:

      Apply protective tape to the mirror body.

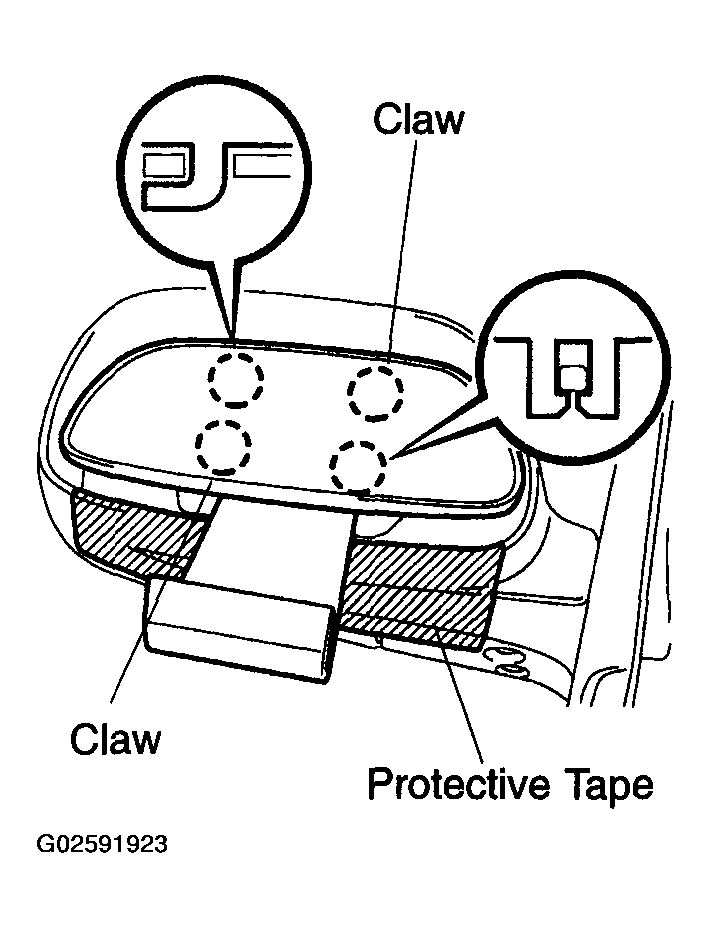

      Fig 2: Disengaging Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage the 6 claws and remove the mirror cover.

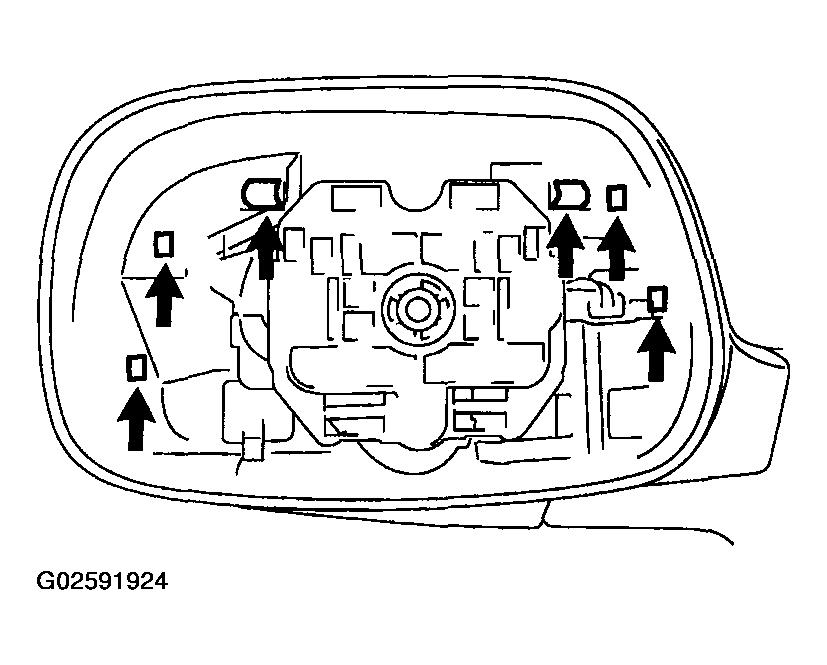

   Fig 3: Disengaging 6 Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL OUTER MIRROR COVER
   1. Install the mirror cover as shown in Fig 4 .

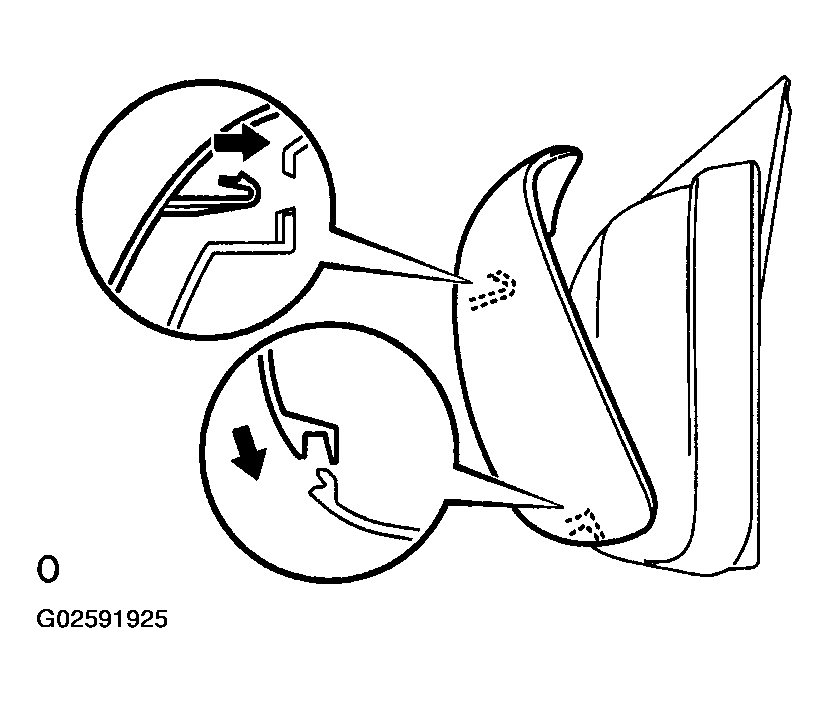

      Fig 4: Installing Outer Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. After installing the outer mirror cover, check that there is no gap between the cover and mirror body.

      HINT:

      If there is a gap between the cover and body, noise will occur during driving.

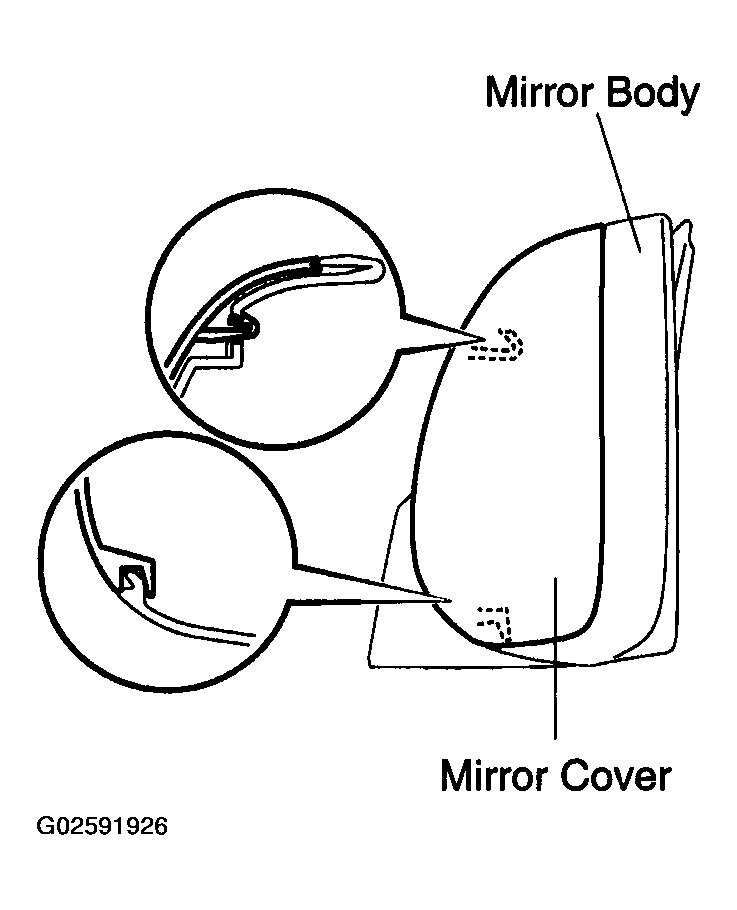

      Fig 5: Identifying Outer Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the outer mirror as shown in Fig 6 .

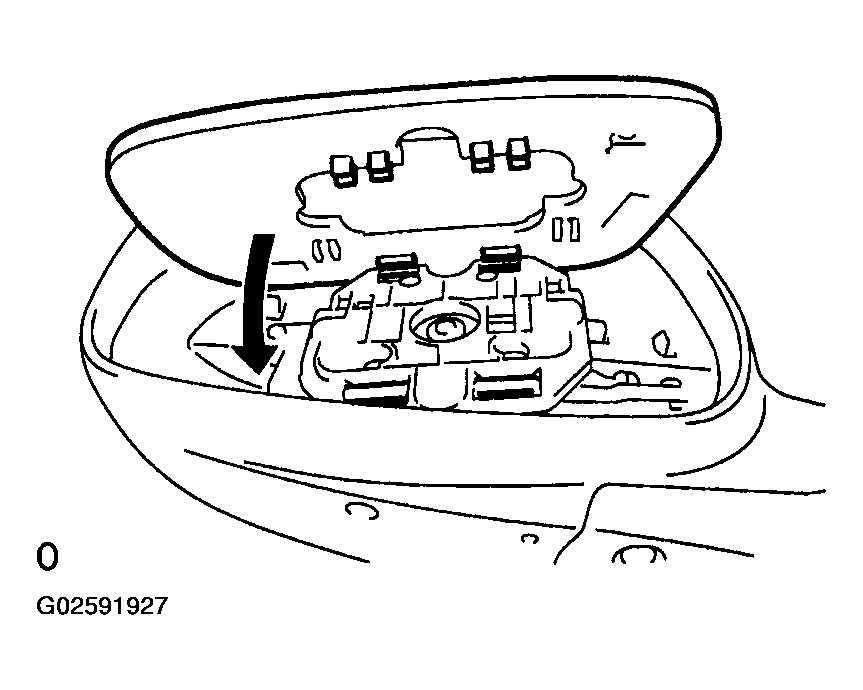

   Fig 6: Installing Outer Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL OUTER REAR VIEW MIRROR ASSY
   1. Install the mirror with the 3 nuts.

   Torque: 5.5 N.m (56 kgf.cm, 49 In..lbf)

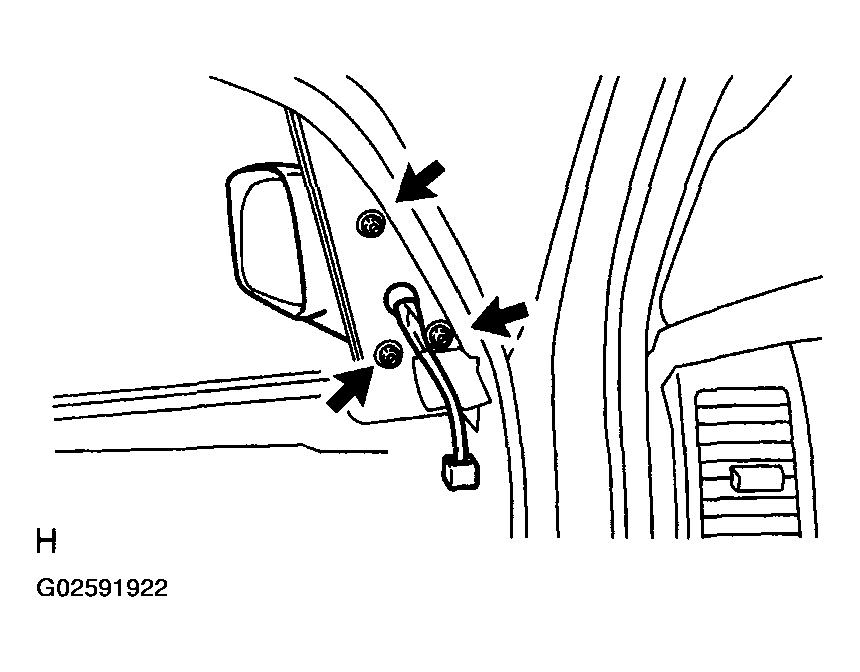

   Fig 7: Installing Mirror With 3 Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
