System Diagram

The engine control system is determined by the ECM based on signals from various sensors.

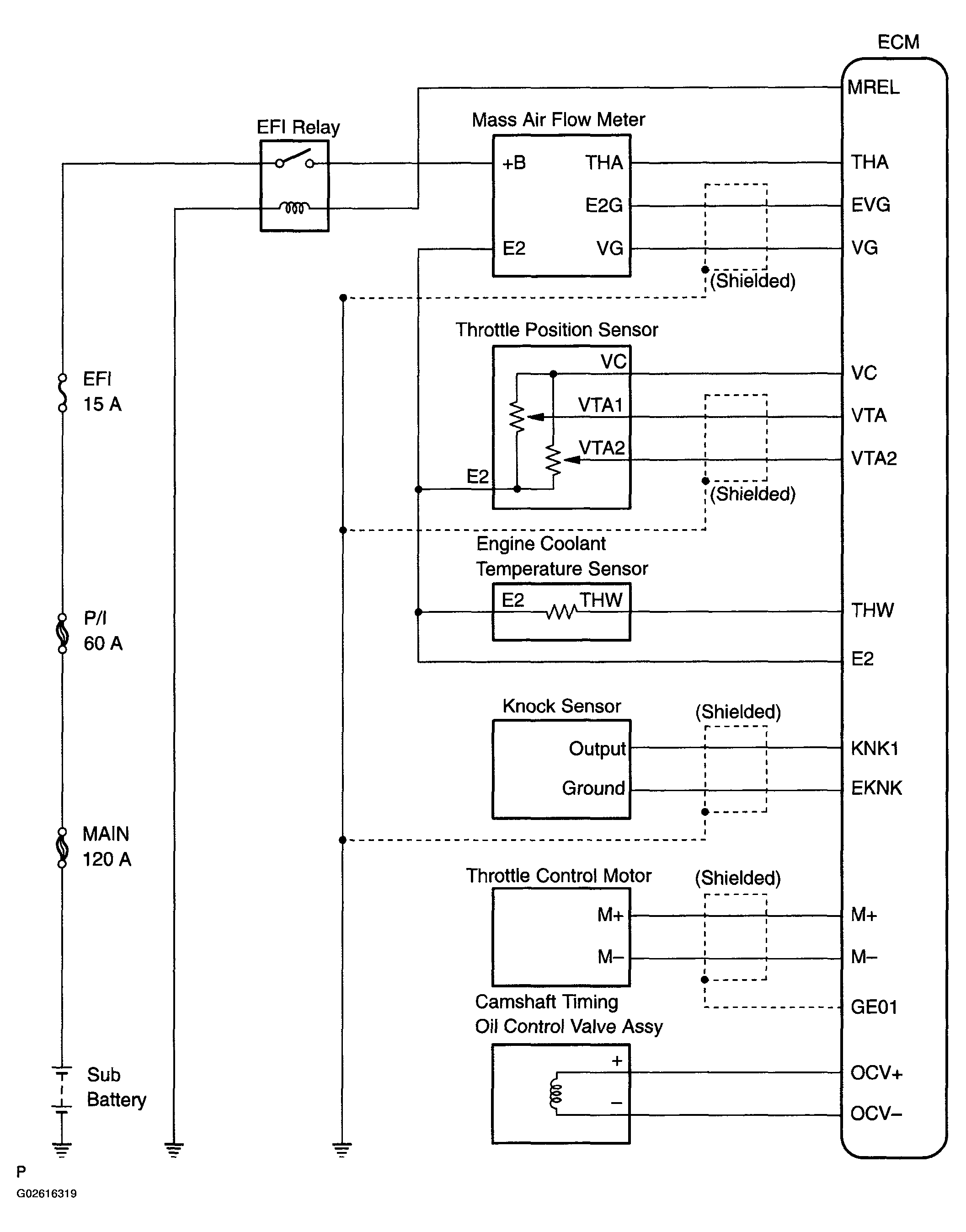

Fig 1: Engine Control System Diagram
G02616319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
