Fuel Pump Control Circuit: Wiring Diagram

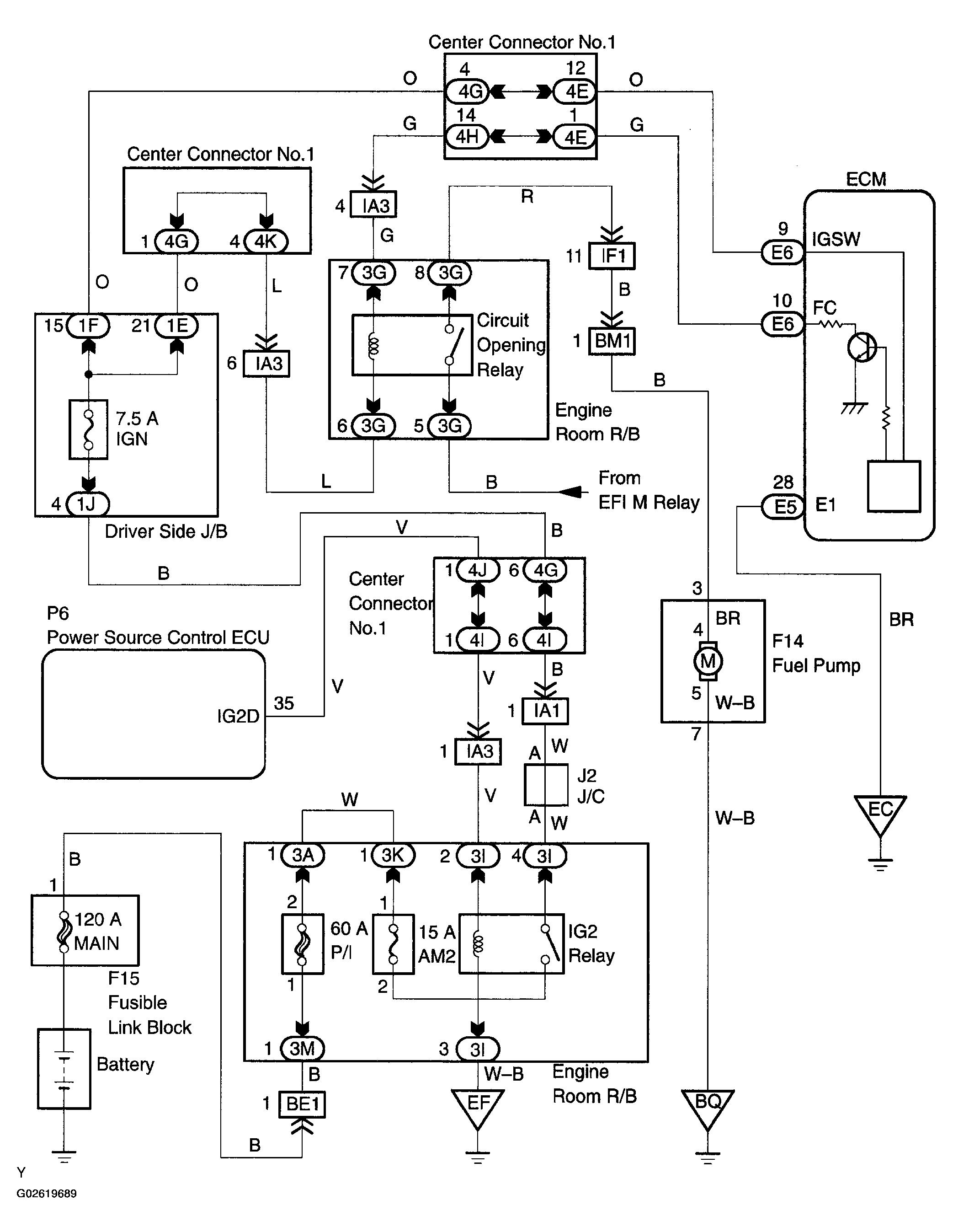

Fig 1: Fuel Pump Control Wiring Diagram
G02619689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
