Rear Seat Belt: Components

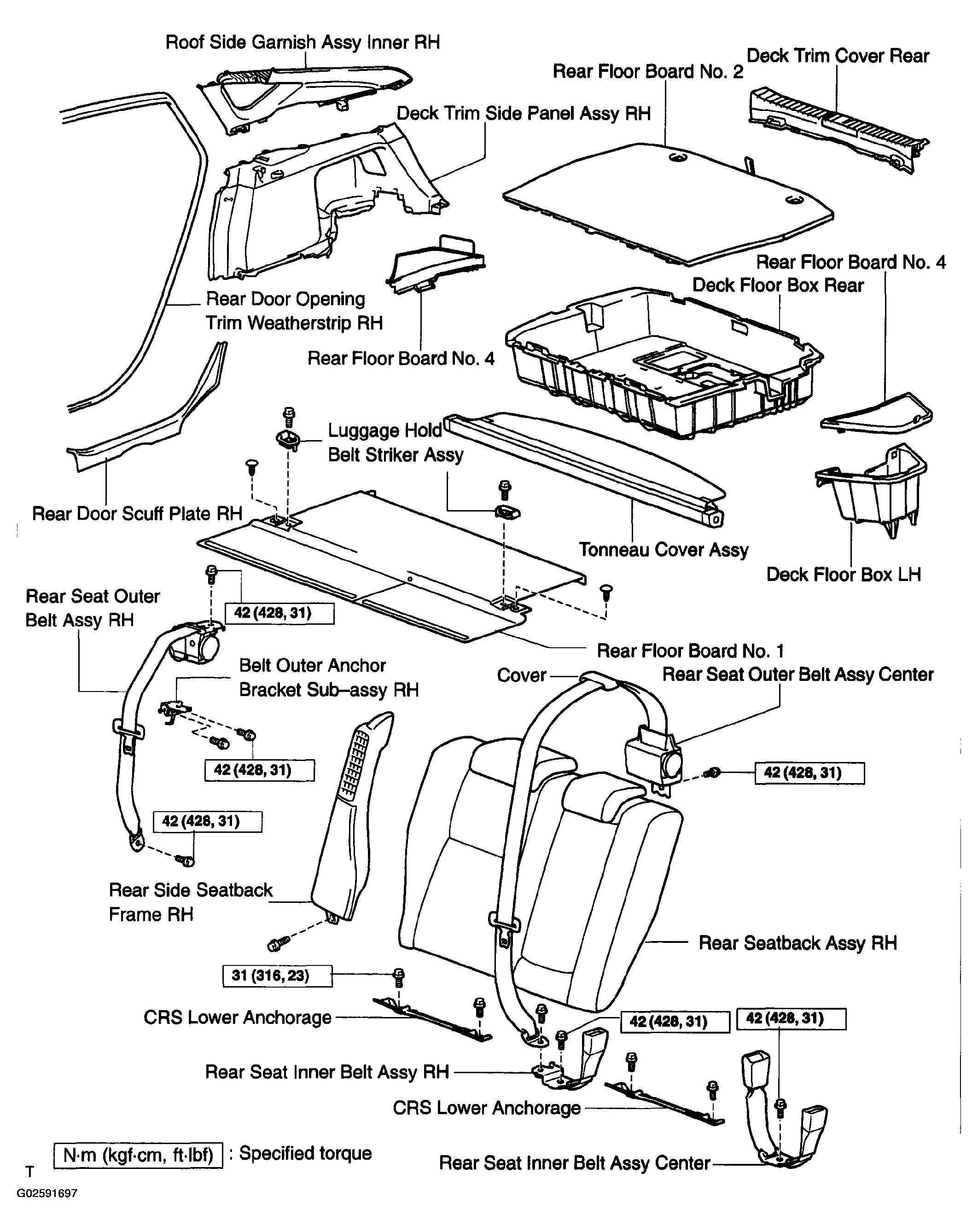

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications
G02591697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
