Differential Case ASSY: Components

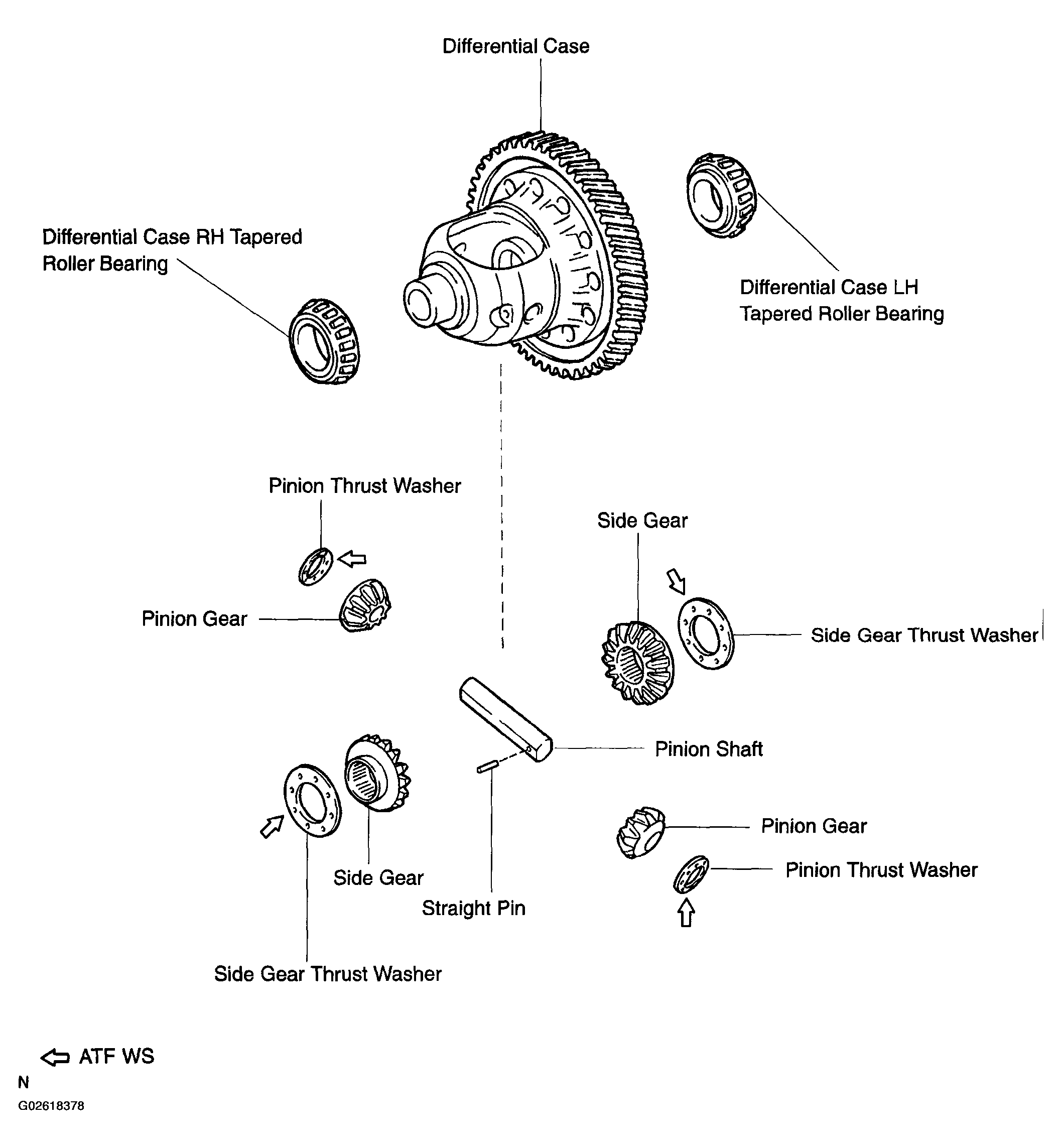

Fig 1: Identifying Differential Case Assy Components
G02618378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
