Shift Lever ASSY: Components

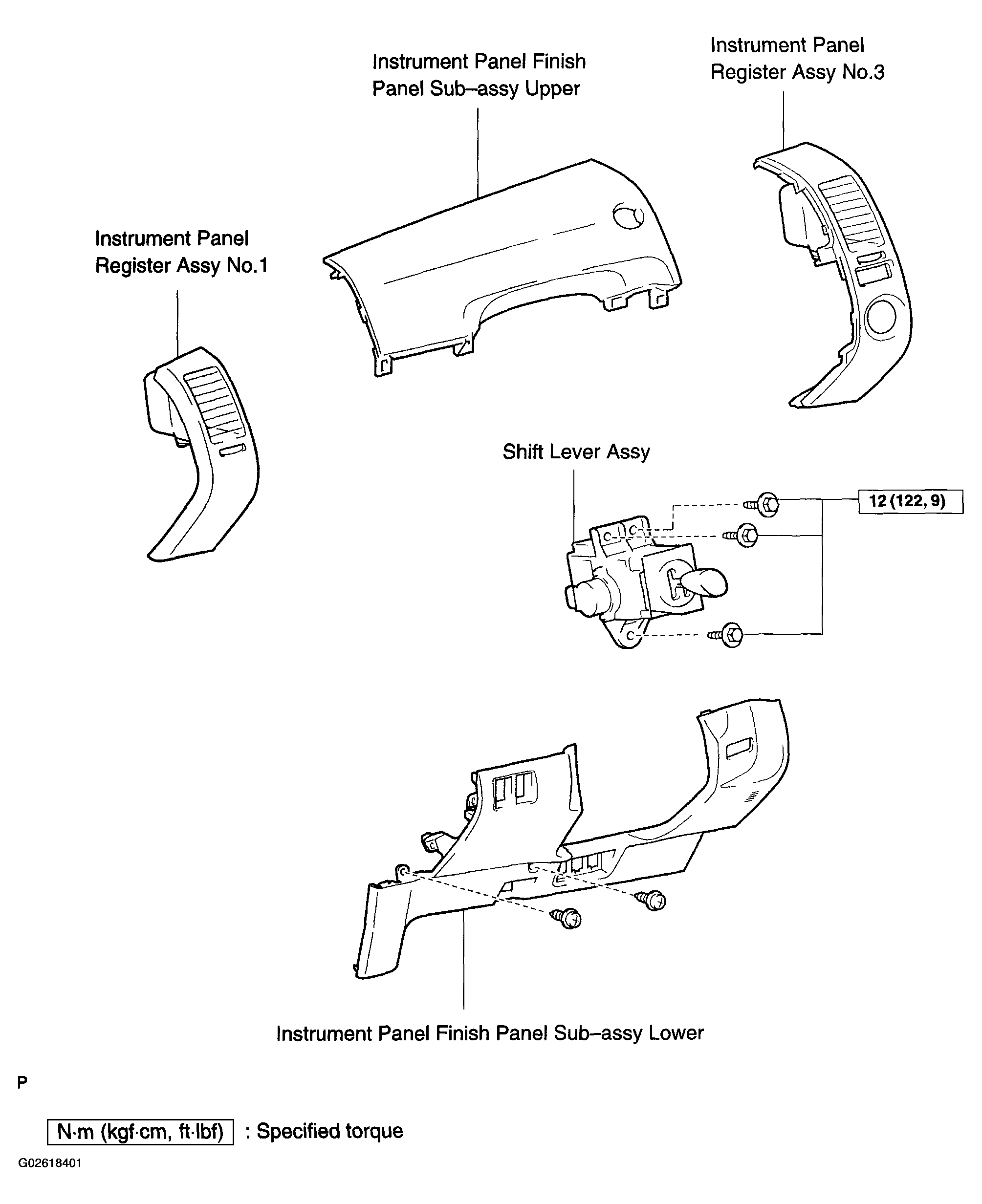

Fig 1: Shift Lever Assy Replacement Components With Torque Specifications (1 Of 2)
G02618401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

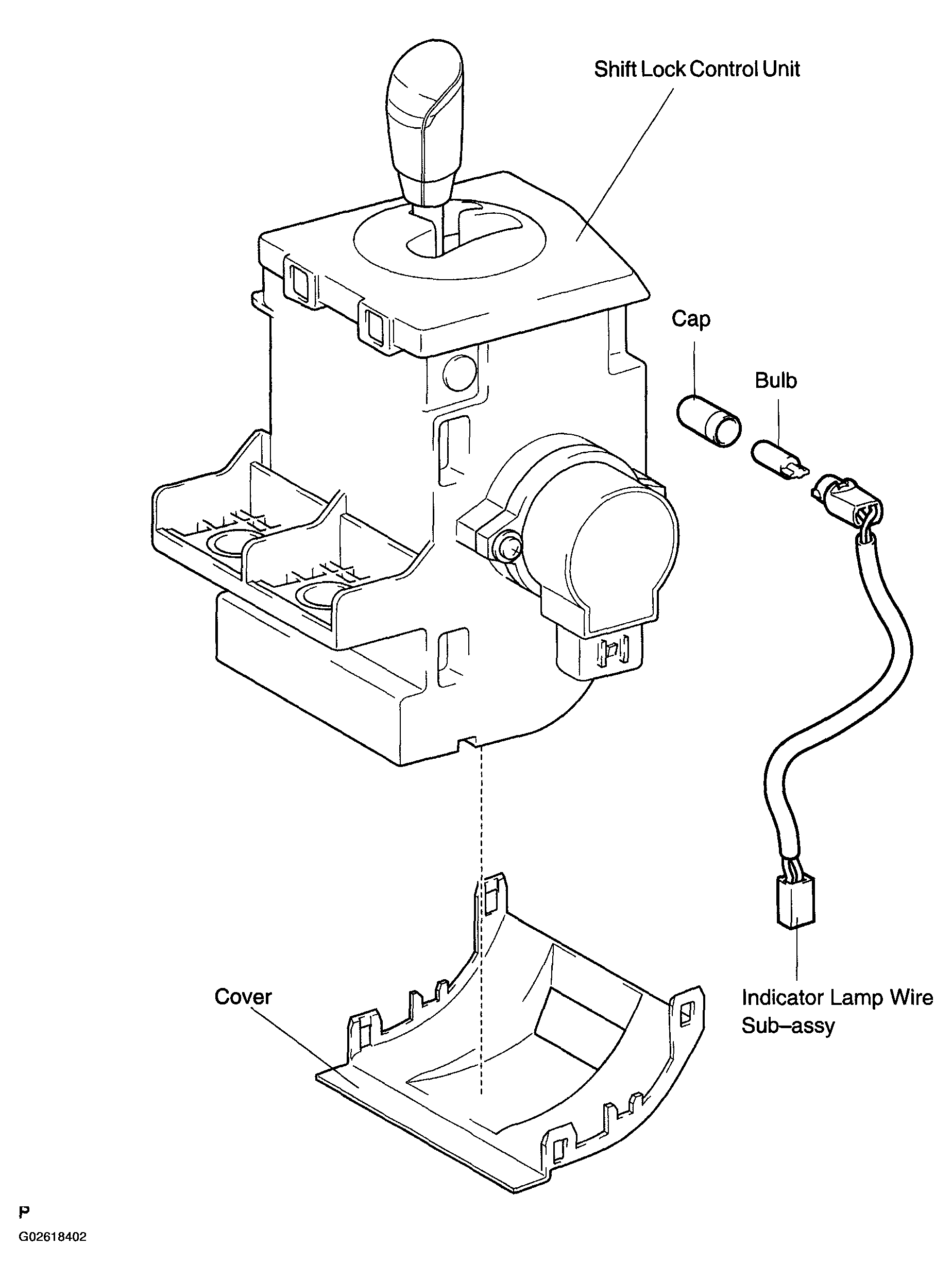

Fig 2: Shift Lever Assy Replacement Components With Torque Specifications (2 Of 2)
G02618402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
