Circuit Description

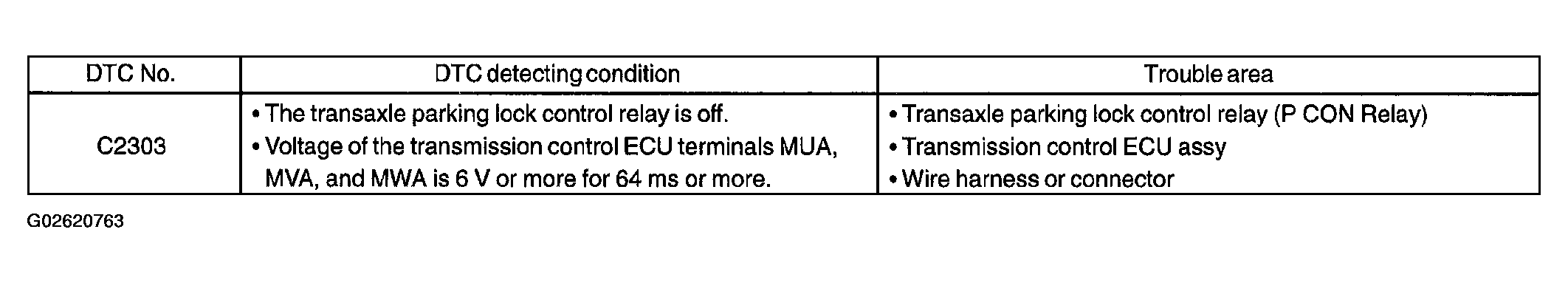

The transaxle parking lock control relay is activated by output voltage from the transmission control ECU and supplies power to the shift control actuator assy. The transmission control ECU outputs this DTC when it detects a malfunction in the transaxle parking lock control relay.
