DTC C2307: Power Source Malfunction: Wiring Diagram

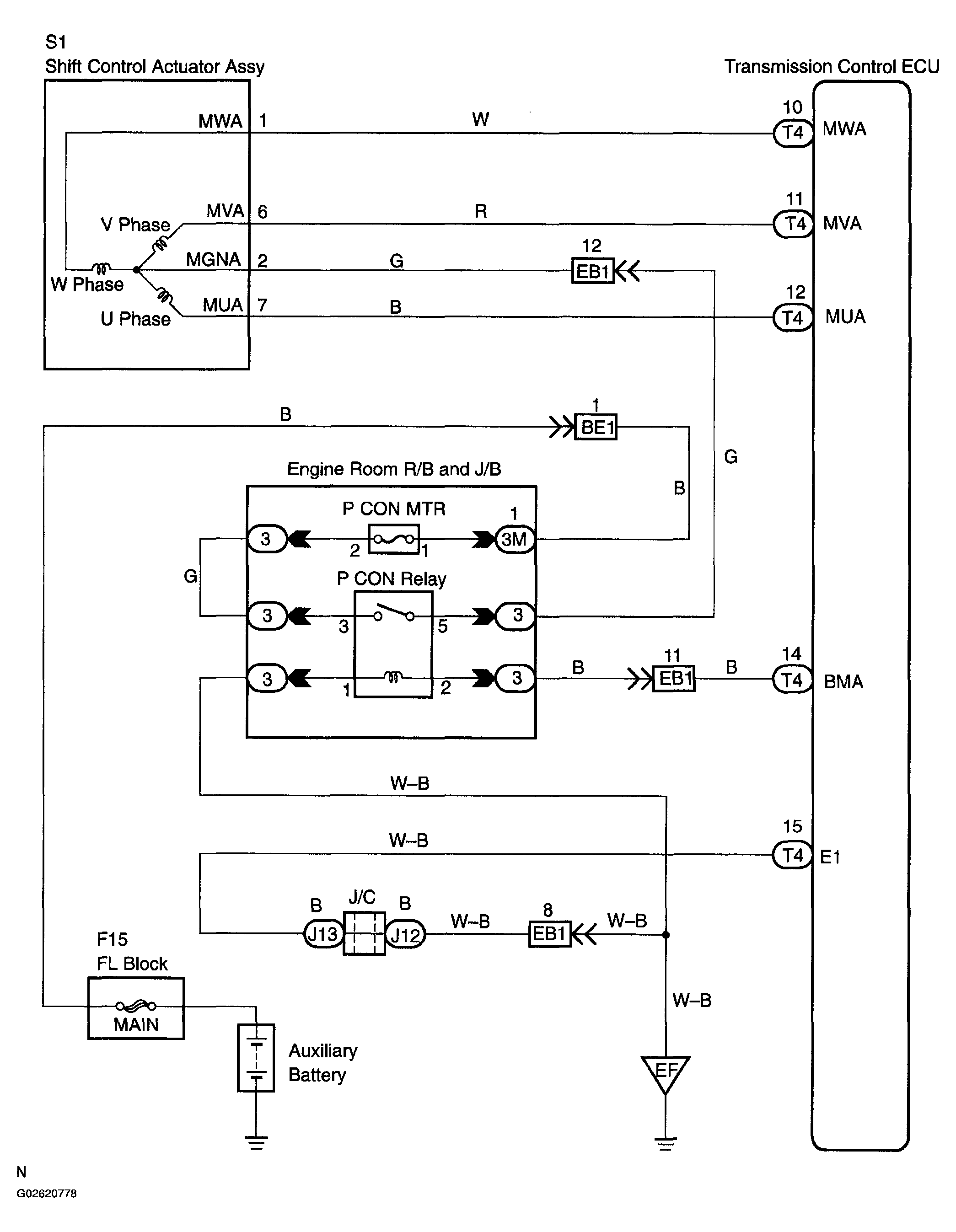

Fig 1: Wiring Diagram - DTC C2307
G02620778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
