Light Control Switch Circuit (W/ Daytime Running Light): Wiring Diagram

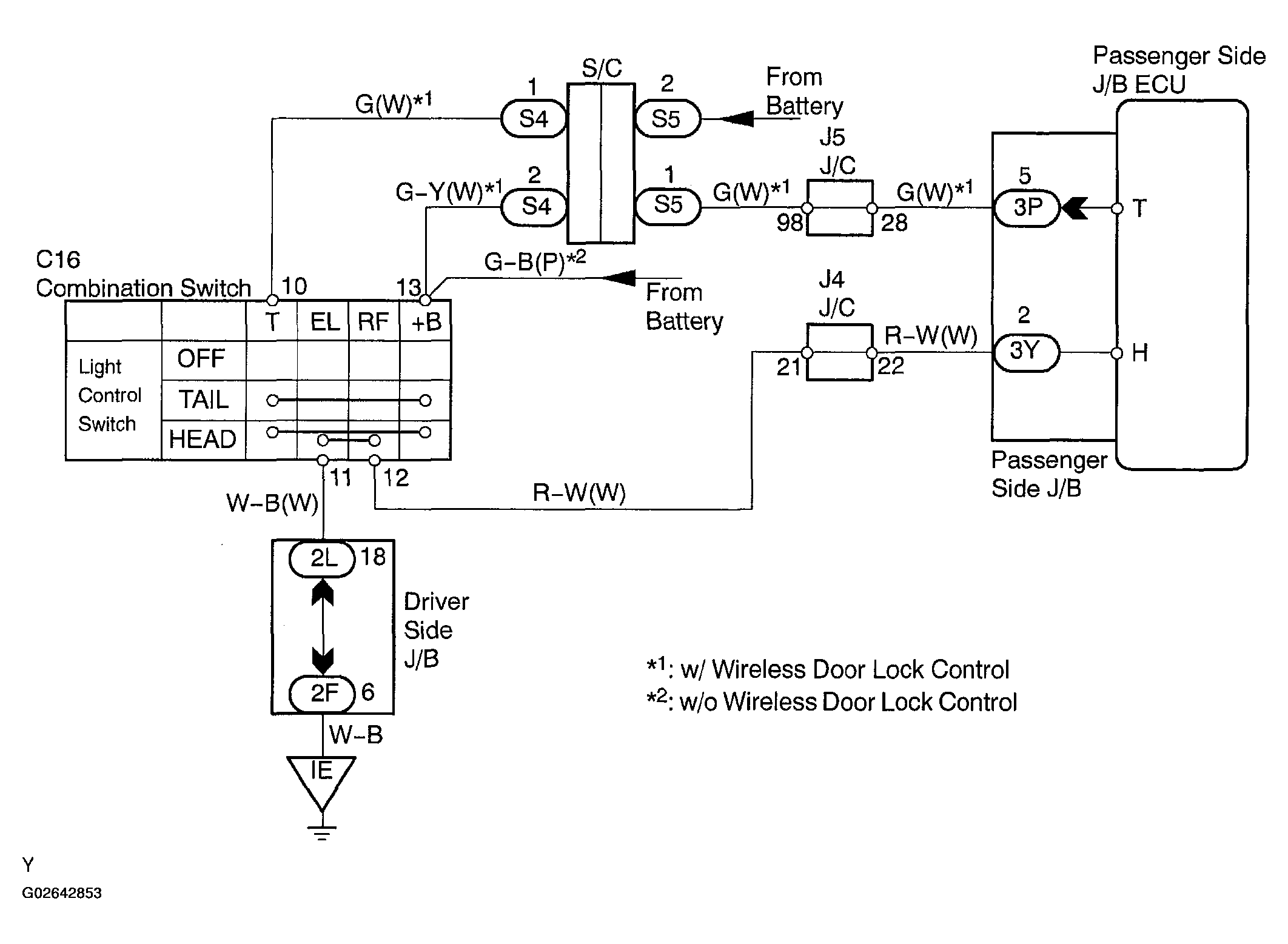

Fig 1: Wiring Diagram - Light Control Switch (W/ Daytime Running Light)
G02642853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
