Combination Meter: Location

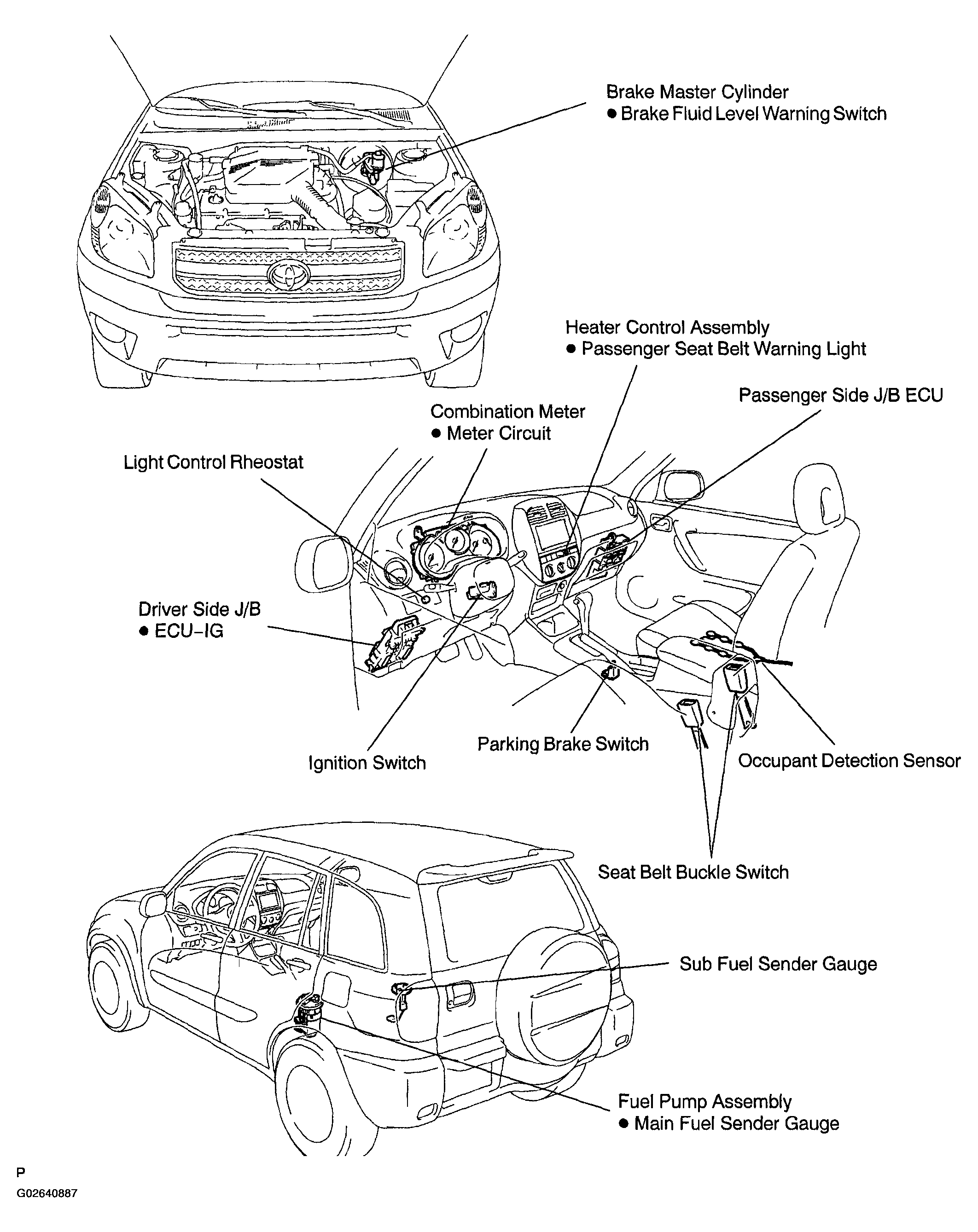

Fig 1: Identifying Component Location Of Combination Meter
G02640887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

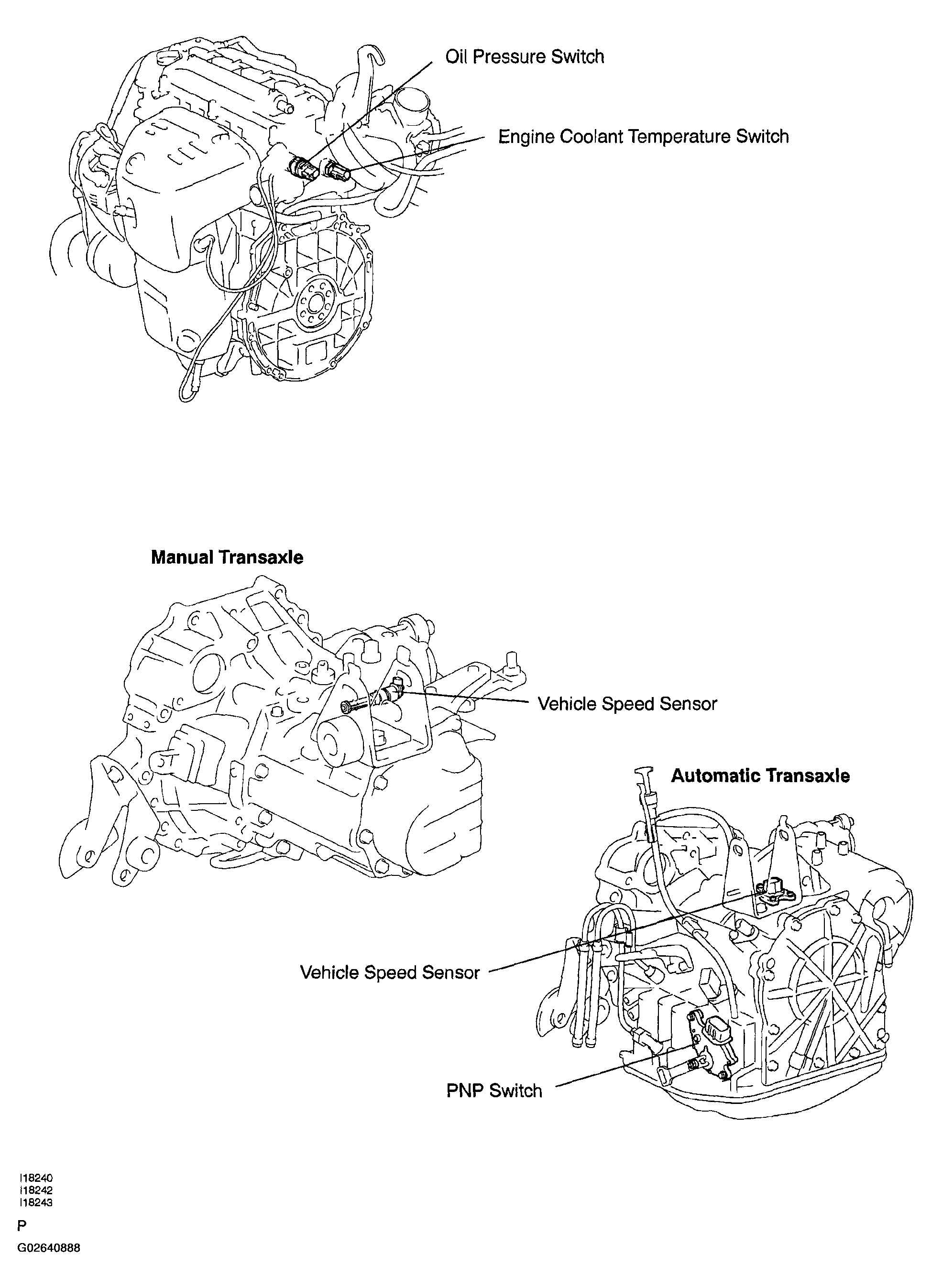

Fig 2: Identifying Engine Compartment Sensors
G02640888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
