Water Pump: Components

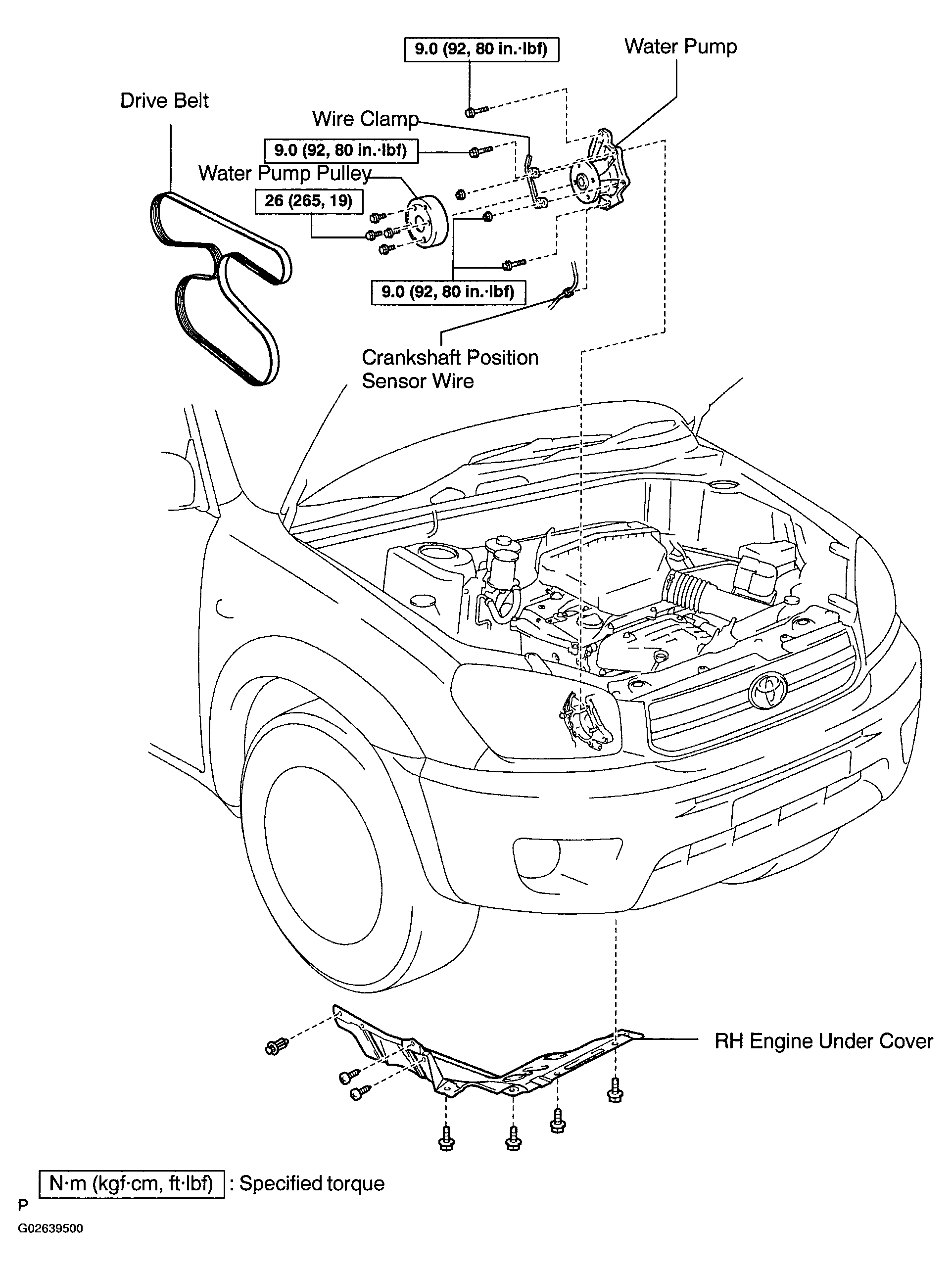

Fig 1: Water Pump Replacement Components With Torque Specifications
G02639500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
