Circuit Description

Refer to circuit description under DTC P0100 MASS OR VOLUME AIR FLOW CIRCUIT MALFUNCTION, DTC P0102 MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT, DTC P0103 MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT .

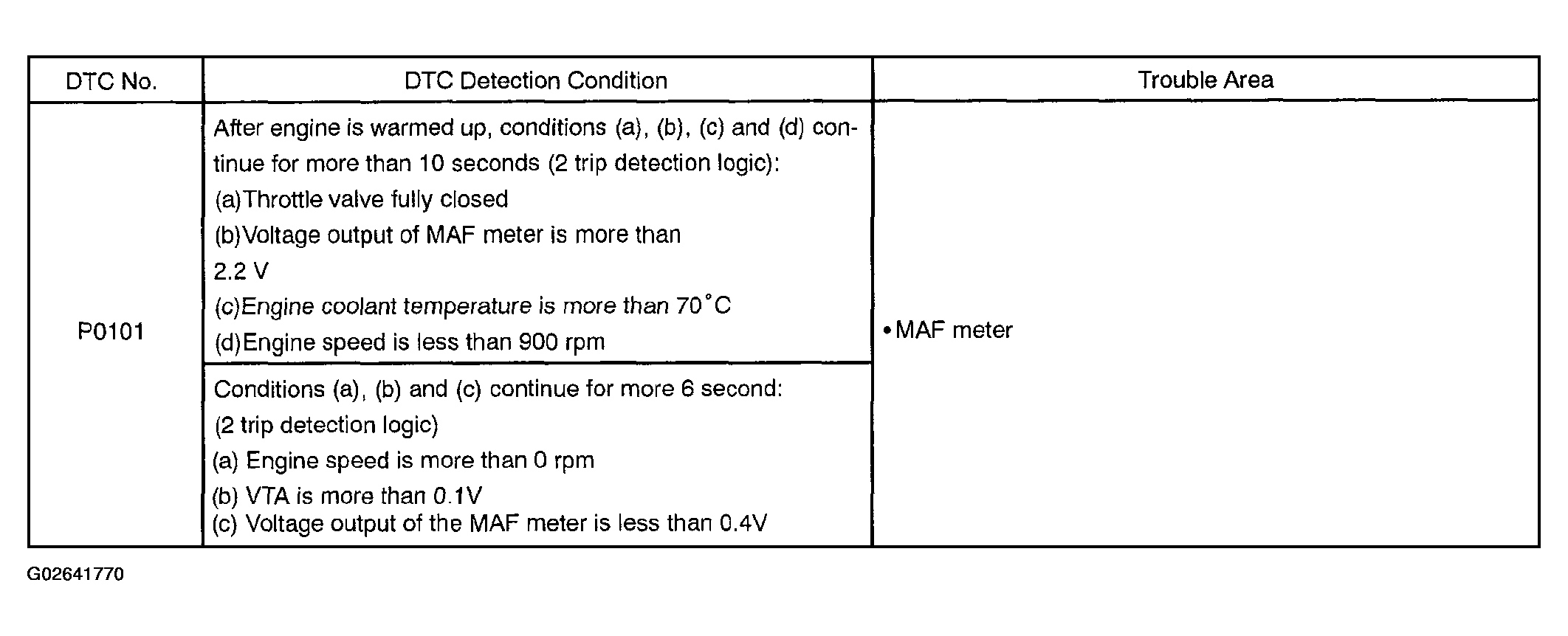

Fig 1: DTC P0101 - DTC Detection Condition Chart
G02641770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
