RAV4 Base, AWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine - Diagnostics
>>
ECM Power Source Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECM Power Source Circuit: Wiring Diagram

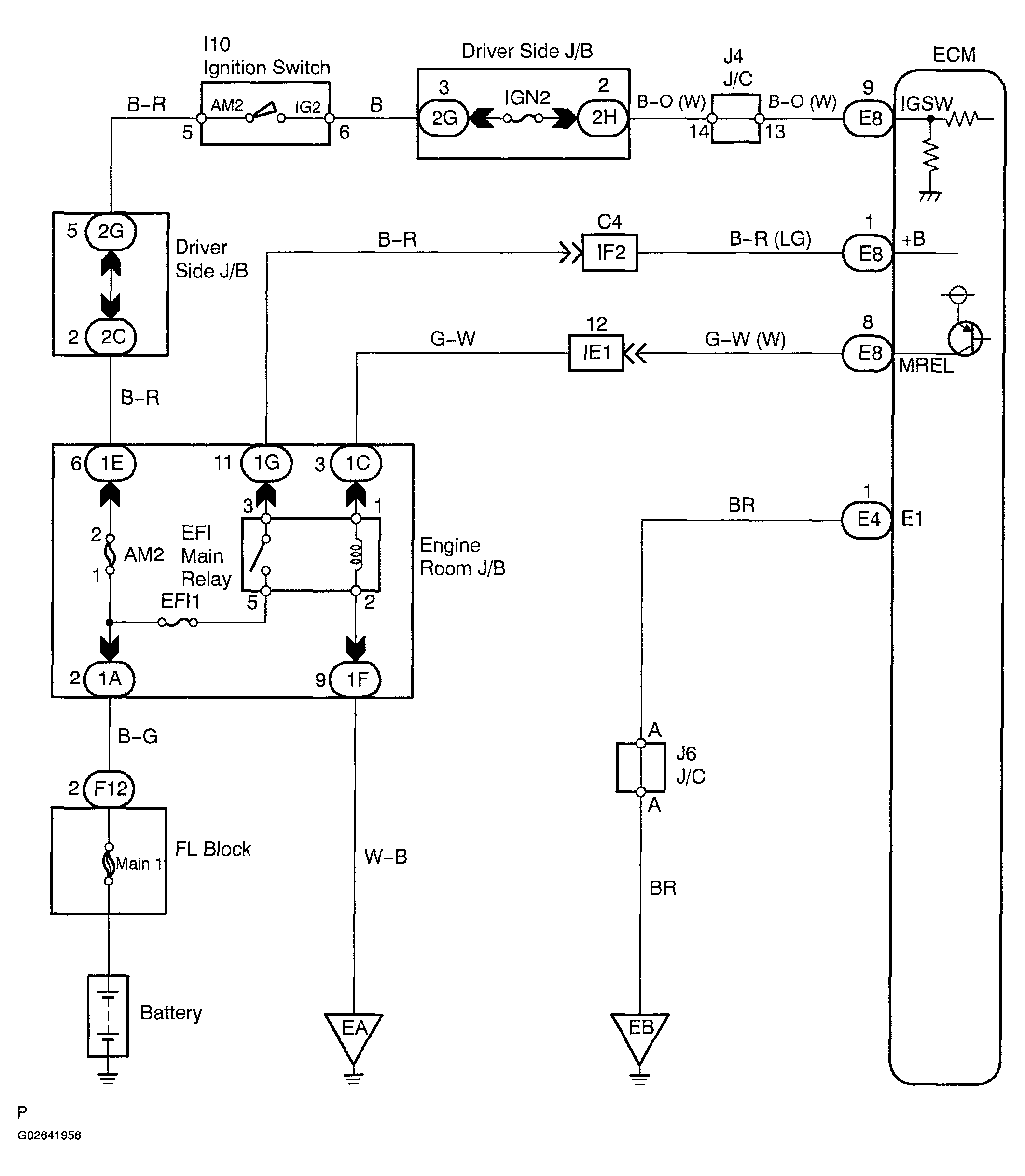

Fig 1: Wiring Diagram - ECM Power Source
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
