Front Axle Hub: Disassembly

1. Remove the cotter pin and nut.
2. Using SST, remove the lower ball joint.

   SST 09628-62011

   Fig 1: Removing Lower Ball Joint Using Special Tool

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, remove the axle hub.

   SST 09520-00031 (09520-00040, 09521-00010, 09521-00020)

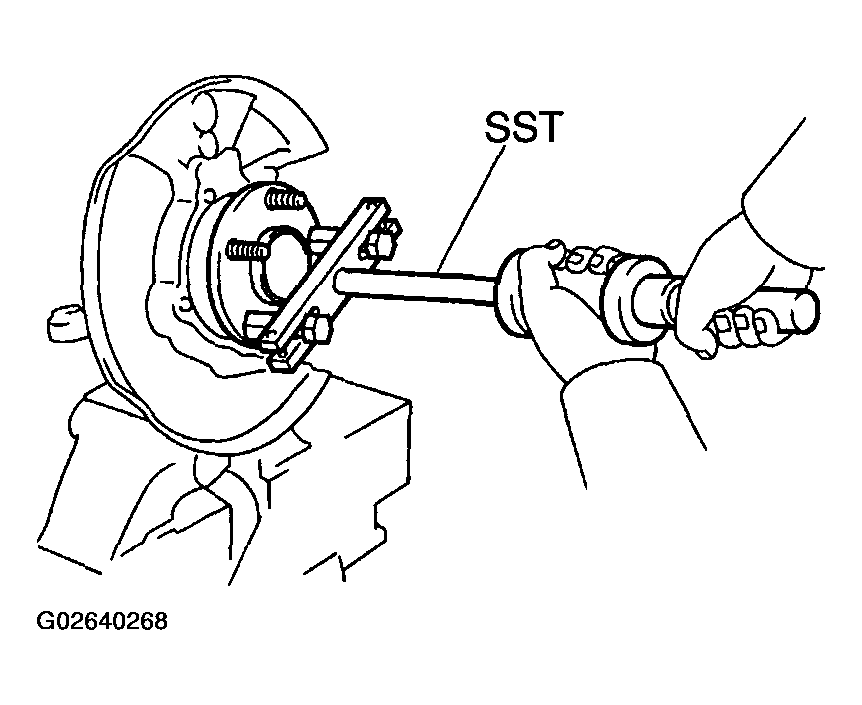

   Fig 2: Removing Axle Hub Using Special Tool

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the inner race (outside) from the axle hub.

   SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00370)

Using a Torx® socket (T30), remove the 4 bolts and dust cover.

1. Using snap ring pliers, remove the snap ring.
2. Place the inner race on the outside of the bearing.
   Fig 3: Removing Snap Ring Using Snap Ring Pliers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, remove the bearing from the steering knuckle.

   SST 09527-17011, 09950-60010 (09951-00540), 09950-70010 (09951-07150)

   Fig 4: Removing Bearing From Steering Knuckle Using Special Tool

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
