Circuit Description

Refer to circuit description under DTC P0120, P0122, P0123, P0220, P0222, P0223, P2135: THROTTLE/PEDAL POSITION SENSOR/SWITCH "A & B" CIRCUIT MALFUNCTION LOW/HIGH INPUT & THROTTLE/PEDAL POSITION SENSOR/SWITCH "A & B" VOLTAGE CORRECTION .

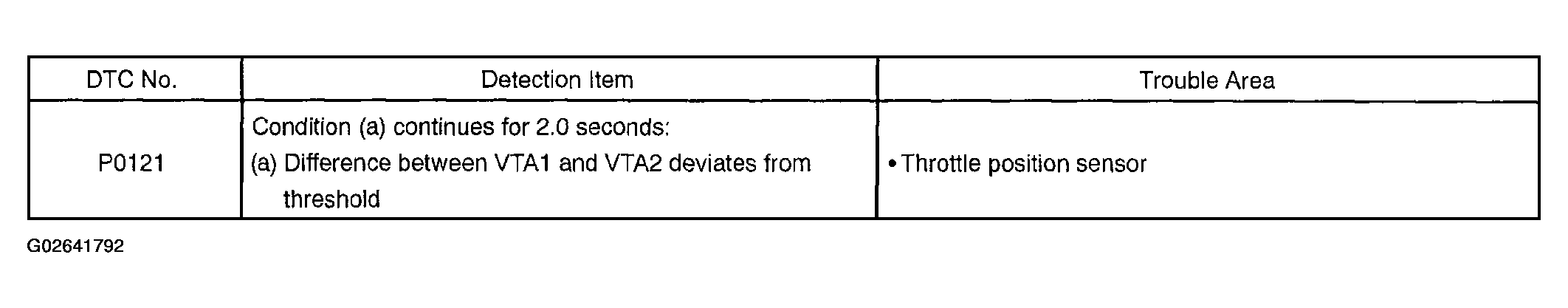

Fig 1: DTC P0121 - DTC Detection Condition Chart
G02641792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
