SFI System (Service Information): Injector: Components

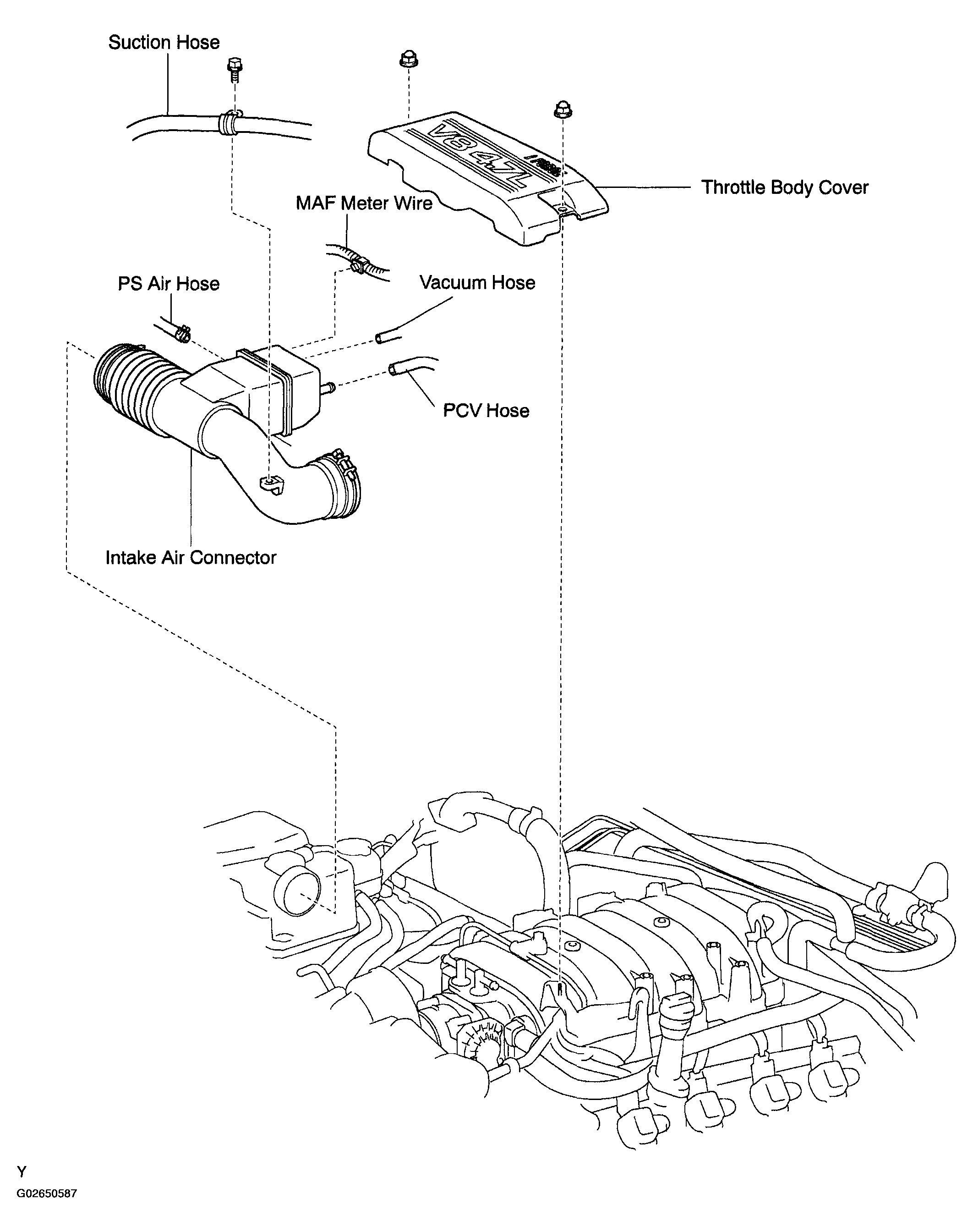

Fig 1: Identifying Engine Components - Injectors (1 Of 2)
G02650587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

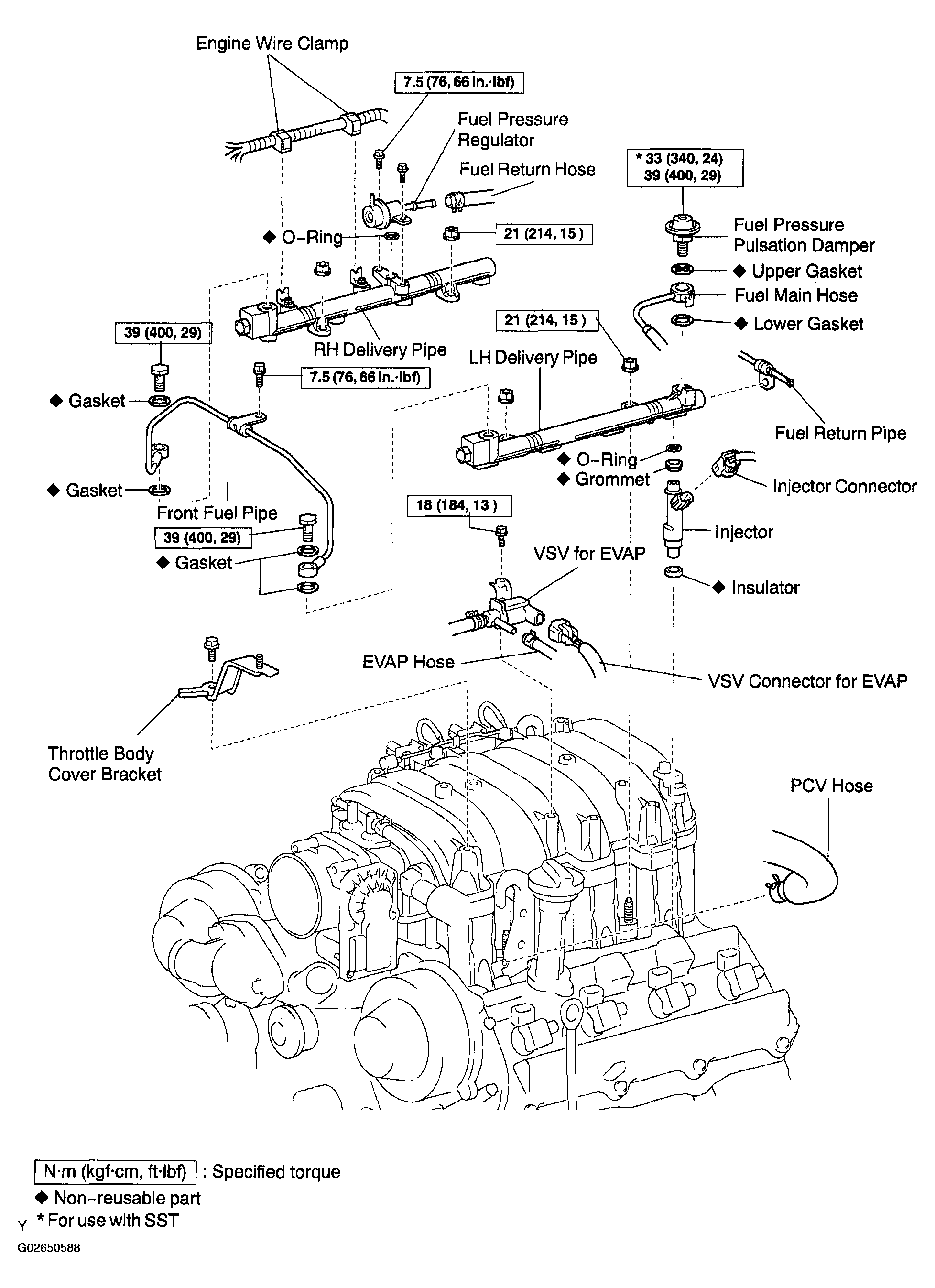

Fig 2: Identifying Engine Components - Injectors (2 Of 2)
G02650588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
