SFI System (Service Information): Injector: Installation

  1. INSTALL INJECTORS AND DELIVERY PIPES
    NOTE:
    • Be careful not to drop the injectors when installing the delivery pipes.
    • Do not apply any load to the injector on horizontal direction.
    1. Install a new grommet to each injector.
    2. Apply a light coat of gasoline to a new O-ring and install it to each injector.

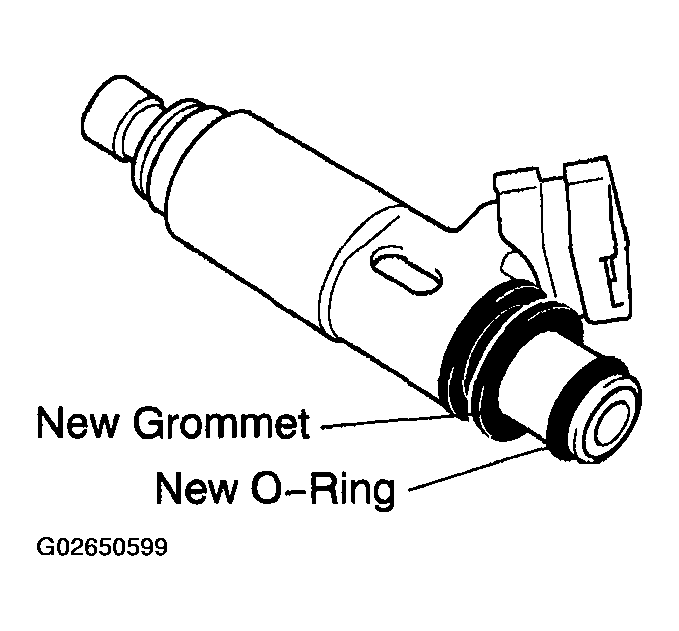

      Fig 1: Applying Light Coat Of Gasoline To O-Ring
      G02650599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. While turning the injector clockwise and counterclockwise, push it to the delivery pipes. Install the 8 injectors.

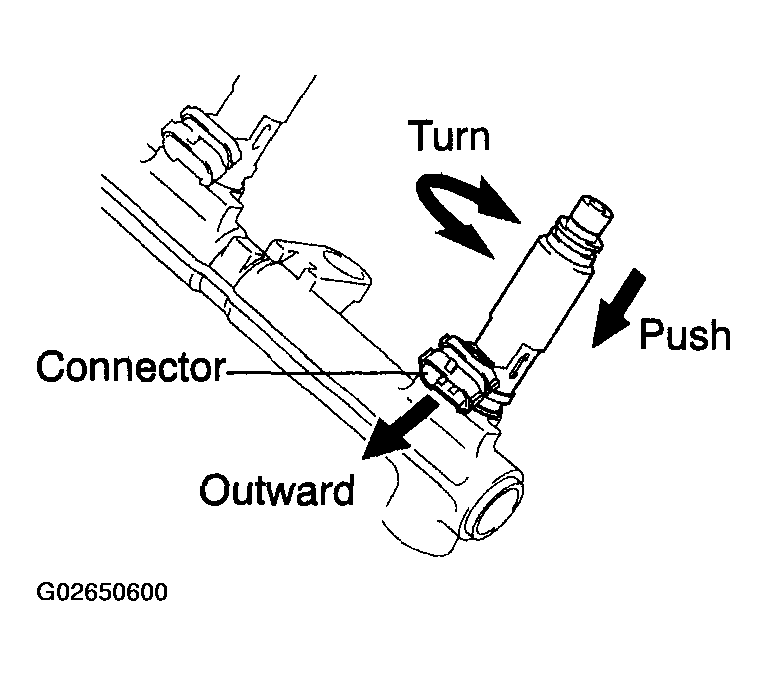

    4. Fig 2: While Turning Injector Push It To Delivery Pipes
      G02650600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Position the injector connector outward.
    6. Place the 8 new insulators on the intake manifold.
    7. Place the 2 delivery pipes and injectors assemblies on the lower intake manifold.
    8. Temporarily install the 4 nuts.
    9. Install the front fuel pipe with the bolt, 4 new gaskets and 2 union bolts.

      Torque:

      39 N.m (400 kgf.cm, 29 ft.lbf) for union bolts

      7.5 N.m (76 kgf.cm, 66 in..lbf) for bolt

    10. Install the bolt holding the clamp on the fuel return pipe to the LH delivery pipe.

      Torque: 7.5 N.m (76 kgf.cm, 66 in..lbf)

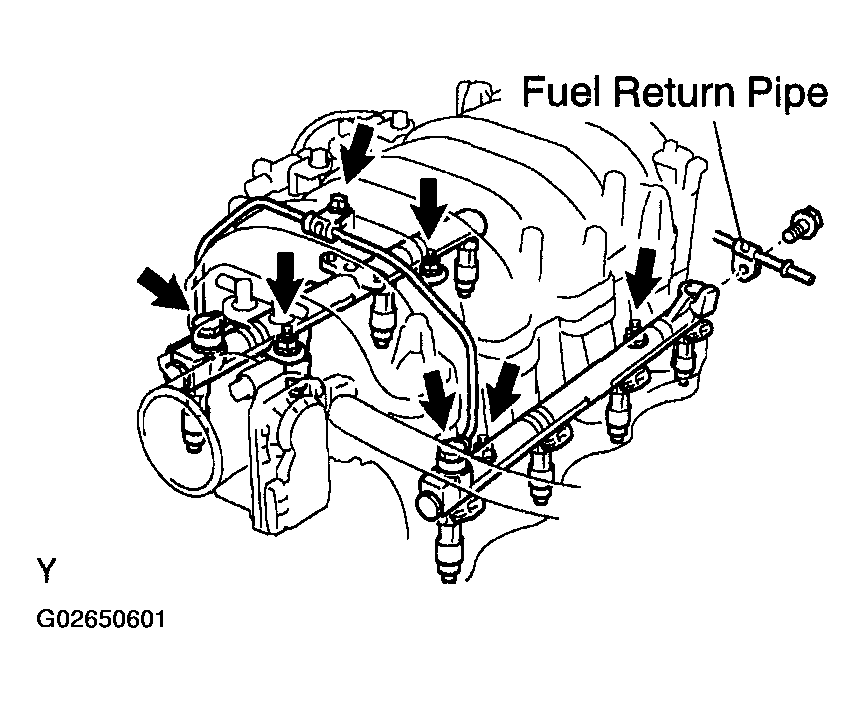

      Fig 3: Installing Front Fuel Pipe
      G02650601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Check that the injectors rotate smoothly.

      HINT:

      If the injectors do not rotate smoothly, the probable cause is incorrect installation of O-rings. Replace the O-ring of the injector that does not rotate smoothly.

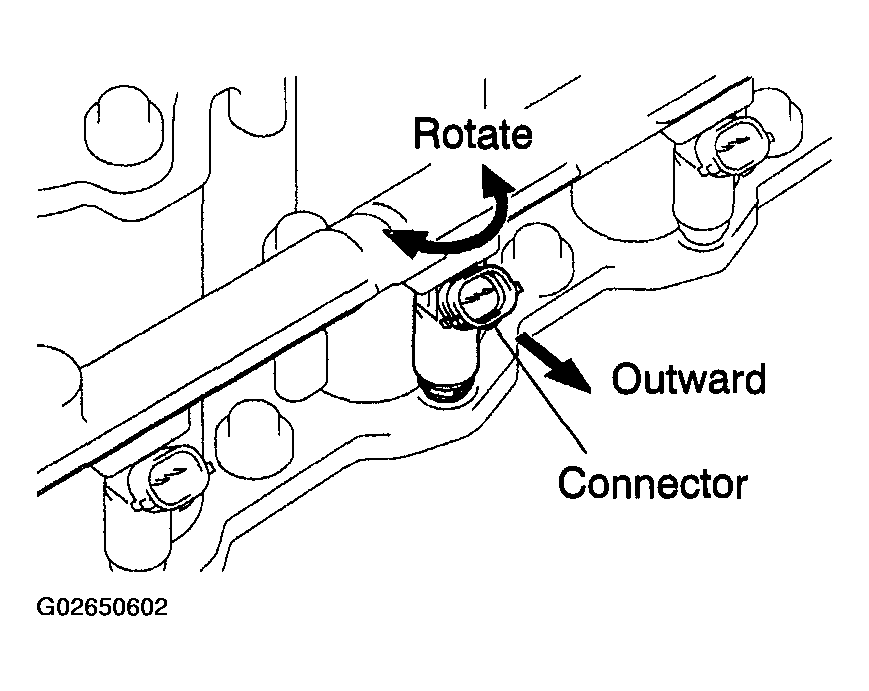

      Fig 4: Checking That Injectors Rotate Smoothly
      G02650602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Position injector connector outward.
    13. Tighten the 4 nuts holding the delivery pipes to the lower intake manifold.

      Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

    14. Connect the 8 injector connectors.
  2. INSTALL ENGINE WIRES
    1. Install the 2 wire clamps on the engine wire to the brackets on the RH delivery pipe.

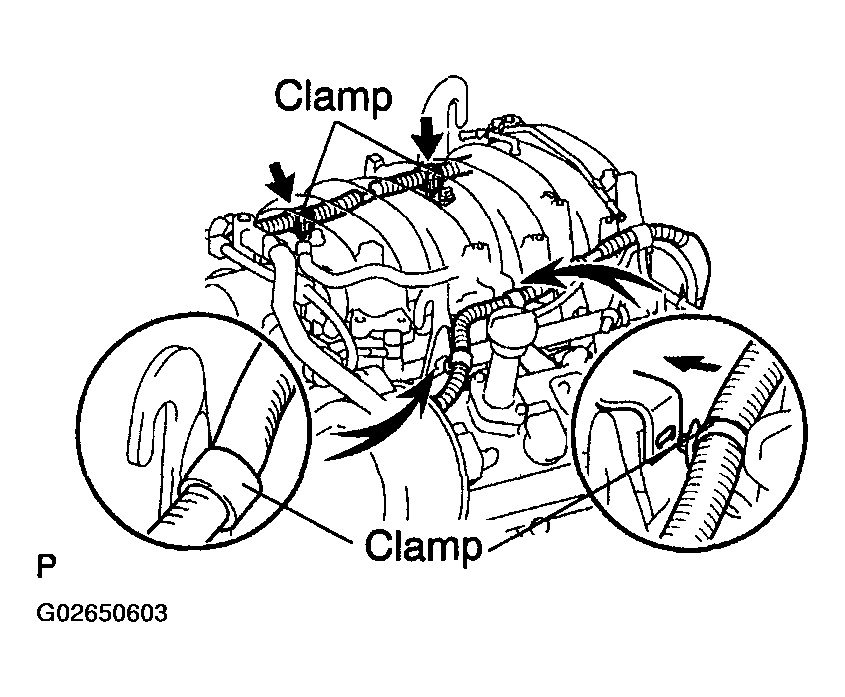

    2. Fig 5: Installing Wire Clamps On Engine Wire
      G02650603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the engine wire clamps to the No.1 engine hanger and engine wire bracket.
    4. Install the engine wire protector with the 2 bolts.
  3. CONNECT PCV HOSE TO PCV VALVE
  4. CONNECT VSV FOR EVAP TO UPPER INTAKE MANIFOLD
    1. Install the VSV for the EVAP to the upper intake manifold.

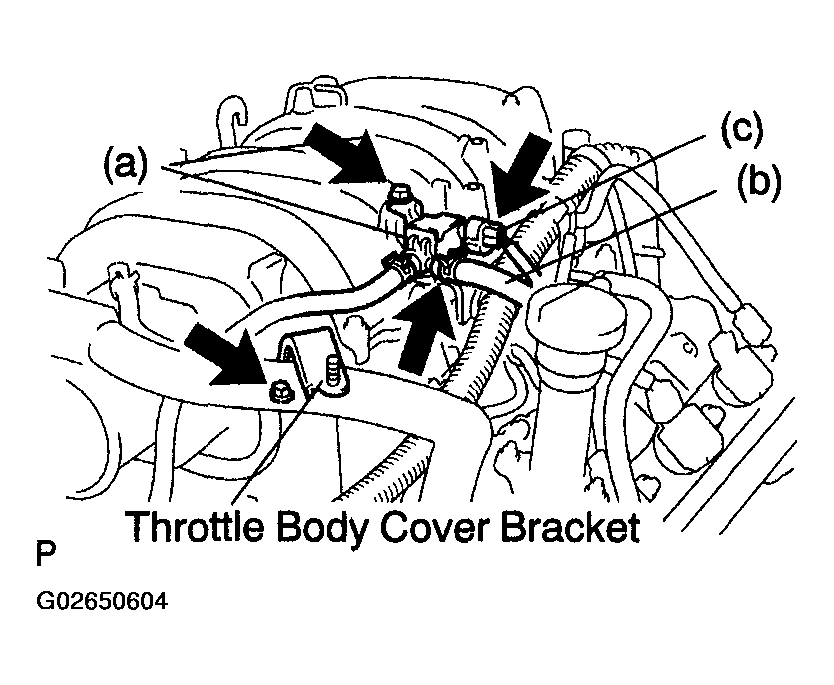

    2. Fig 6: Installing VSV For EVAP To Upper Intake Manifold
      G02650604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the EVAP hose.
    4. Connect the VSV connector for the EVAP.
  5. INSTALL THROTTLE BODY COVER BRACKET

    Install the throttle body cover bracket with the bolt.

  6. INSTALL FUEL PRESSURE PULSATION DAMPER (See  SFI SYSTEM  )
  7. INSTALL INTAKE AIR CONNECTOR
  8. INSTALL THROTTLE BODY COVER
