VVT Sensor: Inspection

NOTE: "Cold" and "Hot" in these sentences express the temperature of the sensors themselves. "Cold" is from - 10° C (14° F) to 50° C (122 °F) and "Hot" is from 50° C (122° F) to 100° C (212° F).
  1. REMOVE THROTTLE BODY COVER
  2. REMOVE INTAKE MANIFOLD ASSEMBLY (See  REMOVAL  )
  3. INSPECT VVT SENSOR RESISTANCE

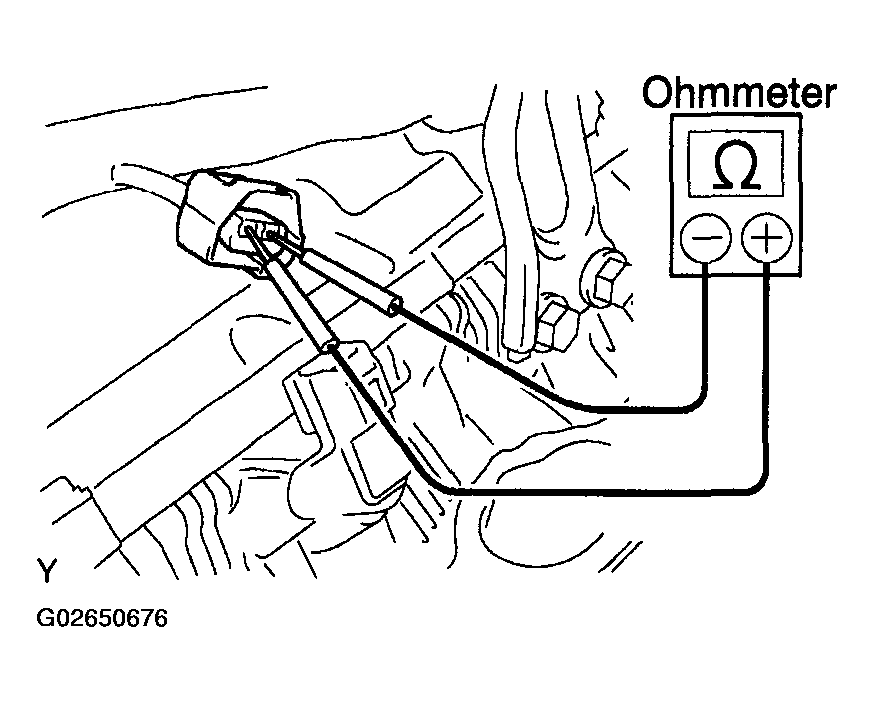

    Fig 1: Inspecting VVT Sensor Resistance
    G02650676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the VVT sensor connector.
    2. Using an ohmmeter, measure the resistance between the terminals.

      Resistance:

      RESISTANCE REFERENCE

      Cold 835 to 1,400 Ω
      Hot 1,060 to 1,645 Ω

      If the resistance is not as specified, replace the sensor.

    3. Reconnect the VVT sensor connector.
    4. Connect the VVT sensor connector.
  4. REINSTALL INTAKE MANIFOLD ASSEMBLY (See  INSTALLATION  )
  5. REINSTALL THROTTLE BODY COVER
