Back Window ASSY: Components

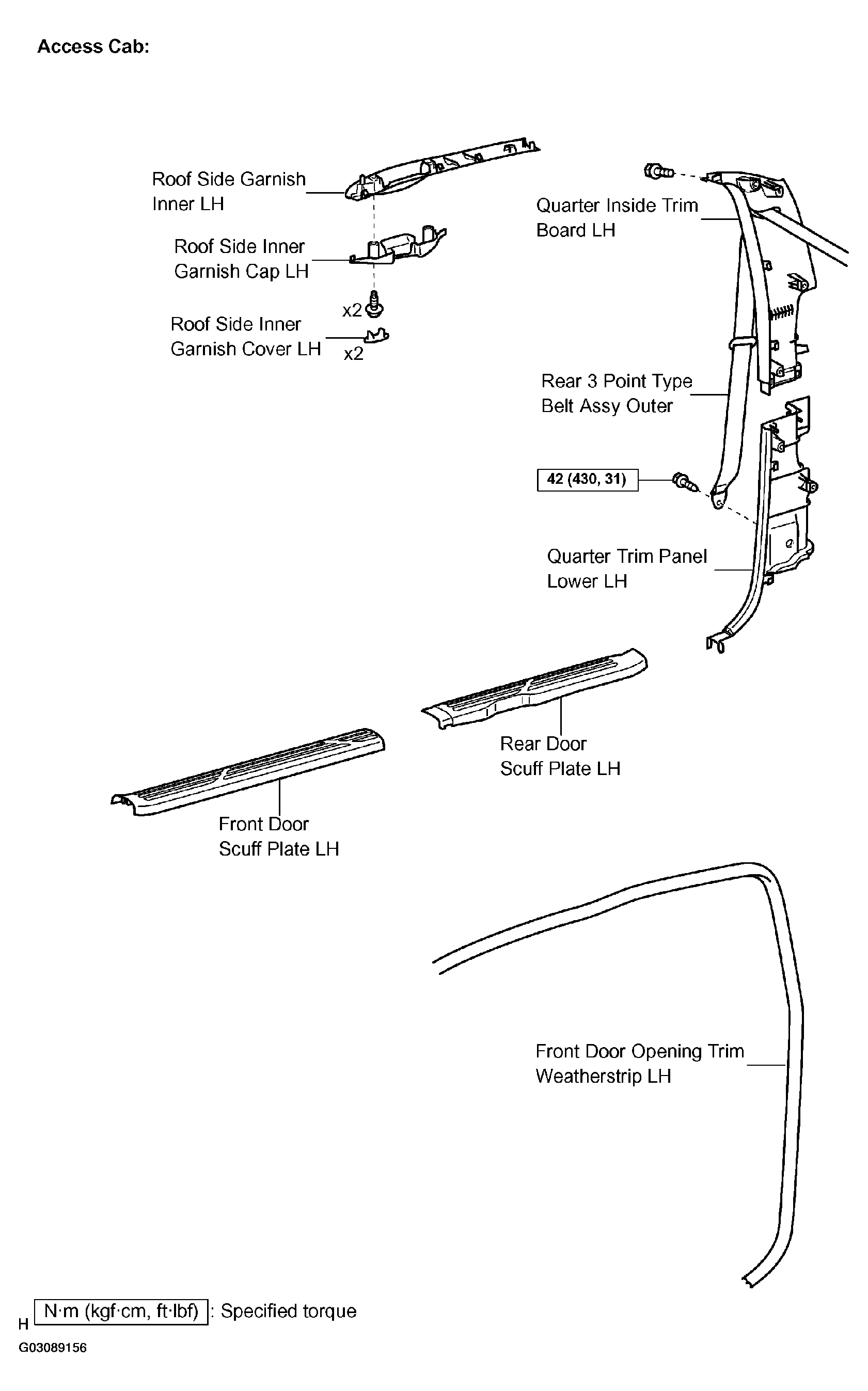

Fig 1: Identifying Back Window Assy Replacement Components (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

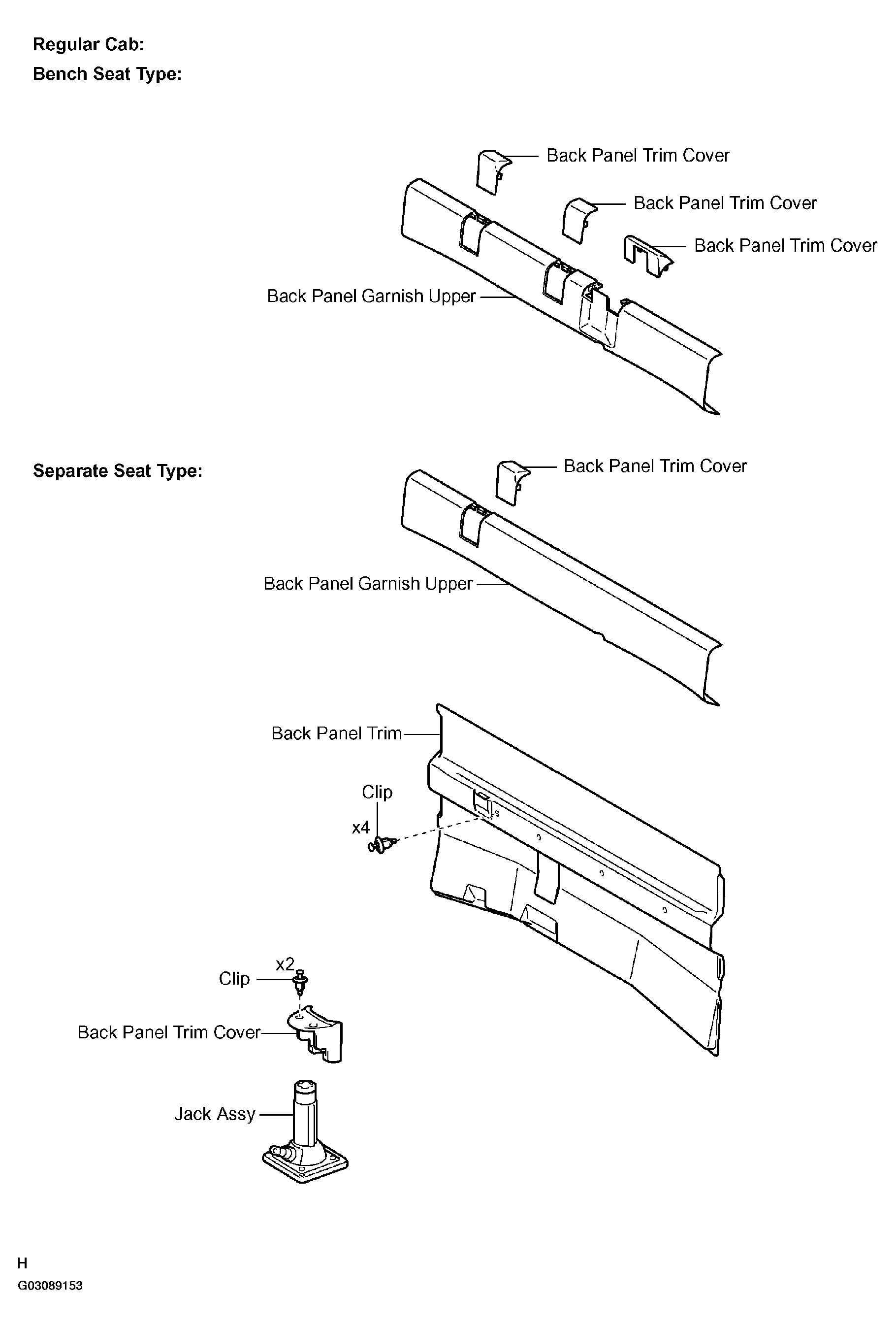

Fig 2: Identifying Back Window Assy Replacement Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

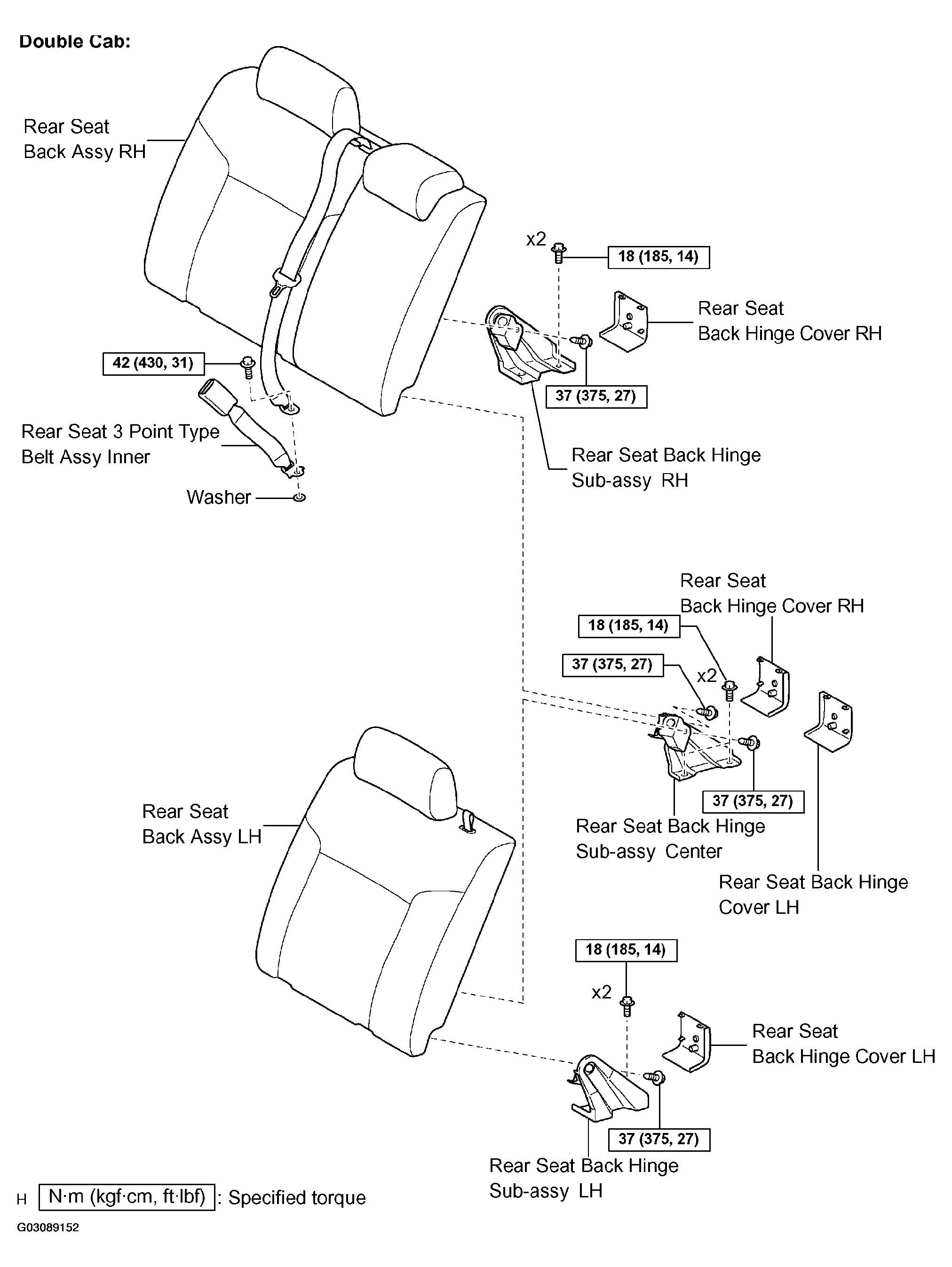

Fig 3: Identifying Back Window Assy Replacement Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

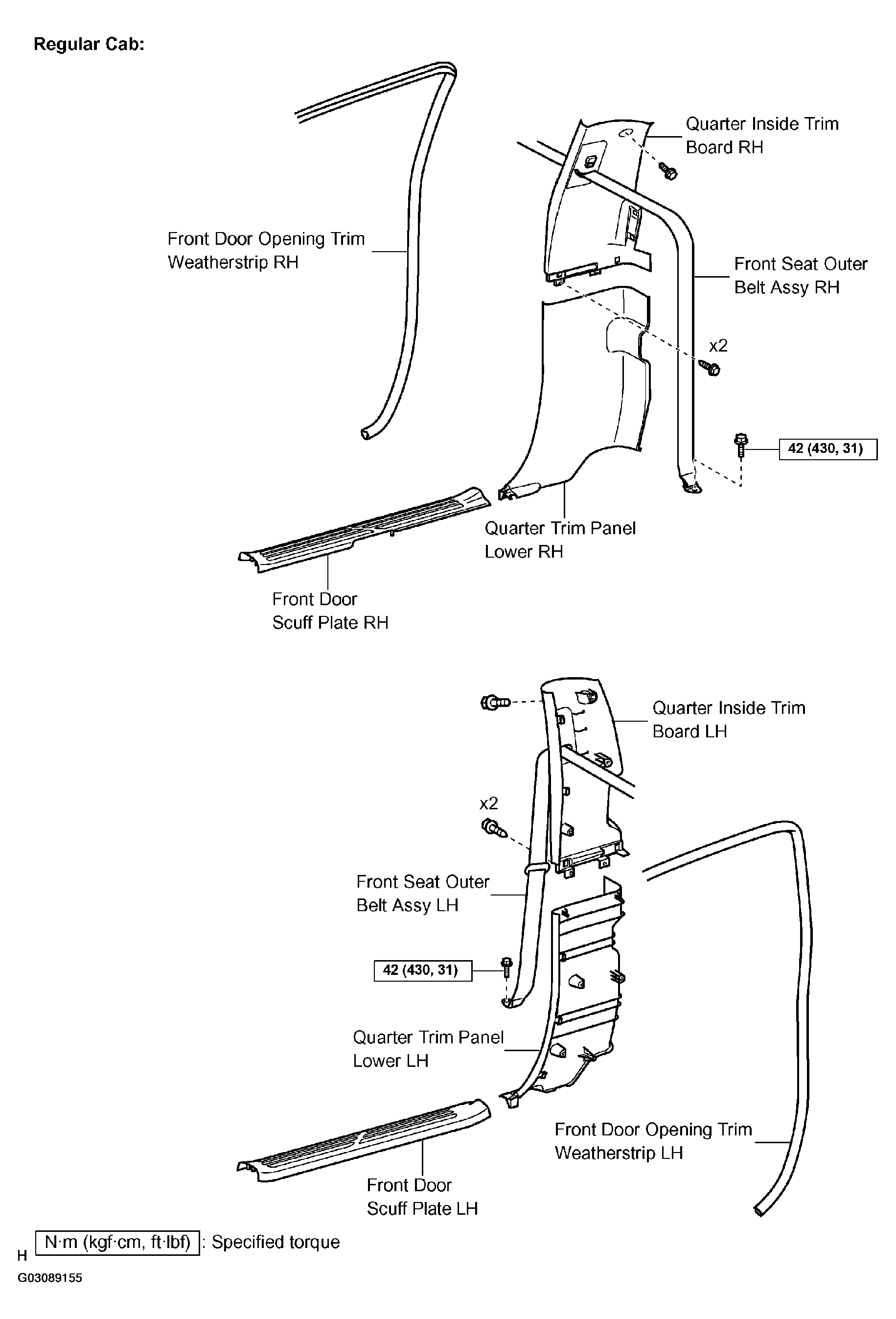

Fig 4: Identifying Back Window Assy Replacement Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

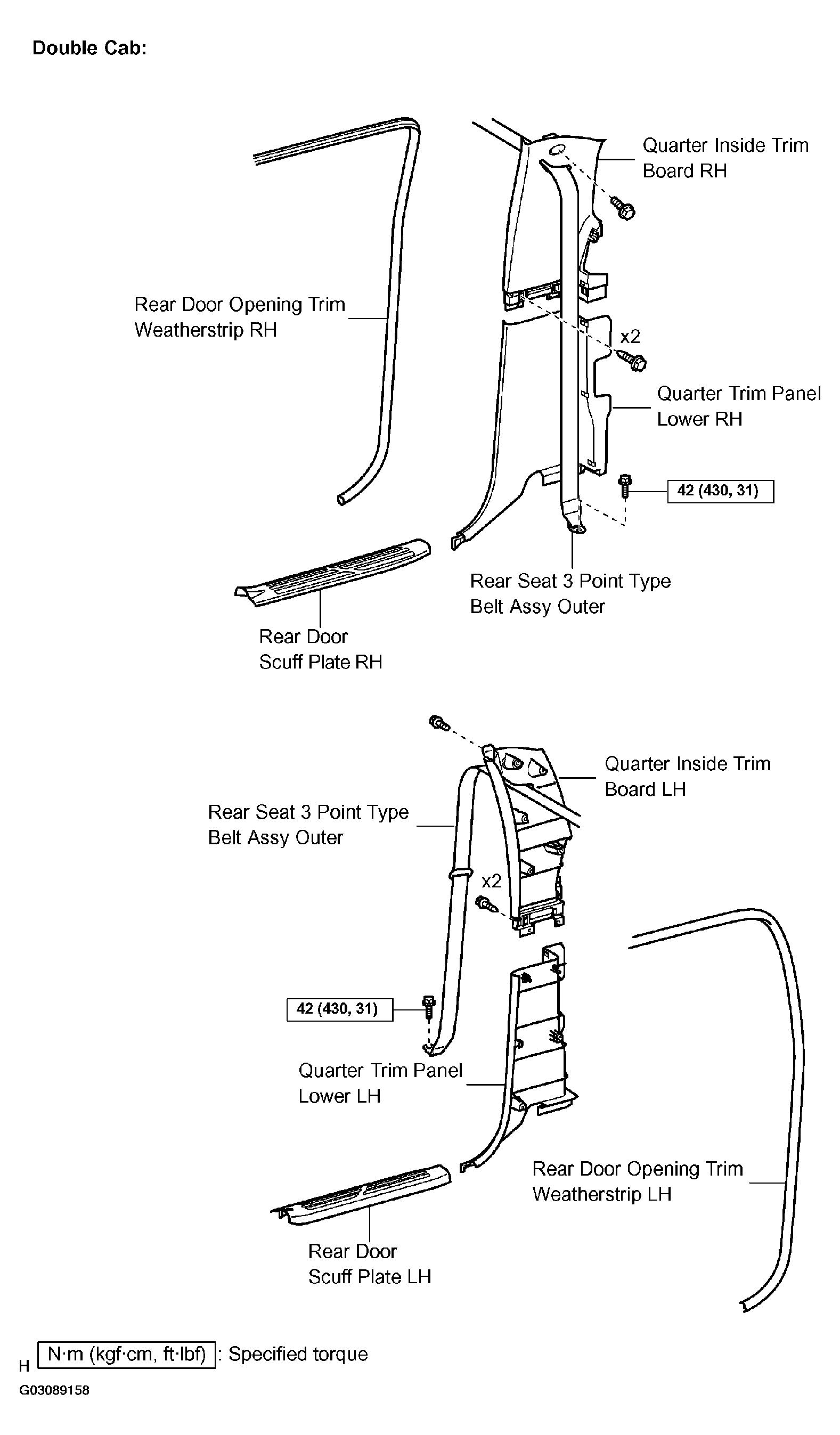

Fig 5: Identifying Back Window Assy Replacement Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

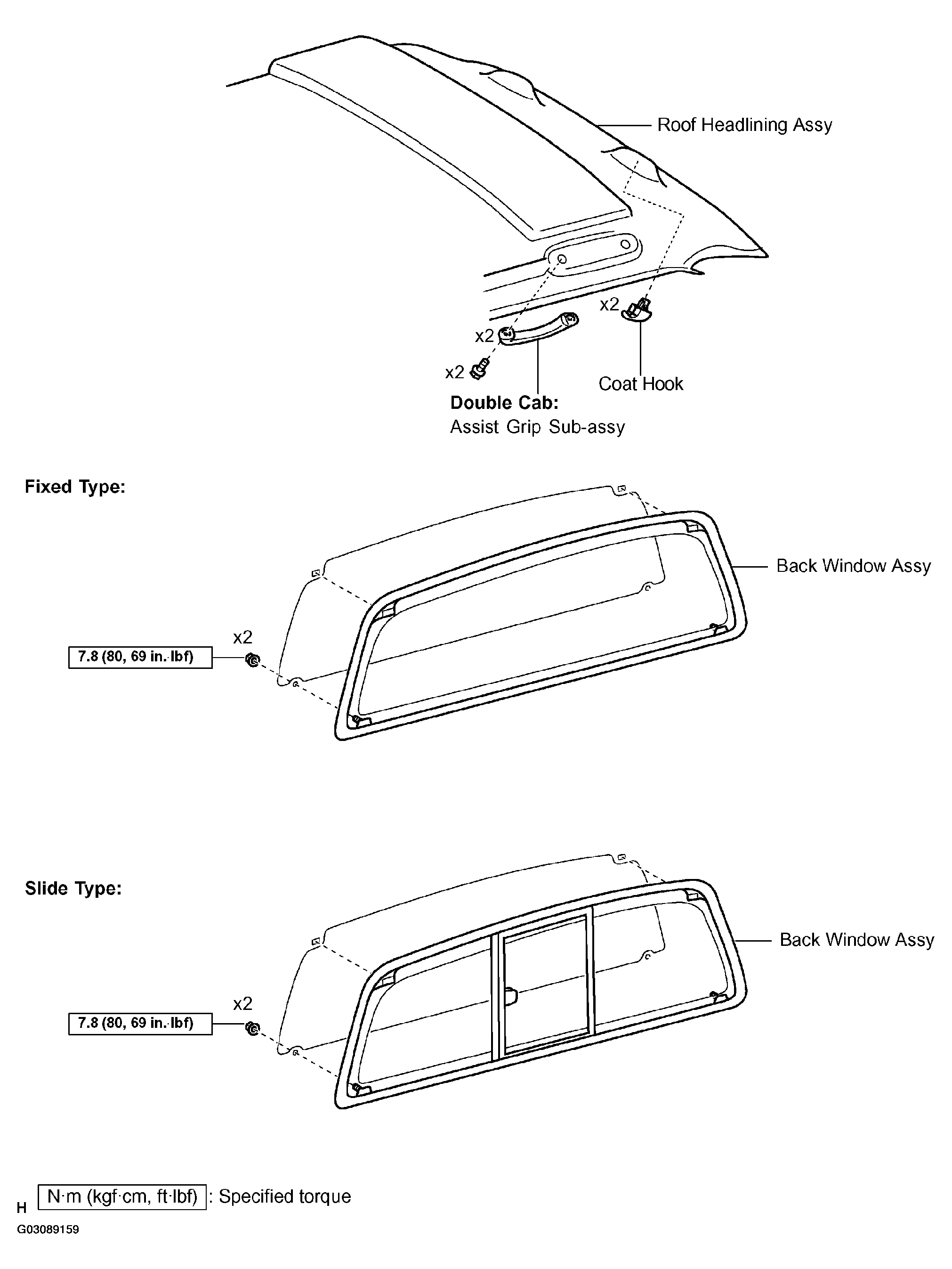

Fig 6: Identifying Back Window Assy Replacement Components (6 Of 8)

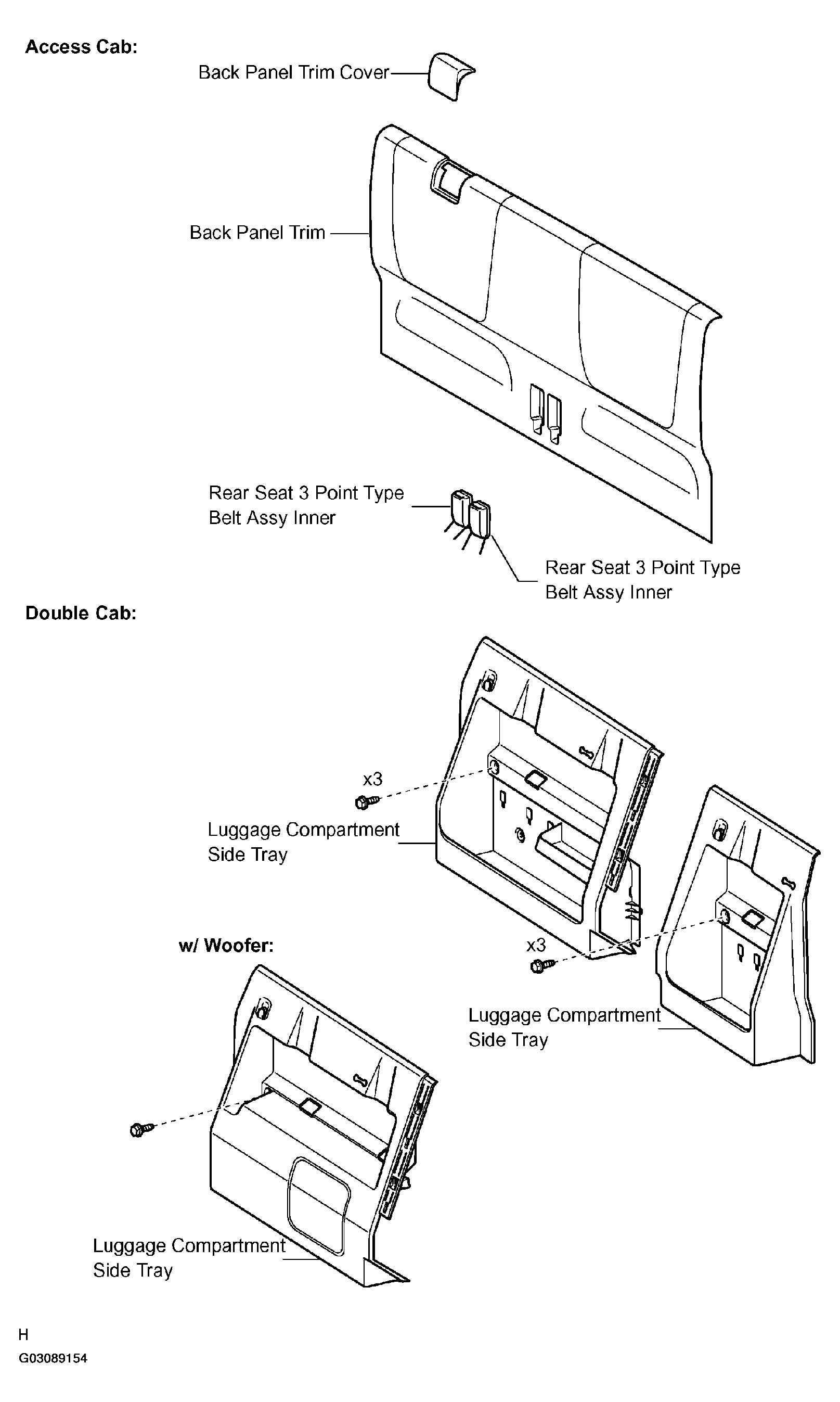

Fig 7: Identifying Back Window Assy Replacement Components (7 Of 8)

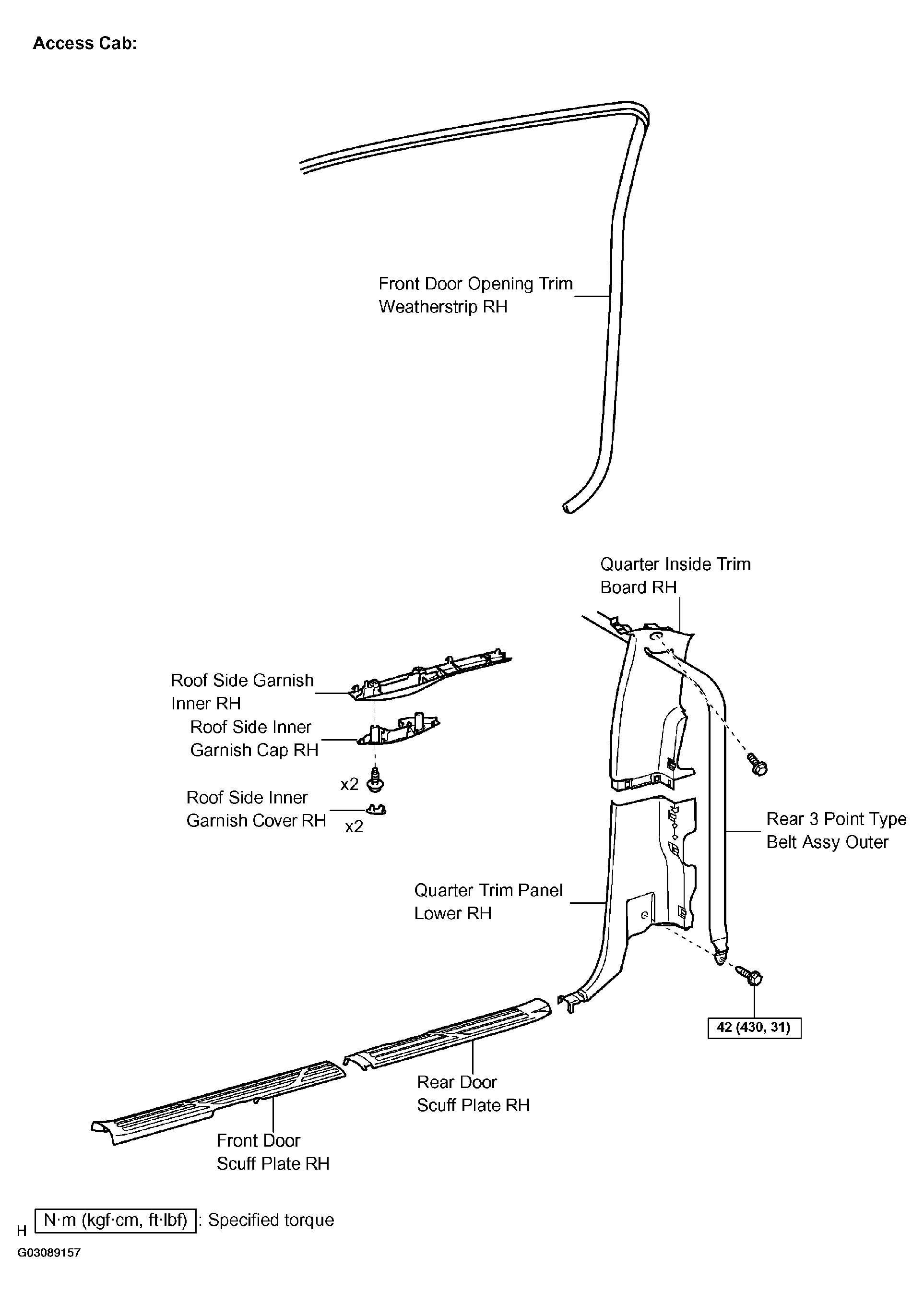

Fig 8: Identifying Back Window Assy Replacement Components (8 Of 8)
