Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

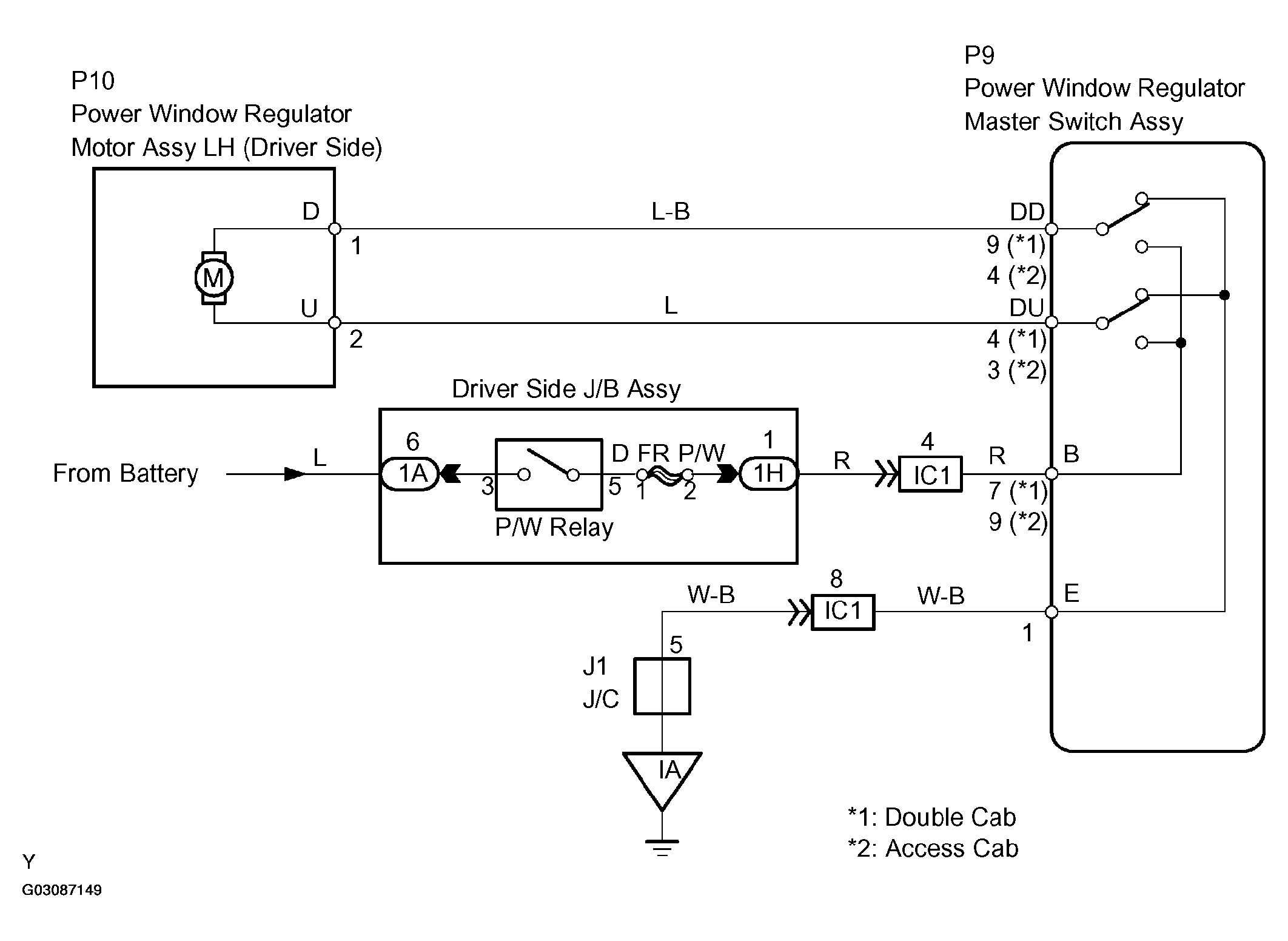

Fig 1: Manual UP/DOWN Function Does Not Operate On Driver Side - Wiring Diagram
G03087149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
