Remote Up/Down Function Does Not Operate: Wiring Diagram

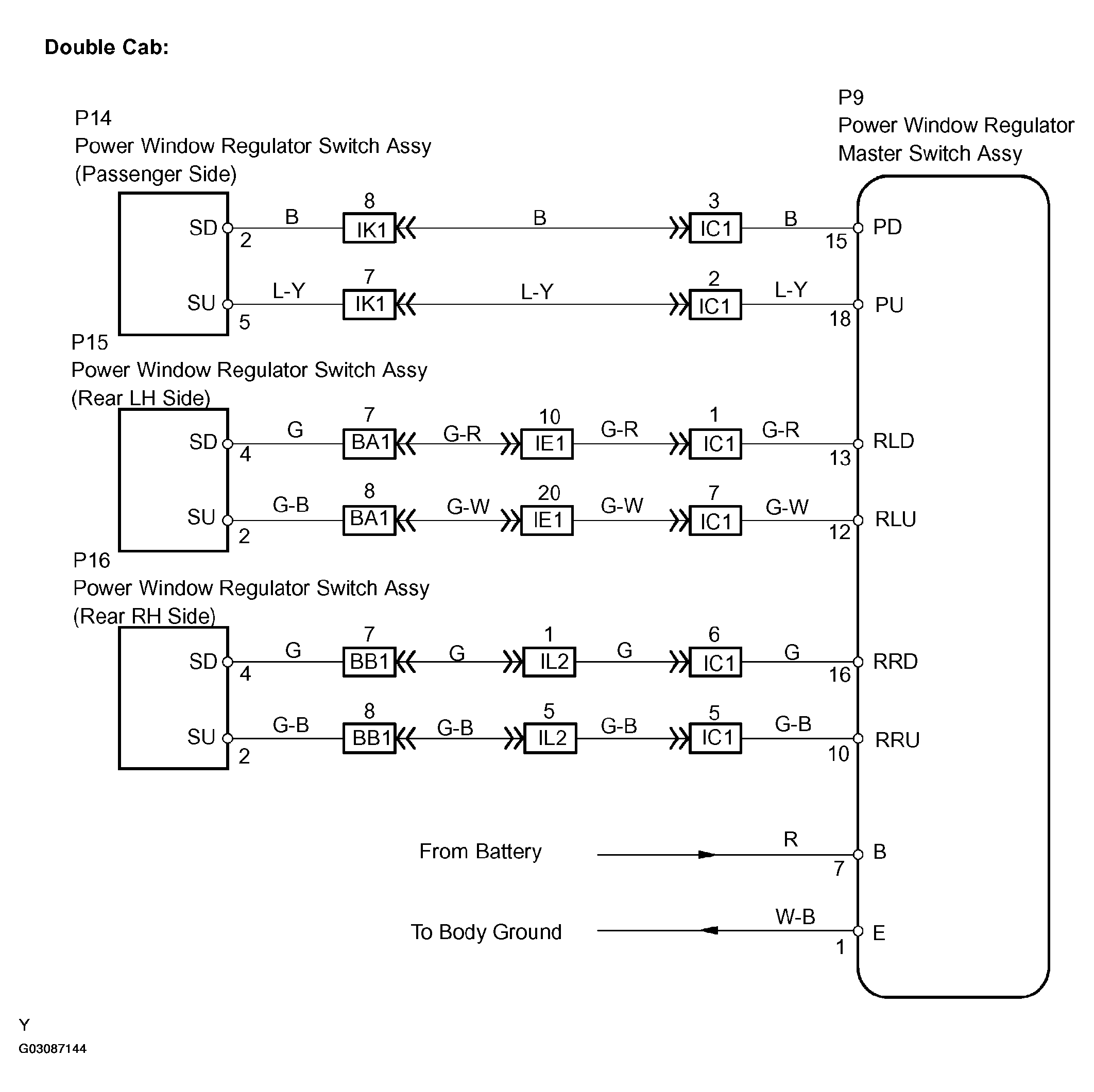

Fig 1: Power Window Regulator Motor Diagram - Double Cab
G03087144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

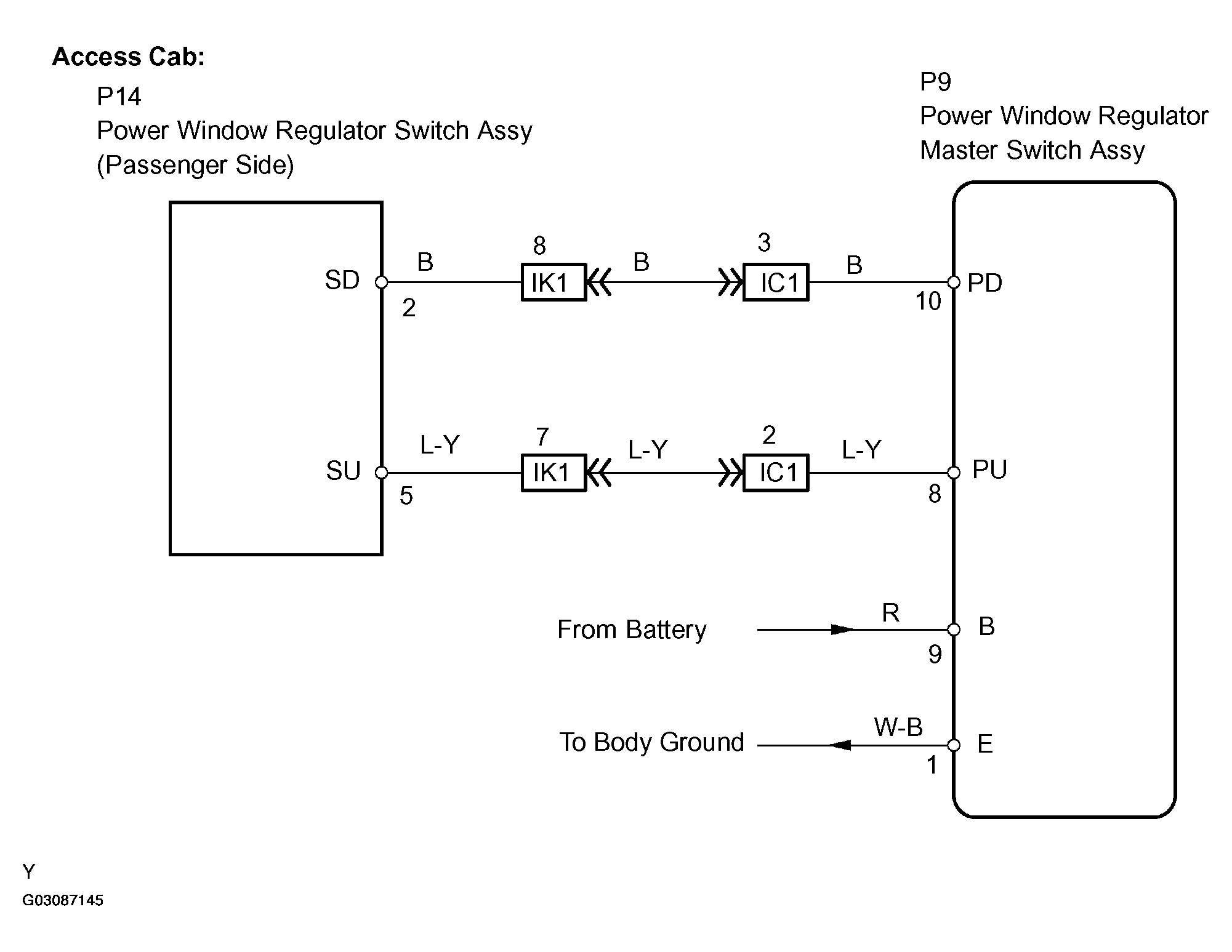

Fig 2: Power Window Regulator Motor Diagram - Acess Cab
G03087145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
