Intake Air Flow Meter Sub-Assy (1GR-FE): Replacement

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE V-BANK COVER (See REPLACEMENT )
REMOVE INTAKE AIR FLOW METER SUB-ASSY
1. Disconnect the connector.
2. Remove the 2 screws, then remove the mass air flow meter.

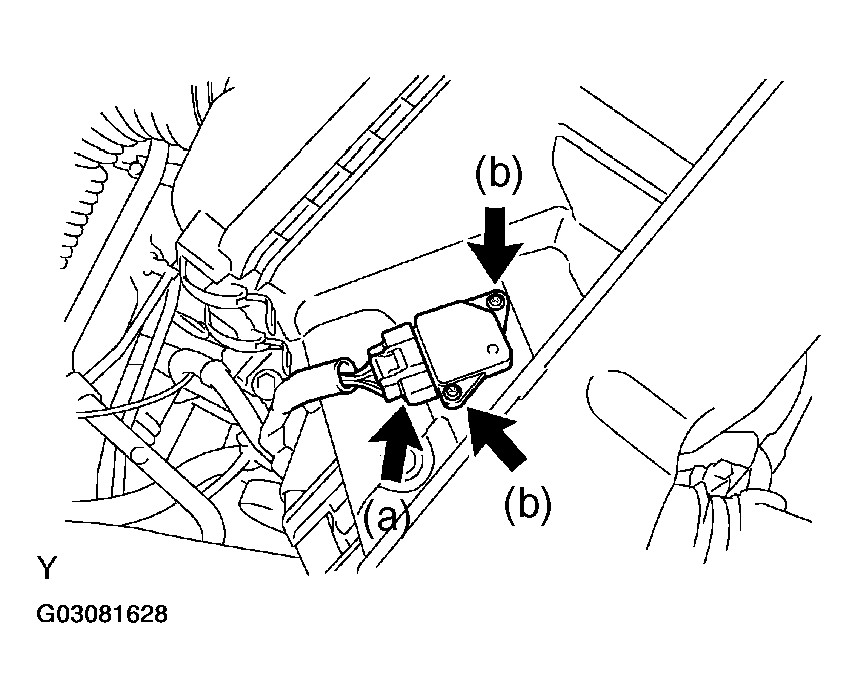

  Fig 1: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR FLOW METER SUB-ASSY
INSTALL V-BANK COVER (See REPLACEMENT )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See PRECAUTION )
Torque: 3.9 N.m (40 kgf.cm, 35 in..lbf)
