Knock Control Sensor, Intake Manifold (2TR-FE): Replacement

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE ENGINE UNDER COVER SUB-ASSY NO.1 (PRE RUNNER AND 4WD TYPE)
  3. DRAIN ENGINE COOLANT  (See REPLACEMENT )
  4. REMOVE INTAKE AIR CONNECTOR  (See REPLACEMENT  )
  5. REMOVE THROTTLE W/MOTOR BODY ASSY  (See REPLACEMENT  )
  6. DISCONNECT FUEL HOSE  (See REPLACEMENT )
  7. DISCONNECT FUEL HOSE NO.2  (See REPLACEMENT )
  8. REMOVE INTAKE MANIFOLD
    1. Disconnect the fuel vapor feed hose from the VSV.
      Fig 1: Disconnecting Fuel Vapor Feed Hose From VSV
      G03081568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum hose.

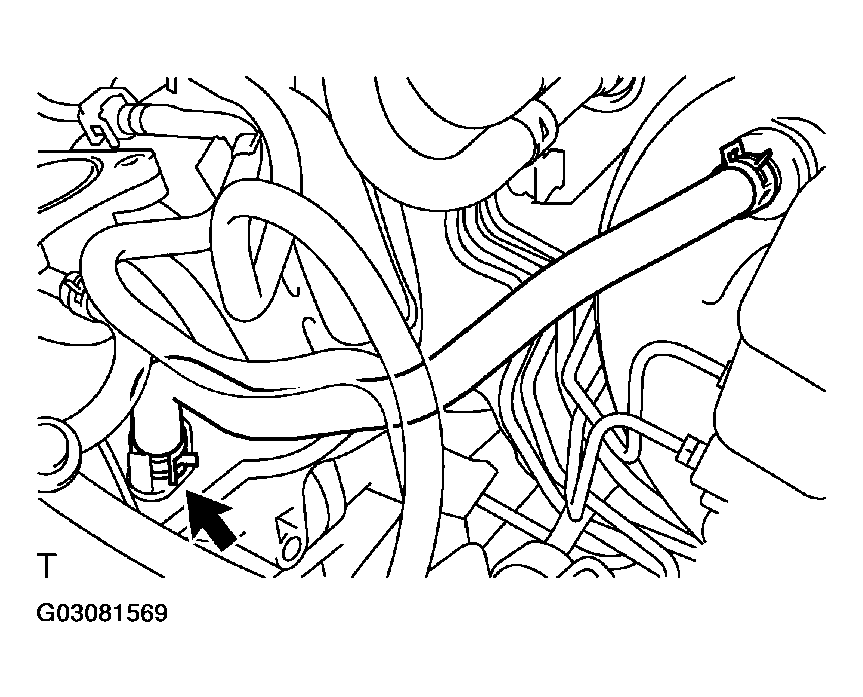

      Fig 2: Disconnecting Vacuum Hose
      G03081569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt, then remove the clamp bracket.

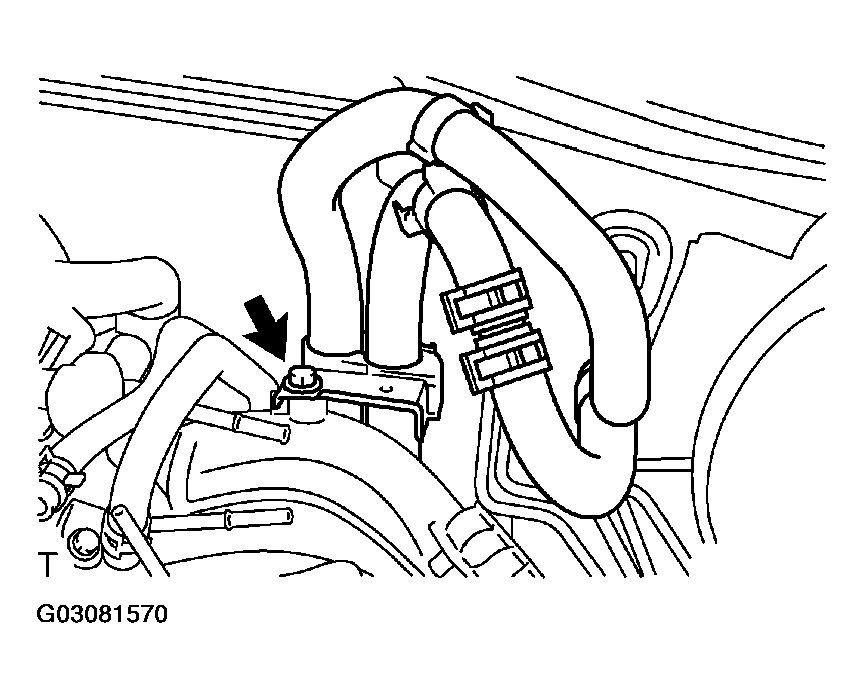

      Fig 3: Removing Bolt And Clamp Bracket
      G03081570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the water bypass hose No. 2.
      Fig 4: Disconnecting Water By-Pass Hose No.2
      G03081571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the ventilation hose No. 3.

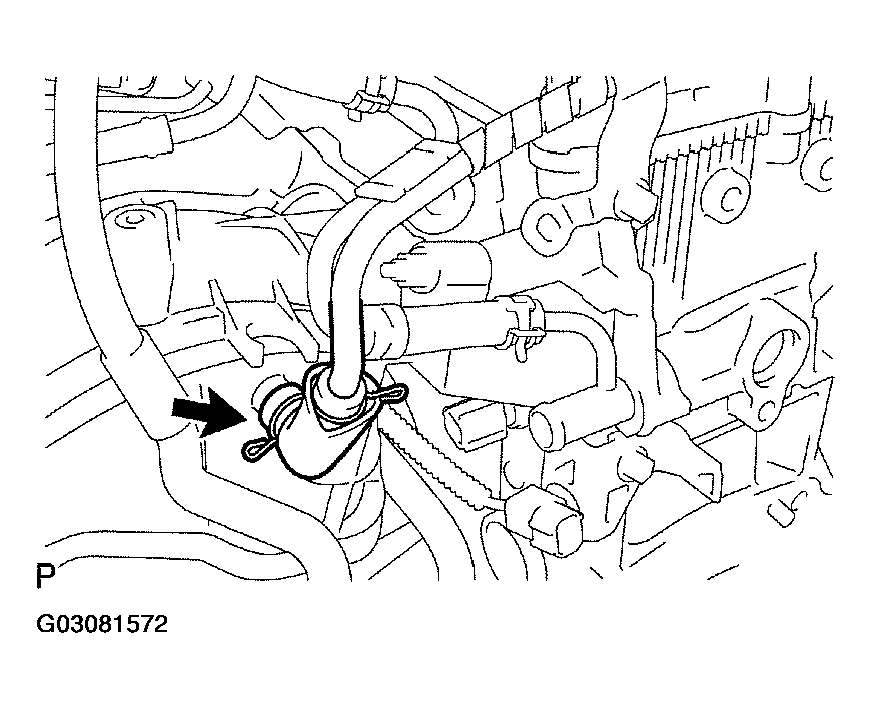

      Fig 5: Disconnecting Ventilation Hose No.2
      G03081572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the VSV connector.
    7. Disengage the engine wire harness clamp.
    8. Disconnect the compressor magnetic clutch connector.

      (w/AIR CONDITIONING)

    9. Disengage the wire harness clamp.
    10. Remove the bolt and harness clamp bracket.

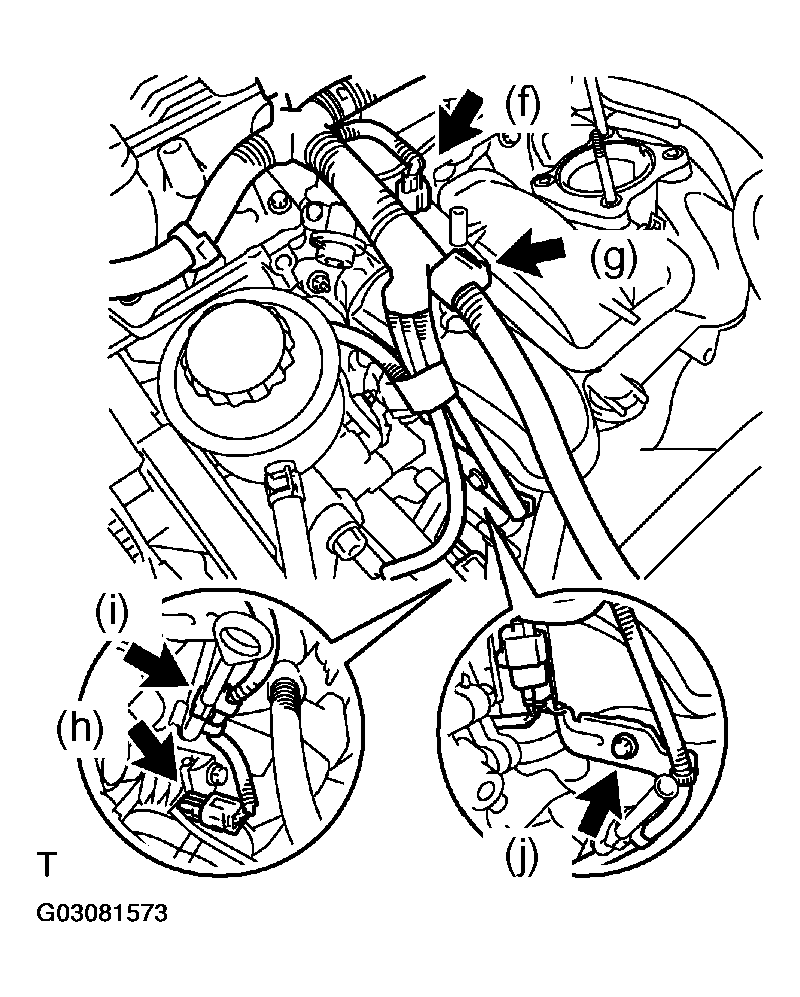

      Fig 6: Disconnecting VSV Connector
      G03081573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Disconnect the 3 connectors.
    12. Remove the nut shown in the illustration.
    13. Disconnect the engine wire harness from the relay block.

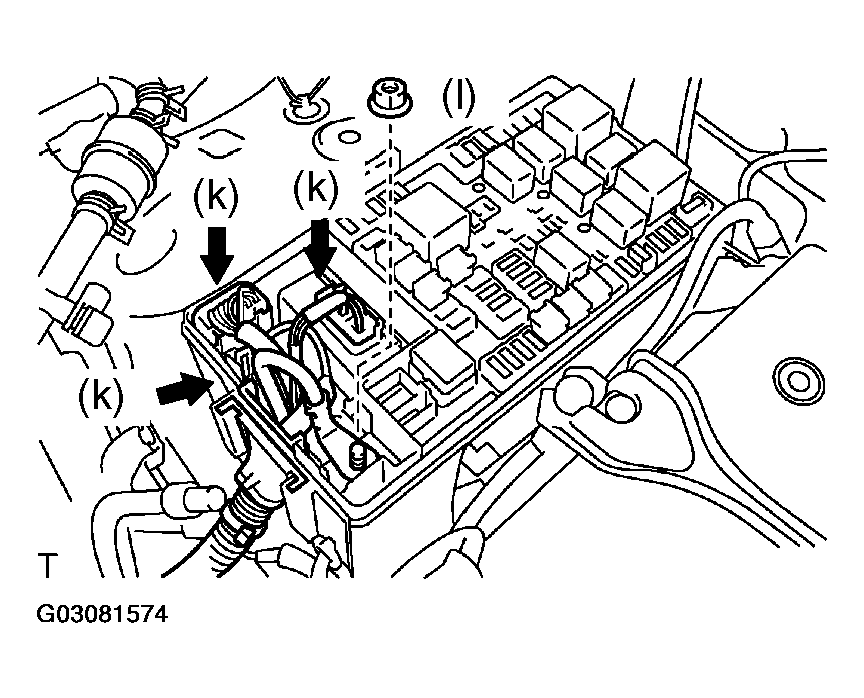

      Fig 7: Removing Nut
      G03081574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    14. Remove the 5 bolts and 2 nuts, then remove the intake manifold.

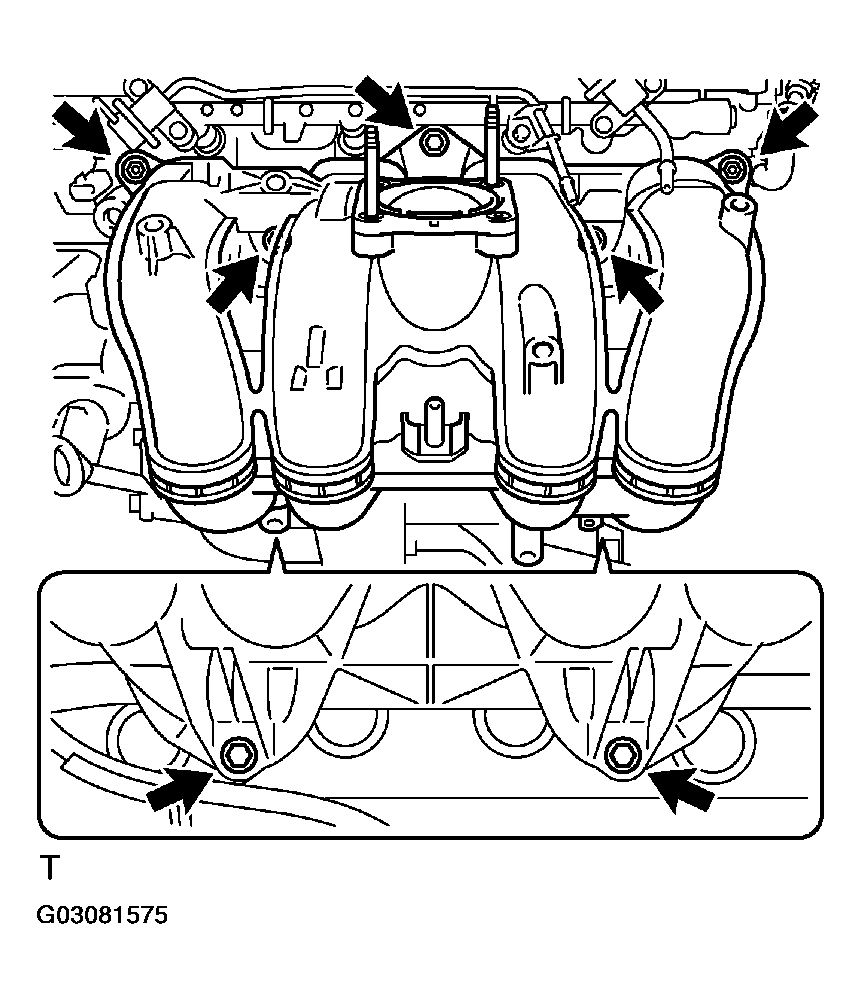

      Fig 8: Removing 5 Bolts And 2 Nuts
      G03081575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE KNOCK CONTROL SENSOR
    1. Disconnect the knock control sensor connector.
    2. Remove the bolt, then remove the knock control sensor.

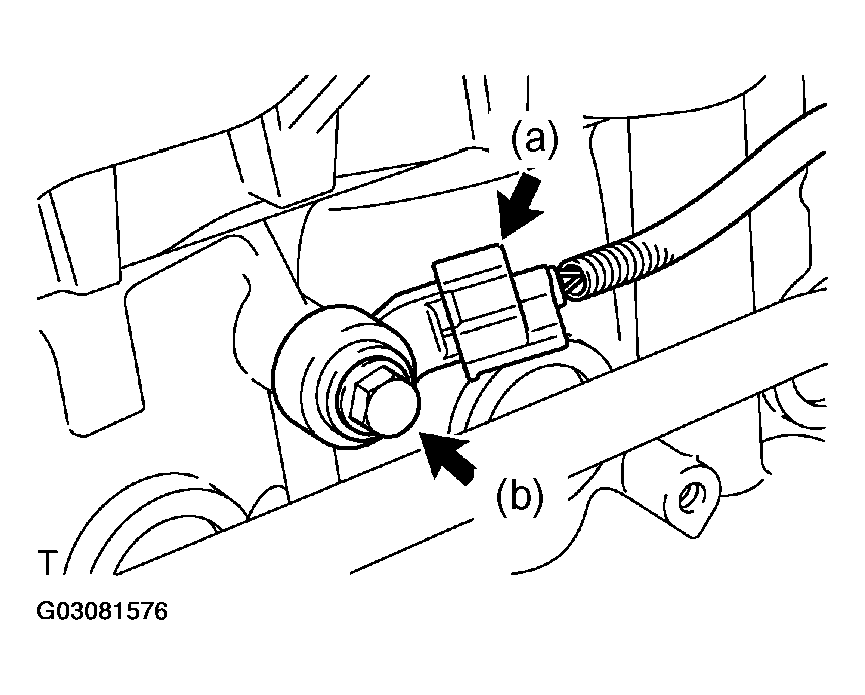

      Fig 9: Disconnecting Knock Control Sensor Connector
      G03081576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL KNOCK CONTROL SENSOR
    1. Install the knock control sensor with the bolt.

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

      Make sure that the knock sensor is at the correct angle when installing.

    2. Connect the knock control sensor connector.

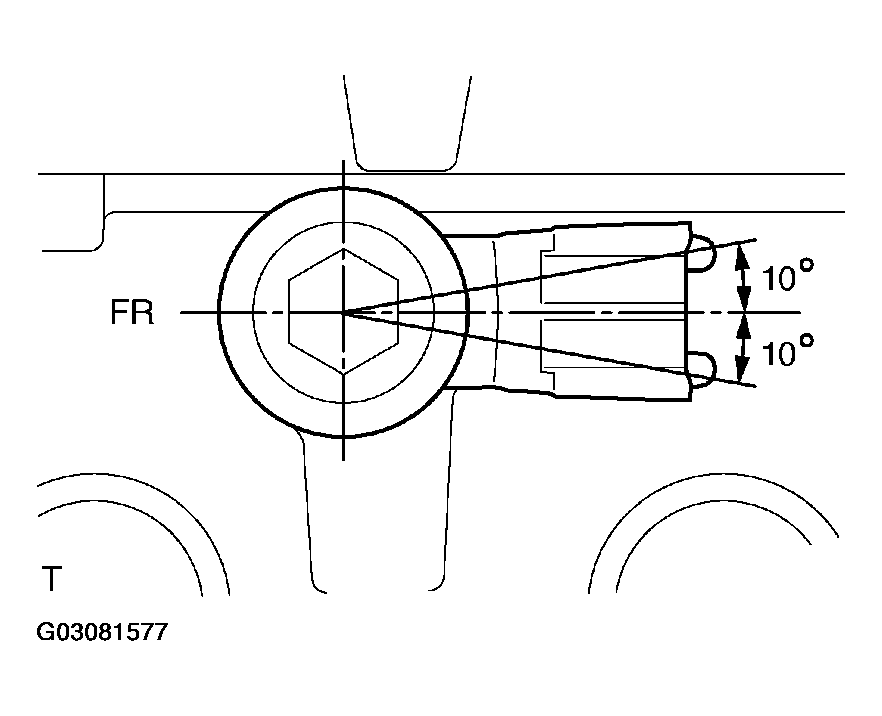

      Fig 10: Identifying Knock Sensor Correct Angle
      G03081577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INTAKE MANIFOLD
    1. Install a new gasket onto the intake manifold.
    2. Install the intake manifold with the 5 bolts and 2 nuts.

      Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)

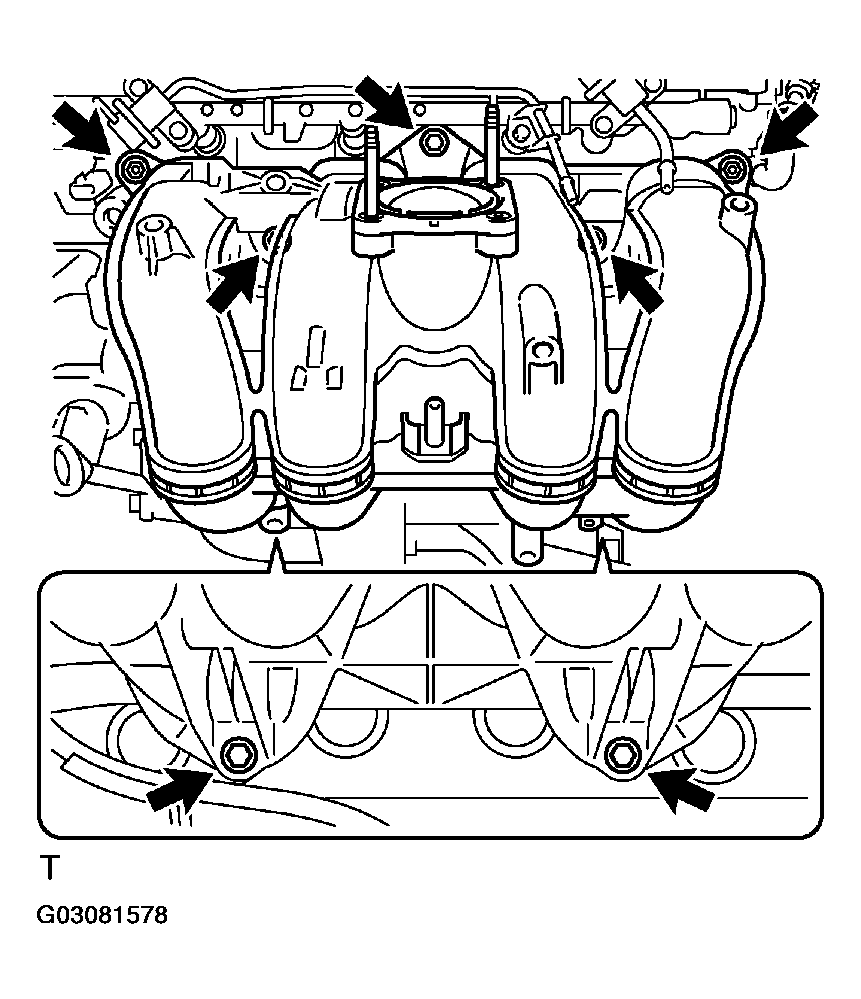

      Fig 11: Installing Intake Manifold With Bolts And Nuts
      G03081578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the engine wire harness to the relay block.
    4. Install the nut shown in the illustration.

      Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)

    5. Connect the 3 connectors.

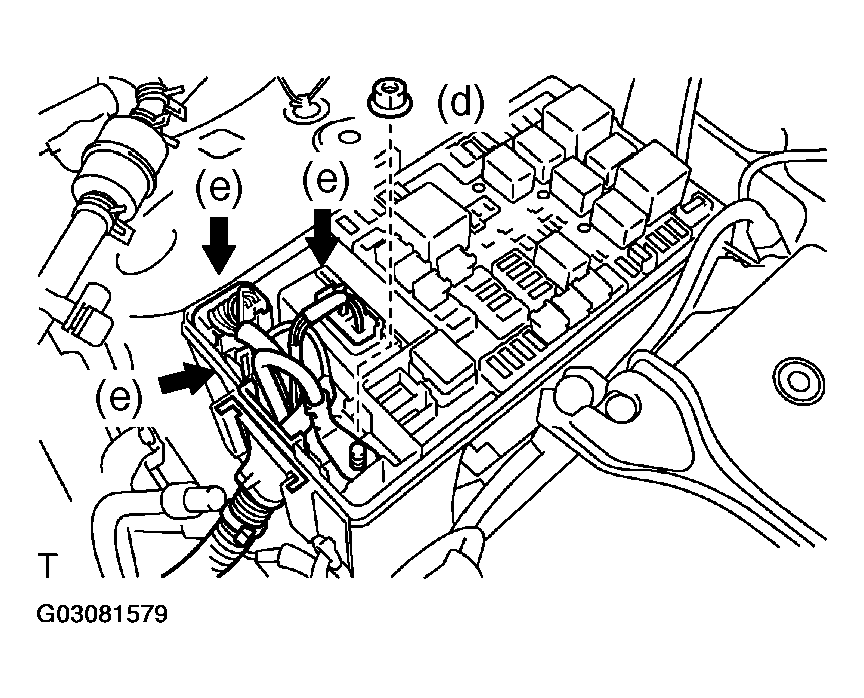

      Fig 12: Installing Nut
      G03081579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the harness clamp bracket with the bolt.

      Torque: 8.2 N.m (84 kgf.cm, 73 in..lbf)

    7. Engage the wire harness clamp.
    8. Connect the compressor magnetic clutch connector.

      (w/AIR CONDITIONING)

    9. Engage the engine wire harness clamp.
    10. Connect the VSV connector.
      Fig 13: Connecting VSV Connector
      G03081580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Connect the ventilation hose No. 3.

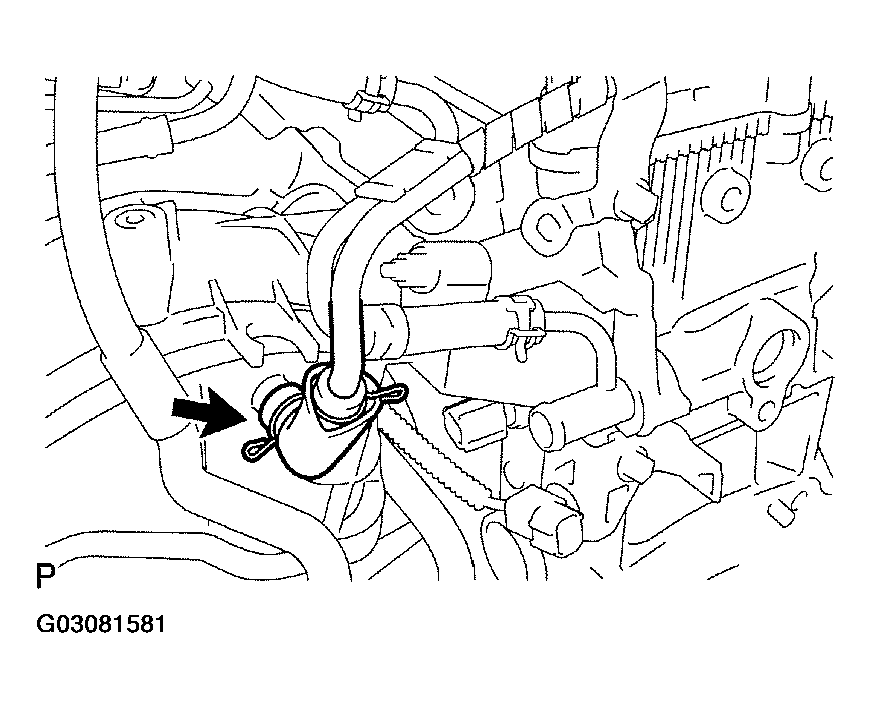

      Fig 14: Connecting Ventilation Hose No.2
      G03081581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Connect the water bypass hose No. 2.

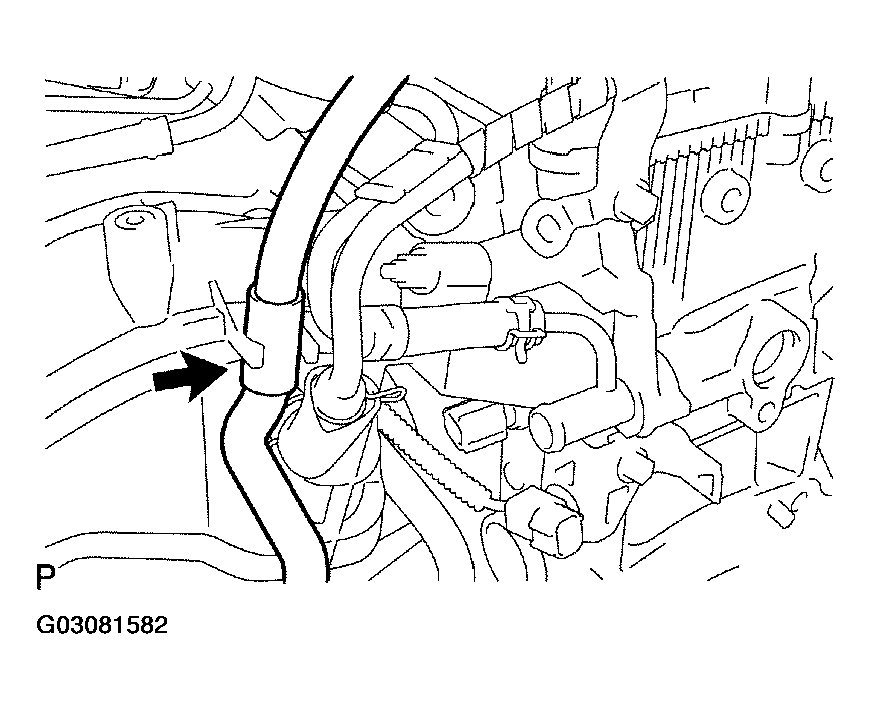

      Fig 15: Connecting Water By-Pass Hose No.2
      G03081582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Install the clamp bracket with the bolt.

      Torque: 19 N.m (194 kgf.cm, 14 in..lbf)

      Fig 16: Installing Clamp Bracket With Bolt
      G03081583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    14. Connect the vacuum hose.
      Fig 17: Connecting Vacuum Hose
      G03081584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    15. Connect the fuel vapor feed hose to the VSV.

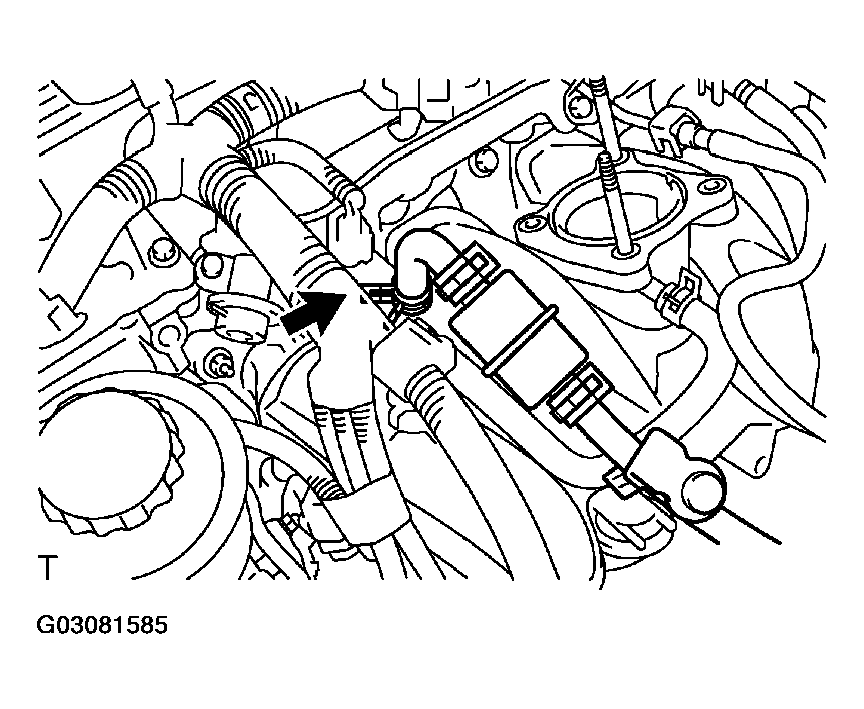

      Fig 18: Connecting Fuel Vapor Feed Hose To VSV
      G03081585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT FUEL HOSE  (See REPLACEMENT )
  13. CONNECT FUEL HOSE NO.2  (See REPLACEMENT )
  14. INSTALL THROTTLE W/MOTOR BODY ASSY  (See REPLACEMENT  )
  15. INSTALL INTAKE AIR CONNECTOR  (See REPLACEMENT  )
  16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  (See PRECAUTION )

    Torque: 3.9 N.m (40 kgf.cm, 35 in..lbf)

  17. ADD ENGINE COOLANT  (See REPLACEMENT )
  18. CHECK FOR ENGINE COOLANT LEAKAGE  (See ON-VEHICLE INSPECTION )
  19. CHECK FOR FUEL LEAKAGE  (See ON-VEHICLE INSPECTION )
  20. INSTALL ENGINE UNDER COVER SUB-ASSY NO.1 (PRE RUNNER AND 4WD TYPE)
