Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

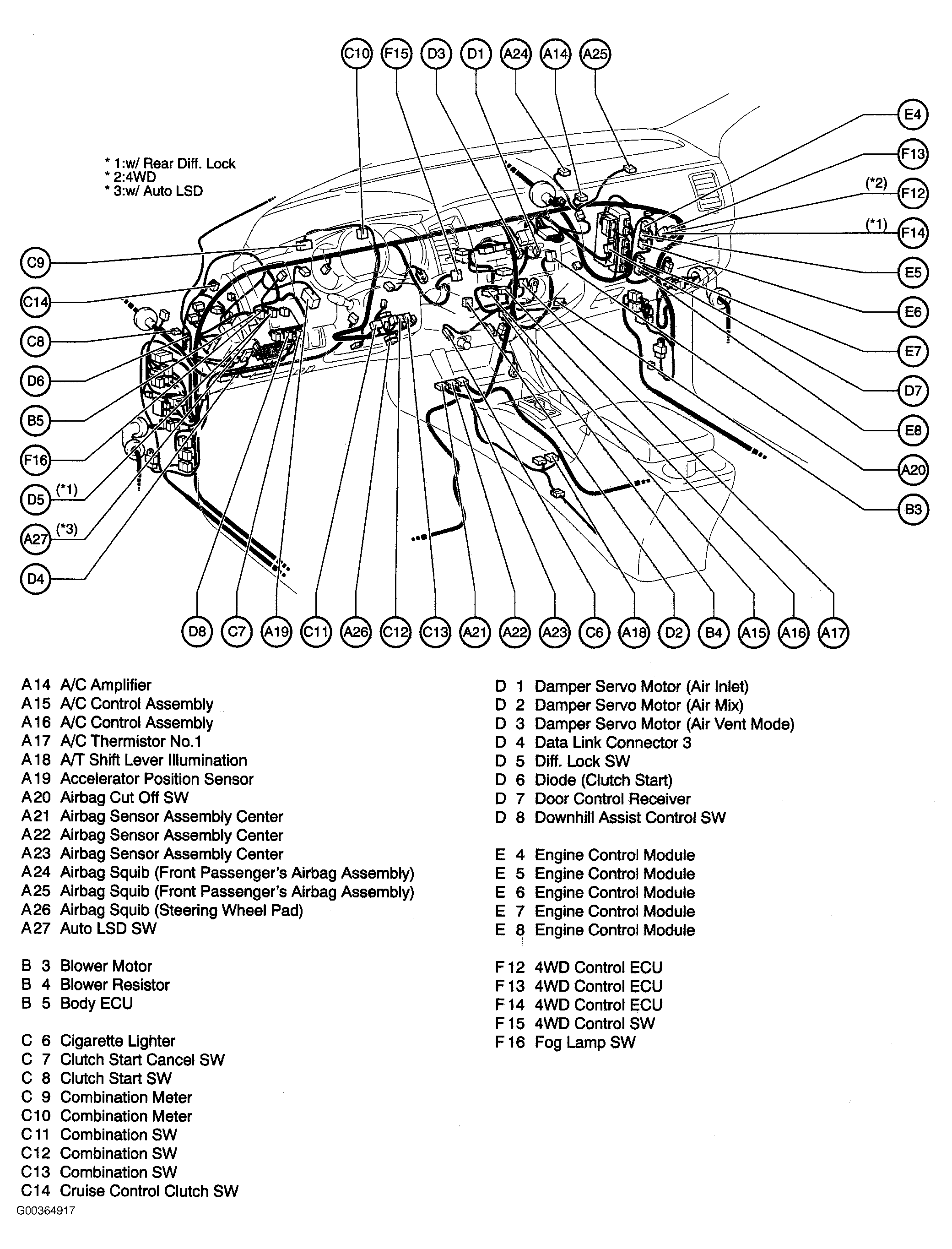

| Blower Resistor | Right side of dash. See Figure. |
| Diode (Clutch Start) | Left side of dash. See Figure. |

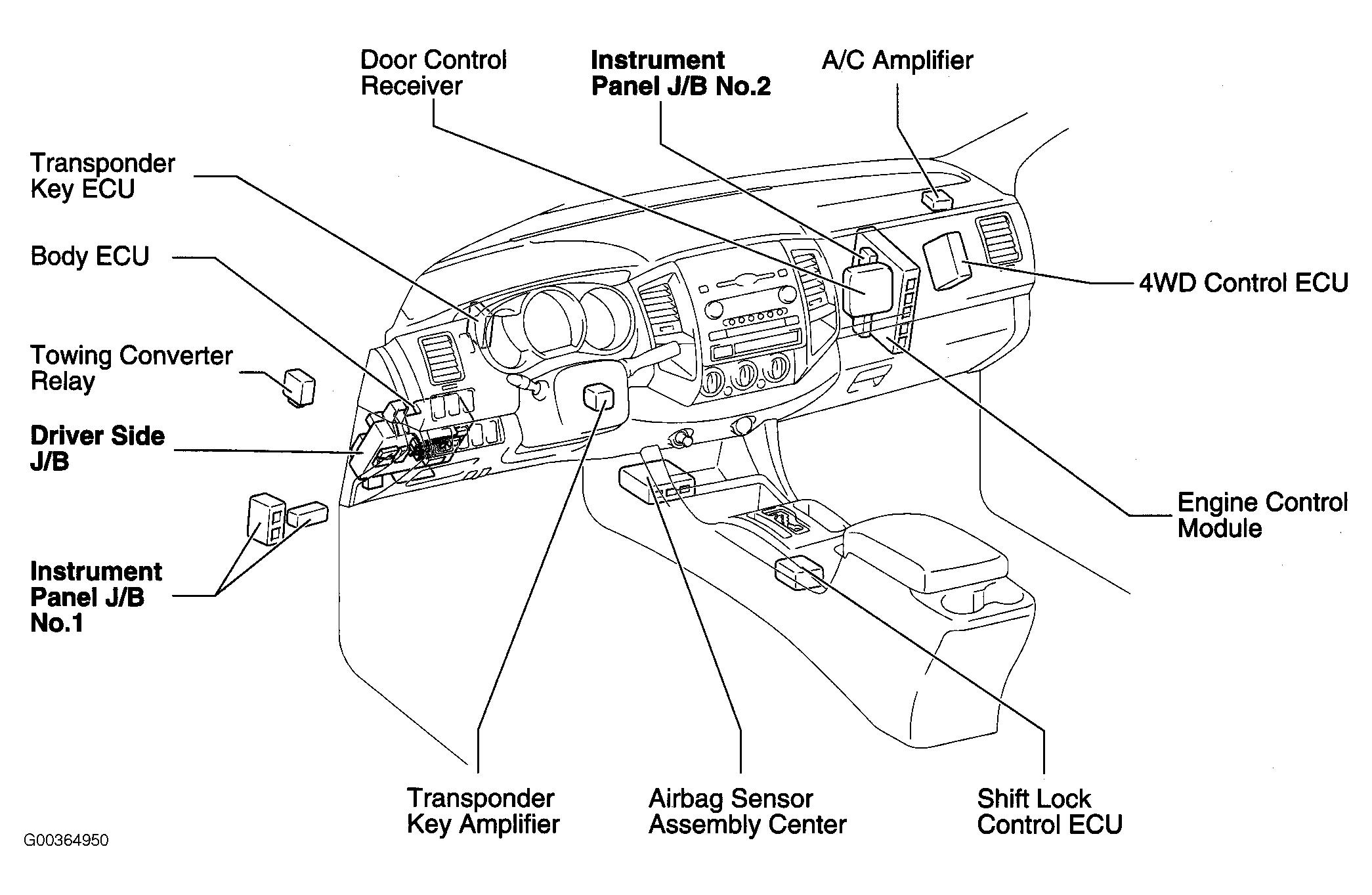

| Driver Side J/B | Left side of dash. See Figure. |
| Engine Room J/B | Left side of engine compartment. See Figure. |
| Engine Room R/B | Left front of engine compartment. See Figure. |
| Engine Room R/B No. 2 | Left front of engine compartment. See Figure. |
| Fuel Pump Resistor | Behind left front headlamp. See Figure. |
| Instrument Panel J/B No. 1 | At left side of dash. See Figure. |
| Instrument Panel J/B No. 2 | Right side of dash. See Figure. |
