Audio System with 9 Speaker: Notes

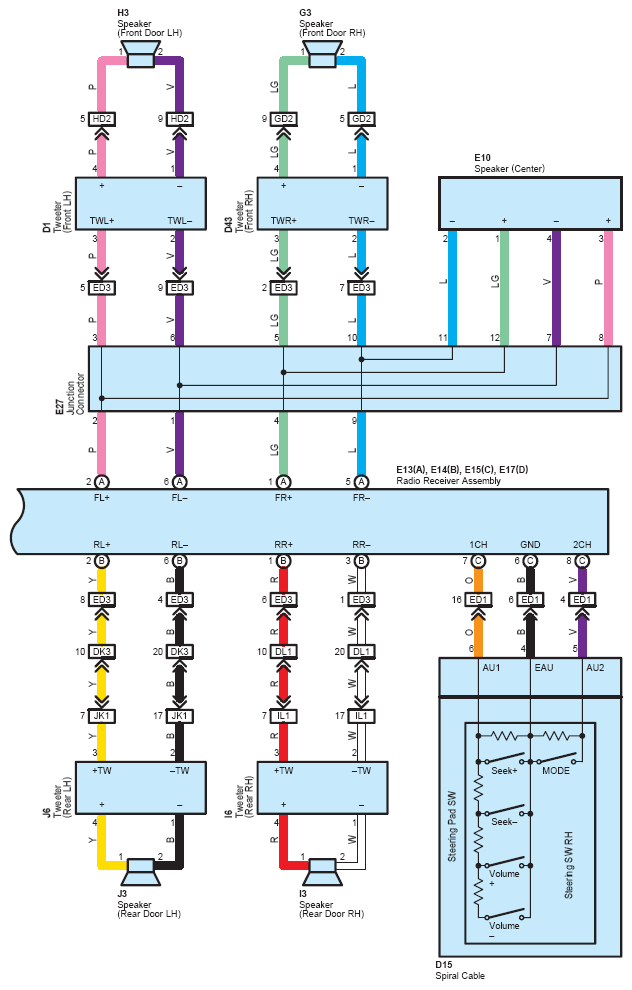

Fig 1: Audio (With 9 Speaker) System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

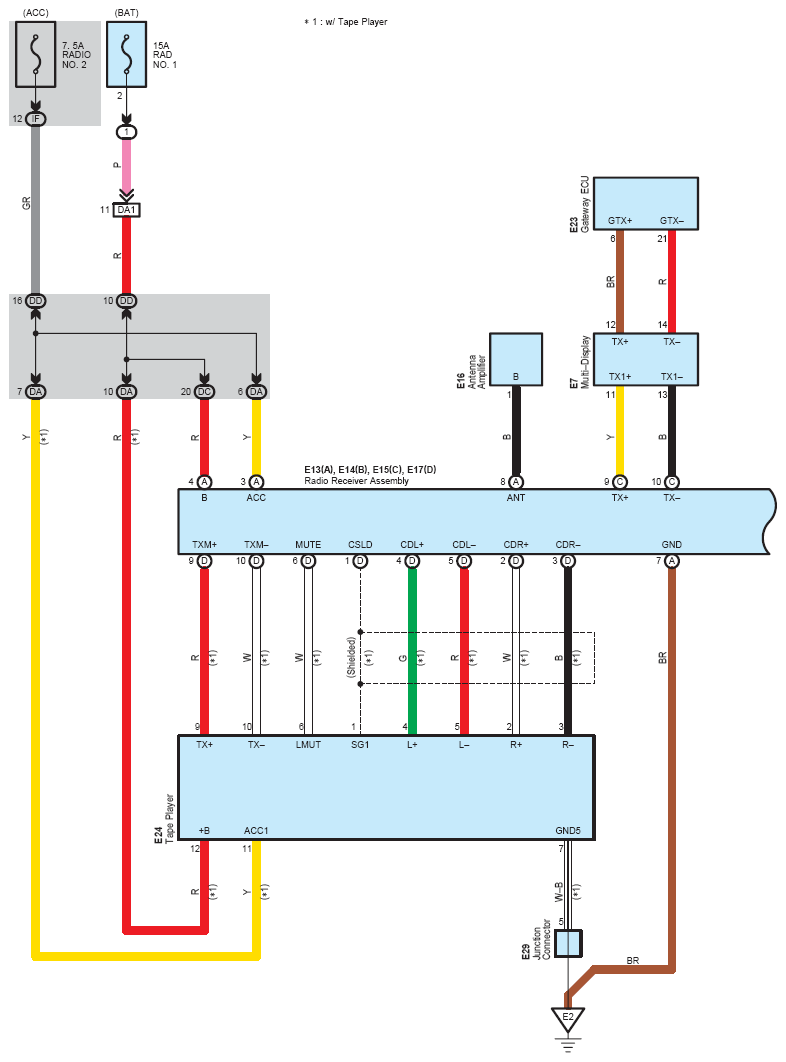

Fig 2: Audio (With 9 Speaker) System Wiring Diagram (2 Of 2)
