Front Lower Ball Joint: Components

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications (1 Of 2)
G04375435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

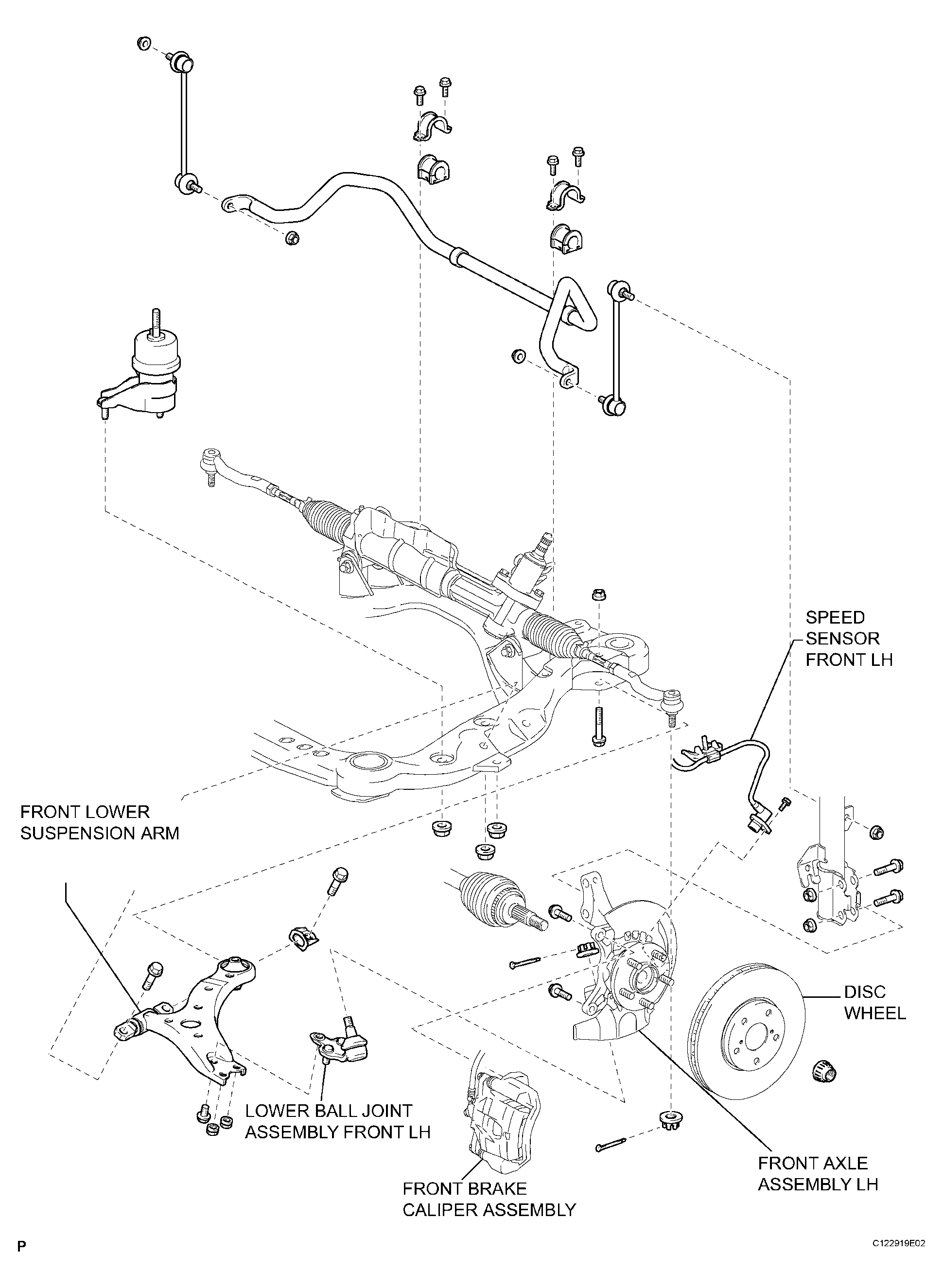

Fig 2: Identifying Front Lower Ball Joint Components (2 Of 2)
G04375436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
