Inspection Procedure

1. Disconnect the multi-display connector E8 and navigation controller connector E18.

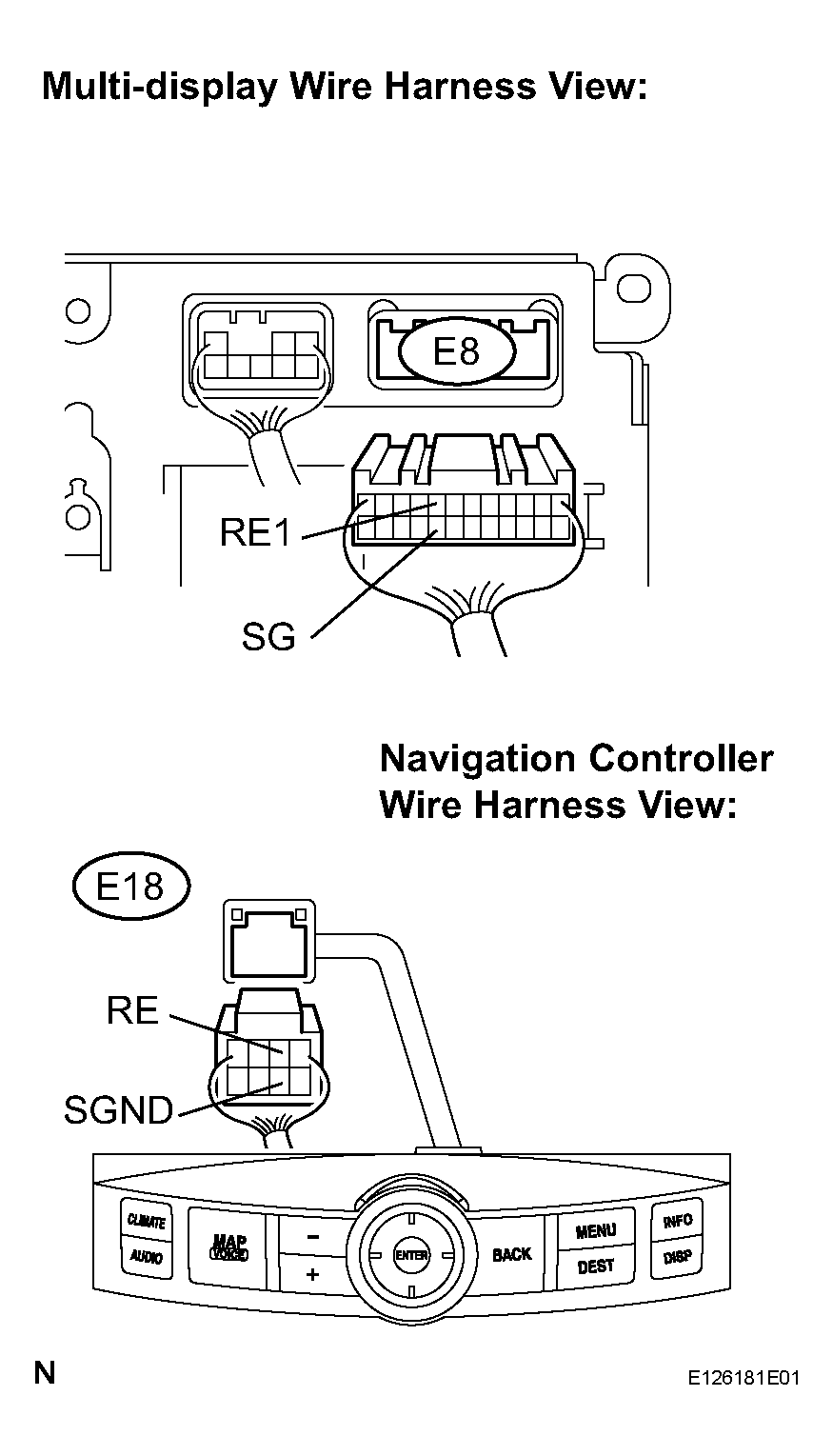

   Fig 1: Disconnecting Multi-Display Connector E8 And Navigation Controller Connector E18

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   RE1 - RE	Always	Below 1
   SG - SGND	Always	Below 1
   RE1 - Body ground	Always	10 k or higher
   SGND - Body ground	Always	10 k or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
