Steering Column Assembly: Reassembly

INSTALL IGNITION OR STARTER SWITCH ASSEMBLY

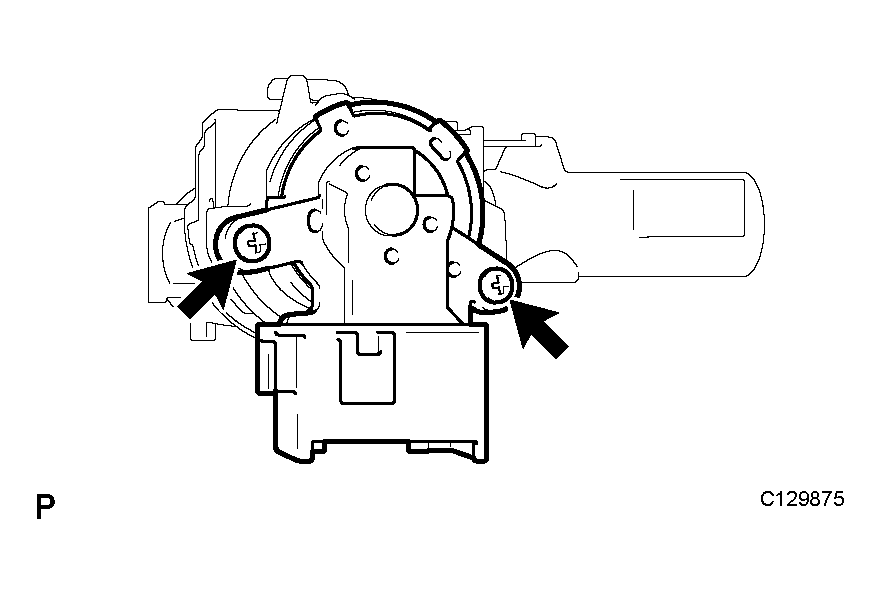

1. Install the ignition or starter switch assembly to the steering column upper w/ switch bracket assembly with the 2 screws.

  Fig 1: Installing Ignition Or Starter Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

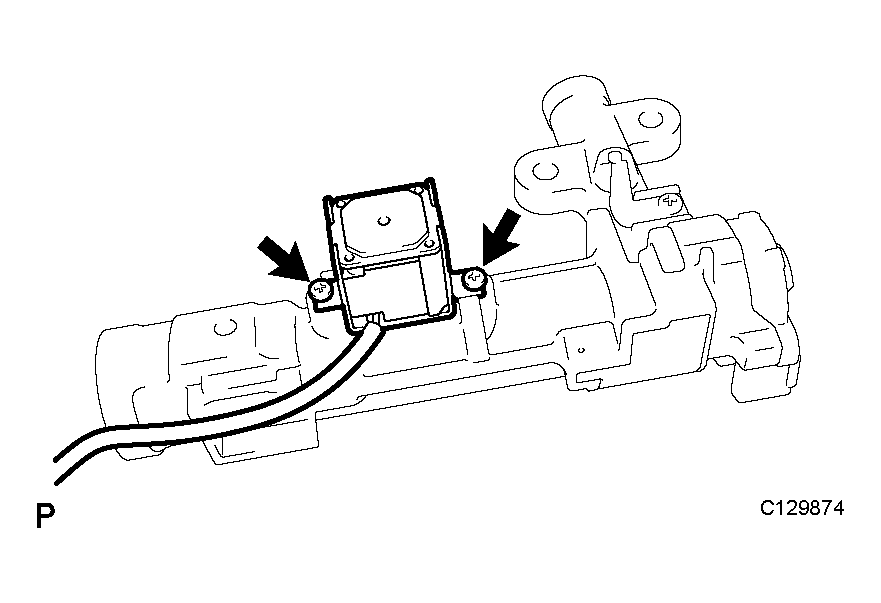

INSTALL KEY INTER LOCK SOLENOID
1. Install the key inter lock solenoid to the steering column upper w/ switch bracket assembly with the 2 screws.

  Fig 2: Installing Key Inter Lock Solenoid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

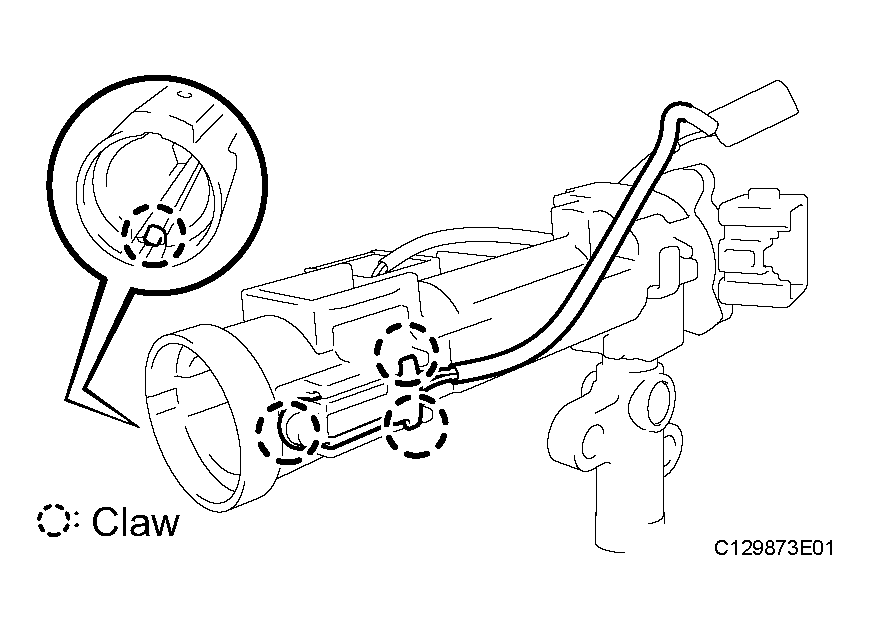

INSTALL UN-LOCK WARNING SWITCH ASSEMBLY
1. Install the unlock warning switch assembly.

  Fig 3: Installing Unlock Warning Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

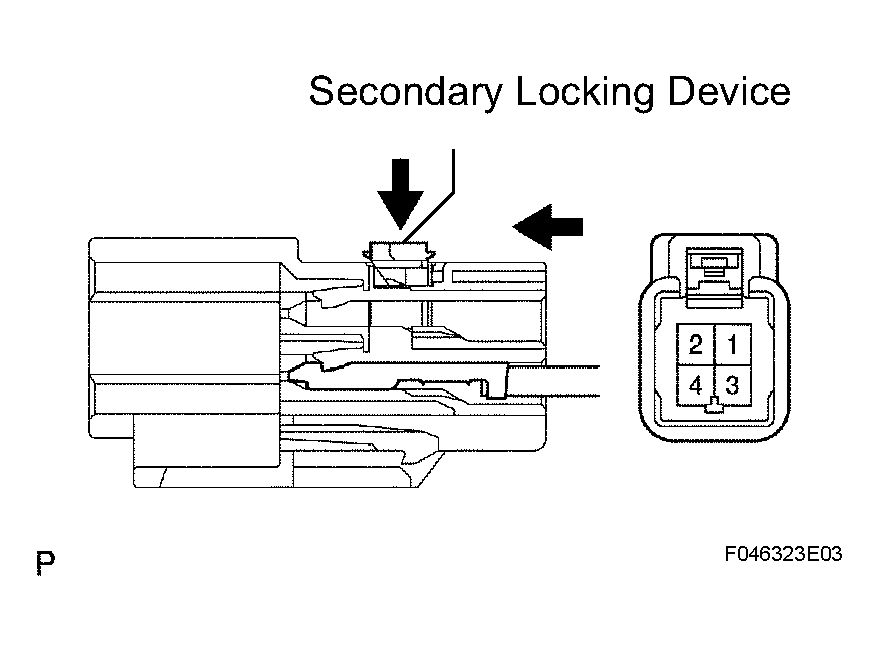

2. Connect terminals 3 and 4 of the unlock warning switch assembly connector.

  Fig 4: Connecting Terminals 3 And 4 Of Unlock Warning Switch Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the secondary locking device.
4. Connect the unlock warning switch assembly connector to the ignition or starter switch assembly.

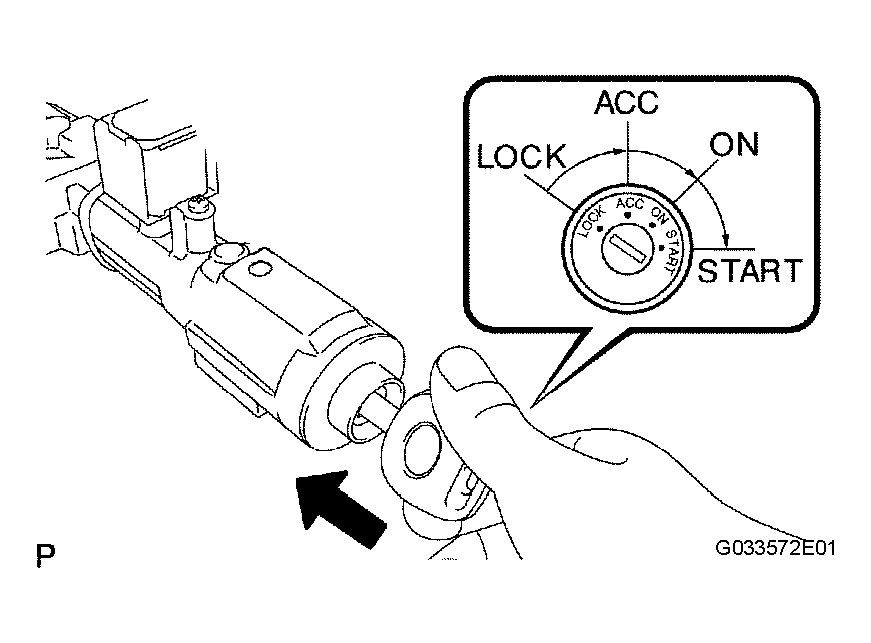

INSTALL IGNITION SWITCH LOCK CYLINDER ASSEMBLY
1. Make sure the ignition switch lock cylinder assembly is in the ACC position.
2. Install the ignition switch lock cylinder assembly.
3. Make sure that the ignition switch lock cylinder assembly is securely installed.

  Fig 5: Installing Ignition Switch Lock Cylinder Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STEERING LOCK OPERATION

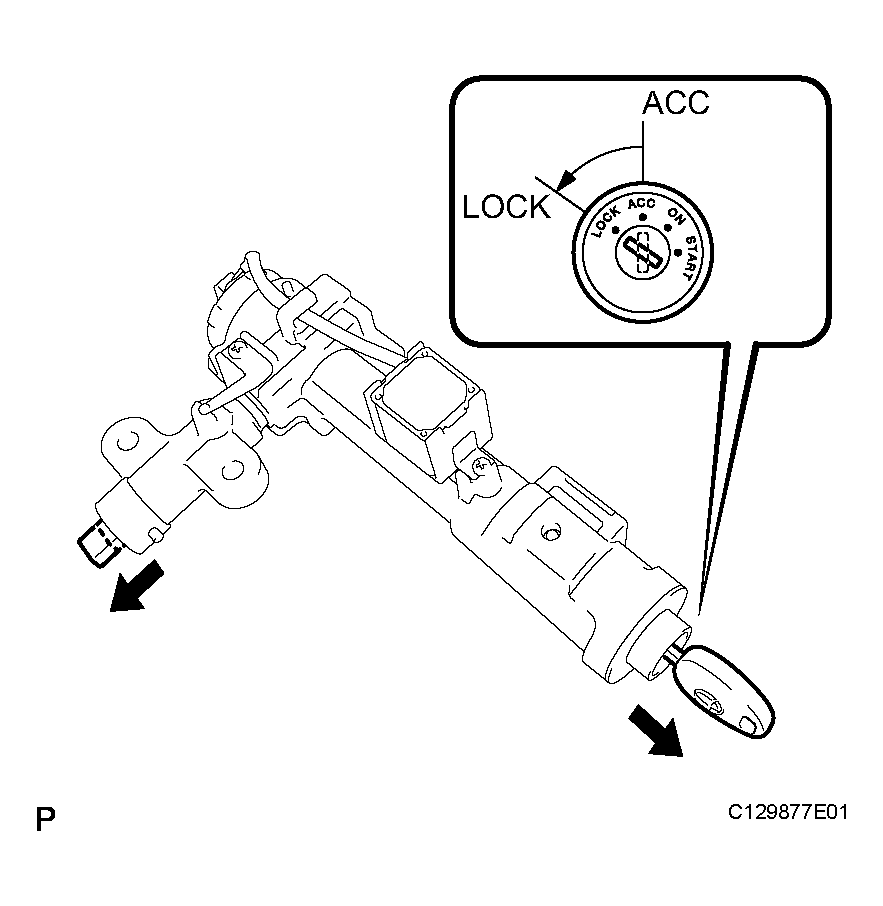

1. Check that the steering lock mechanism is activated when the key is removed.

  Fig 6: Inspecting Steering Lock Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

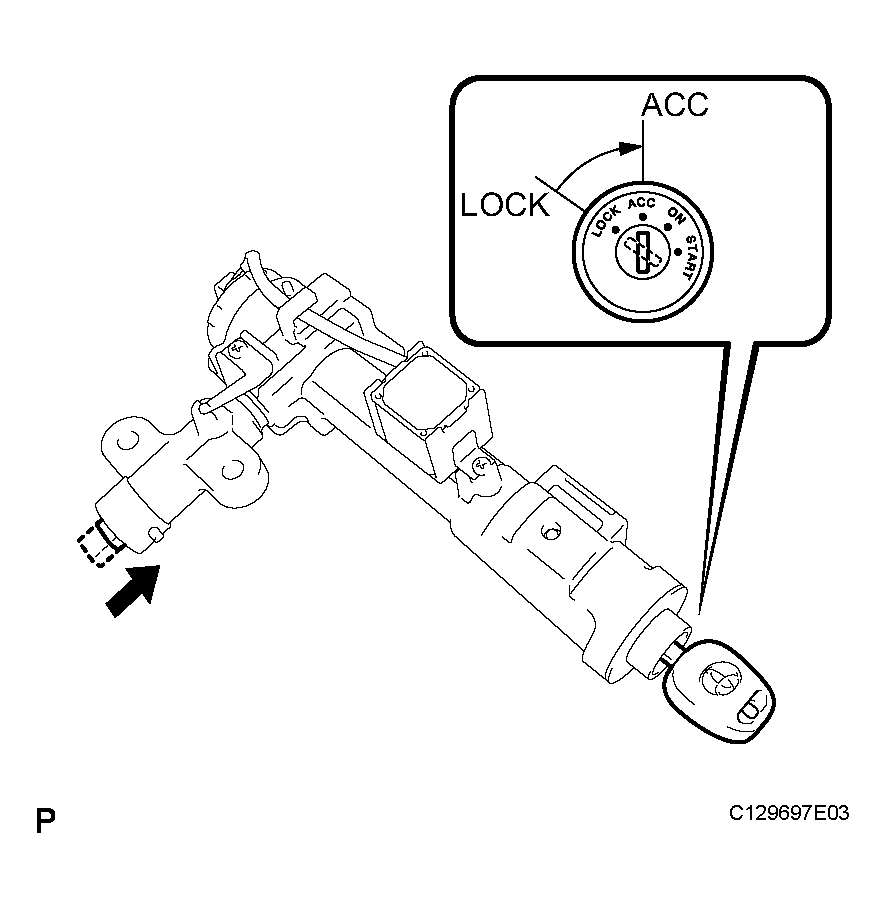

2. Check that the steering lock mechanism is deactivated when the key is inserted and turned to the ACC position.
  HINT:

  If there is any abnormality, replace the ignition switch lock cylinder assembly.

  Fig 7: Checking Steering Lock Mechanism
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

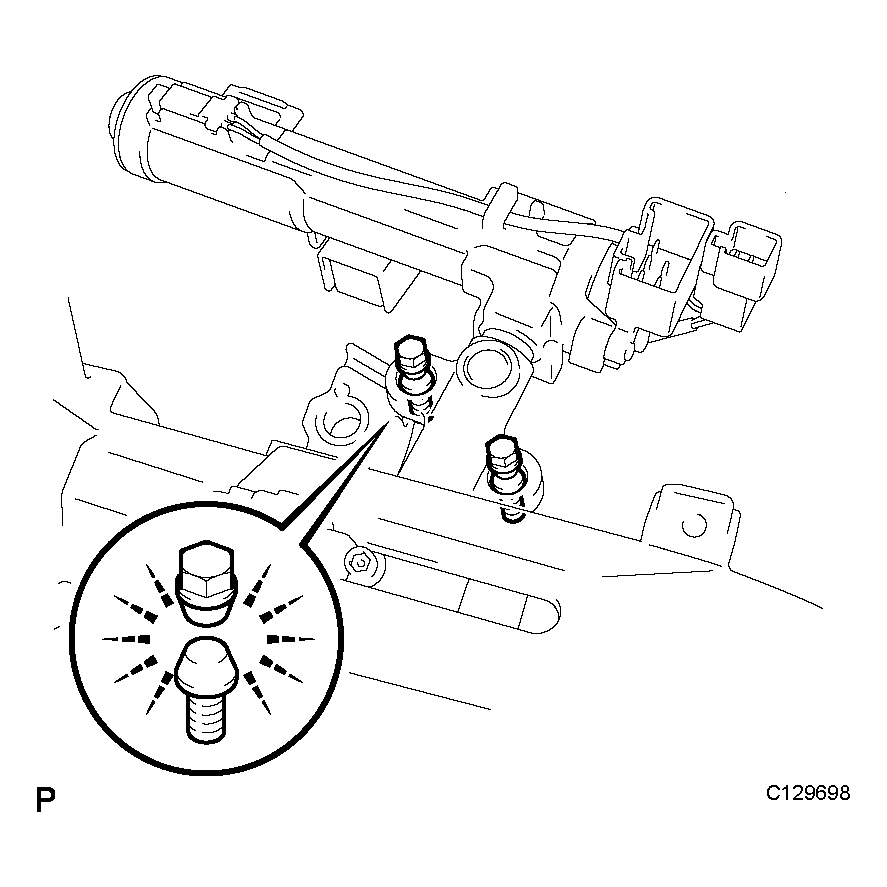

INSTALL STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY
1. Temporarily install the steering column upper w/switch bracket assembly with 2 new tapered-head bolts.
2. Tighten the 2 tapered-head bolts until the bolt heads break off.

  Fig 8: Installing Steering Column Upper With Switch Bracket Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

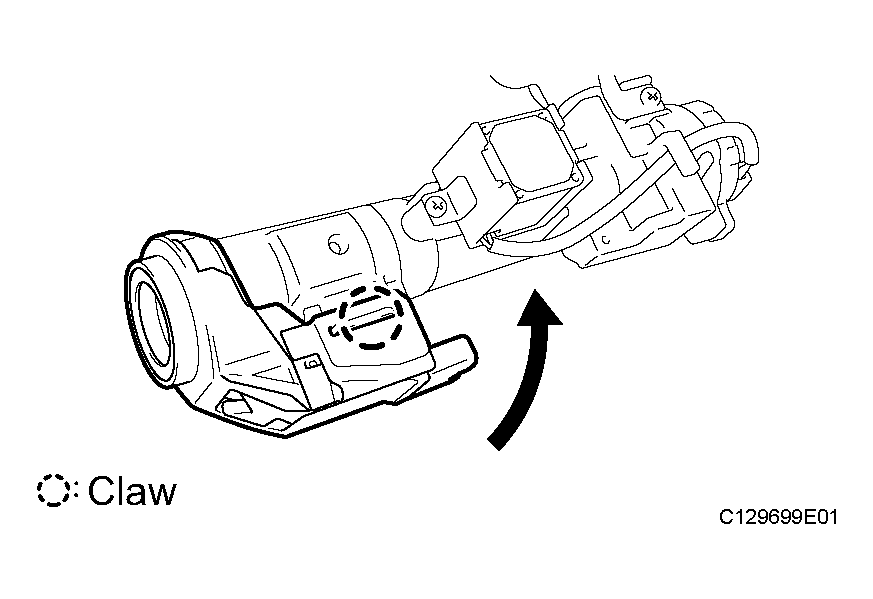

INSTALL TRANSPONDER KEY AMPLIFIER
1. Align the transponder key amplifier with the installation position of the upper bracket with the amplifier inclined.
2. Push the transponder key amplifier up and install it to the upper bracket.
  NOTE: Do not push the amplifier up with excessive force.

  Fig 9: Installing Transponder Key Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING LOCK ACTUATOR ASSEMBLY
1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.
2. Tighten the 2 tapered-head bolts until the bolt heads break off.

  Fig 10: Installing Steering Lock Actuator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
