Distance Control Ecu: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working (See PRECAUTION ).
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1 (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PLATE (See REMOVAL )
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (See REMOVAL )
REMOVE INSTRUMENT PANEL AIRBAG ASSEMBLY LOWER NO. 1 (See REMOVAL )
REMOVE DISTANCE CONTROL ECU ASSEMBLY
1. Disconnect the connector.
2. Remove the bolt and the distance control ECU assembly.

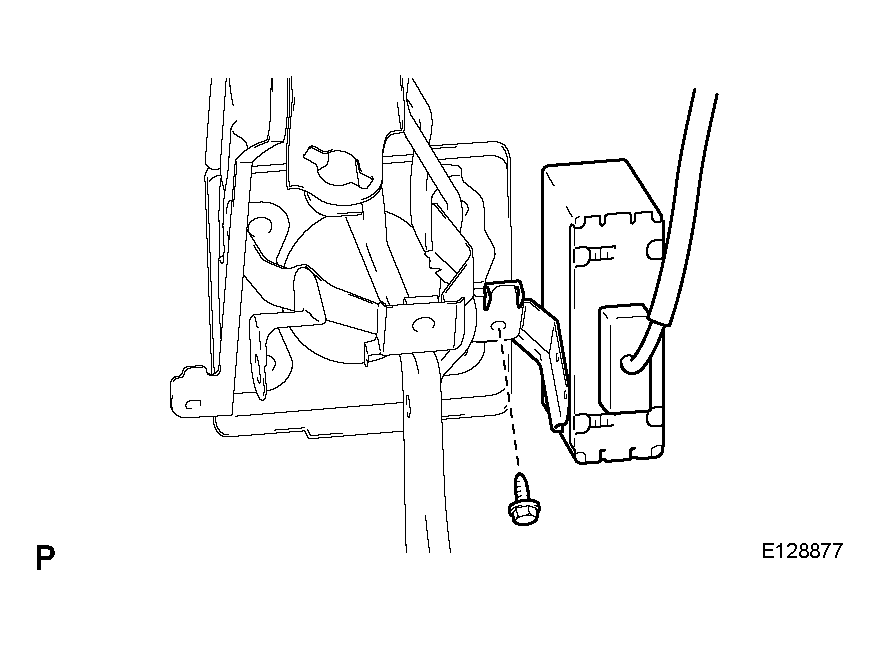

  Fig 1: Removing Bolt And Distance Control ECU Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
