Entertainment Systems: Audio/Visual: Microphone: Components

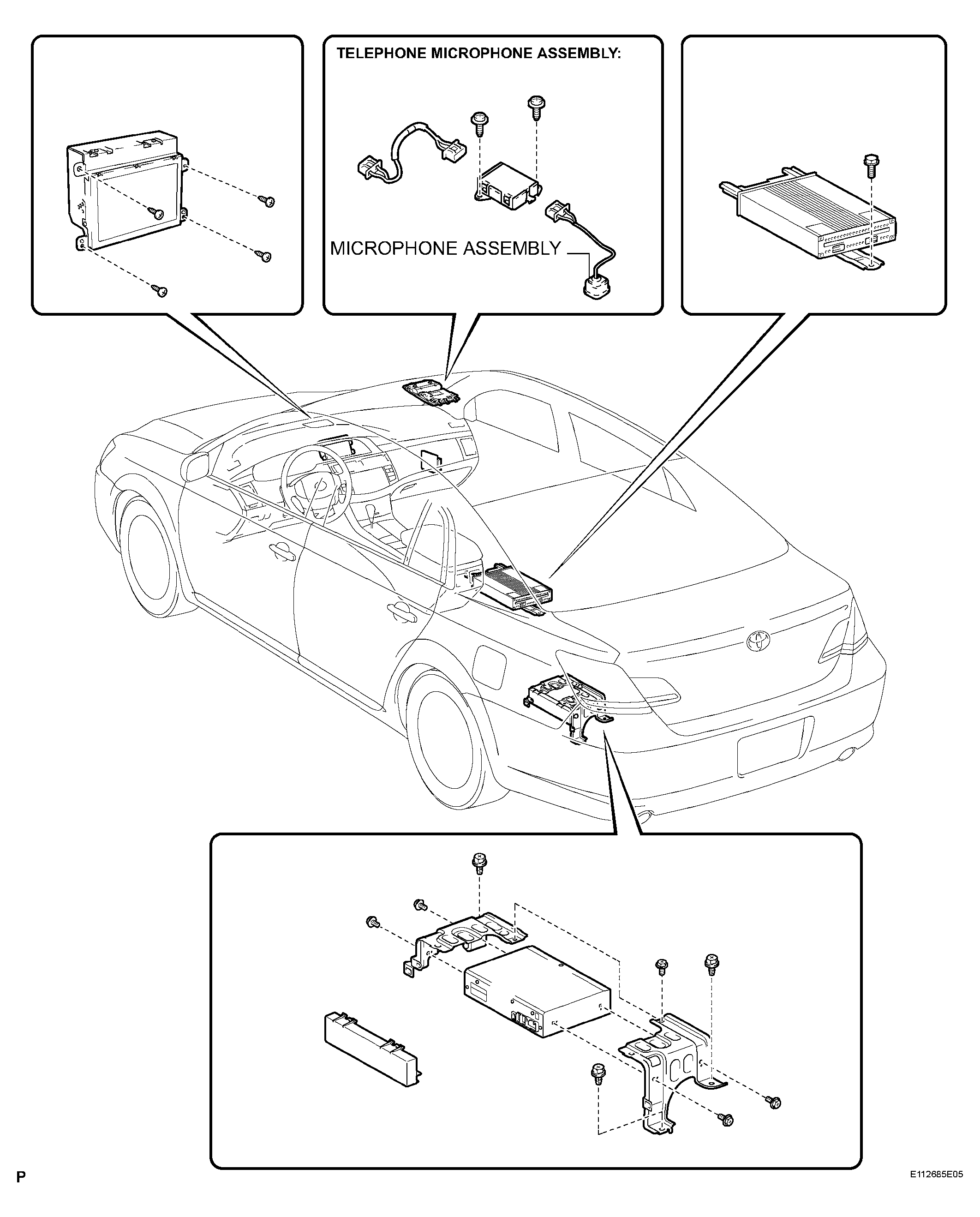

Fig 1: Identifying Microphone Components (1 Of 2)
G04380150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Microphone Components (2 Of 2)
G04380151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
