Network Gateway Ecu: Components

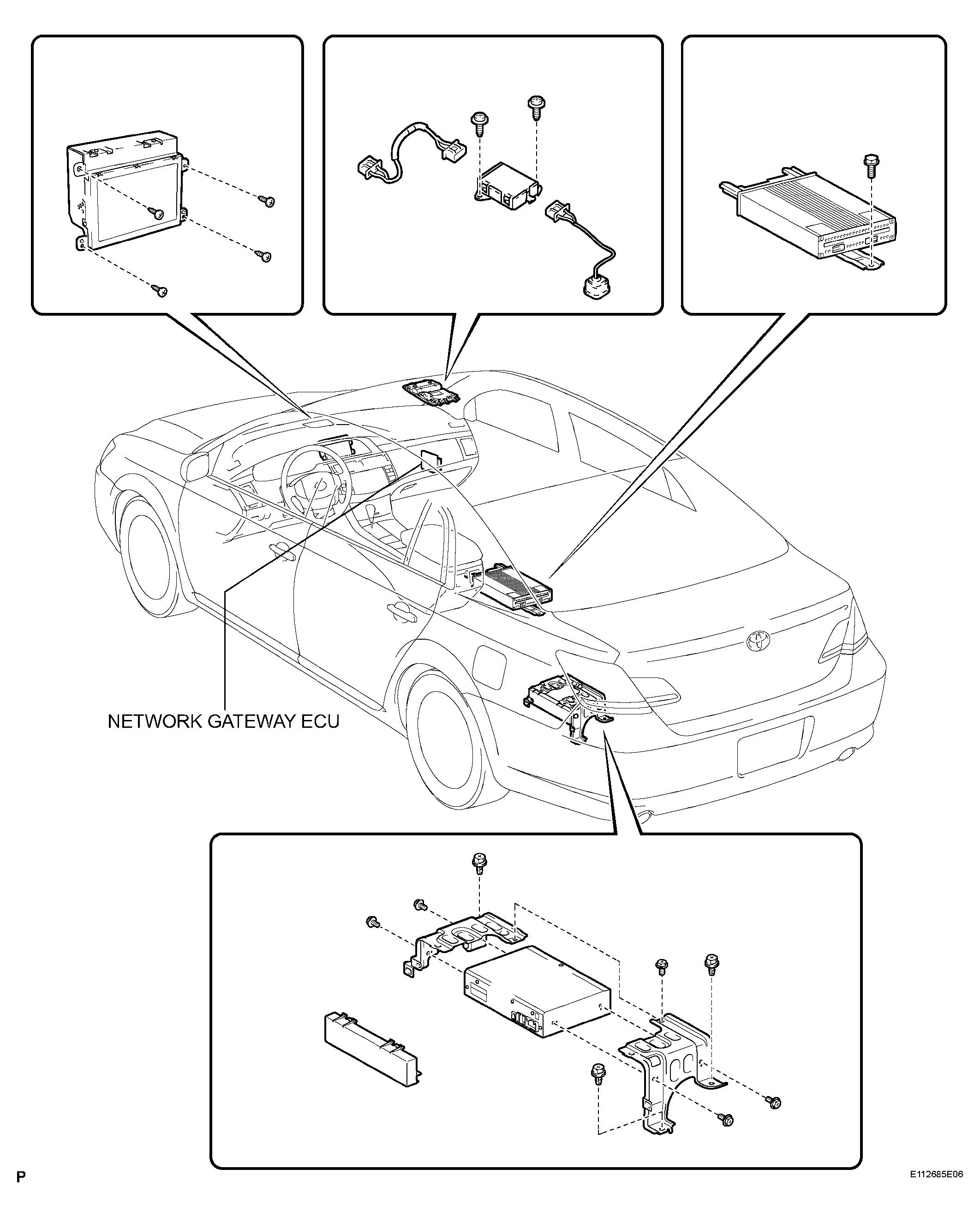

Fig 1: Identifying Network Gateway ECU Components (1 Of 2)
G04380141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Network Gateway ECU Components (2 Of 2)
G04380142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
