Steering Pad Switch: Components

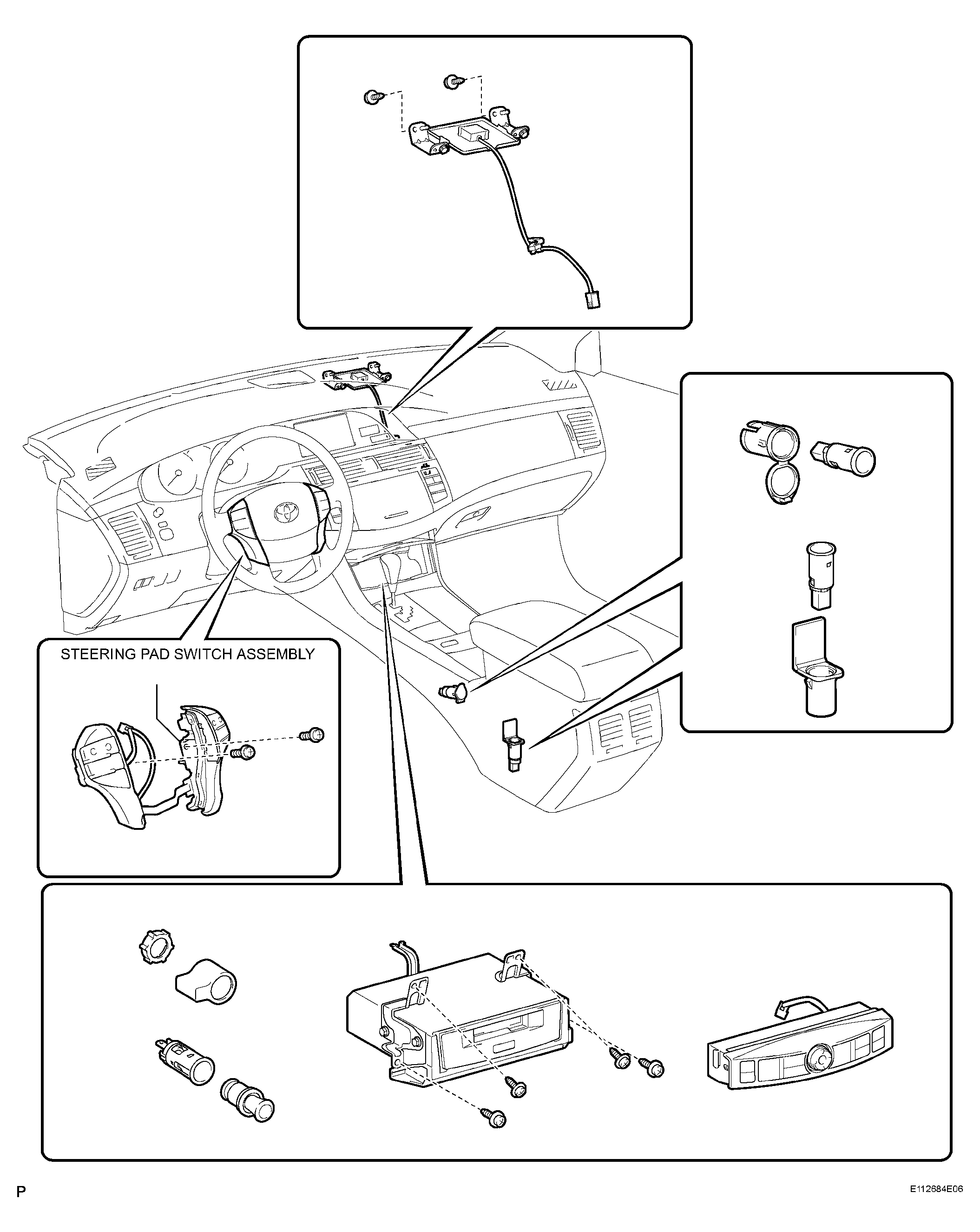

Fig 1: Identifying Steering Pad Switch Components (1 Of 2)
G04380145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

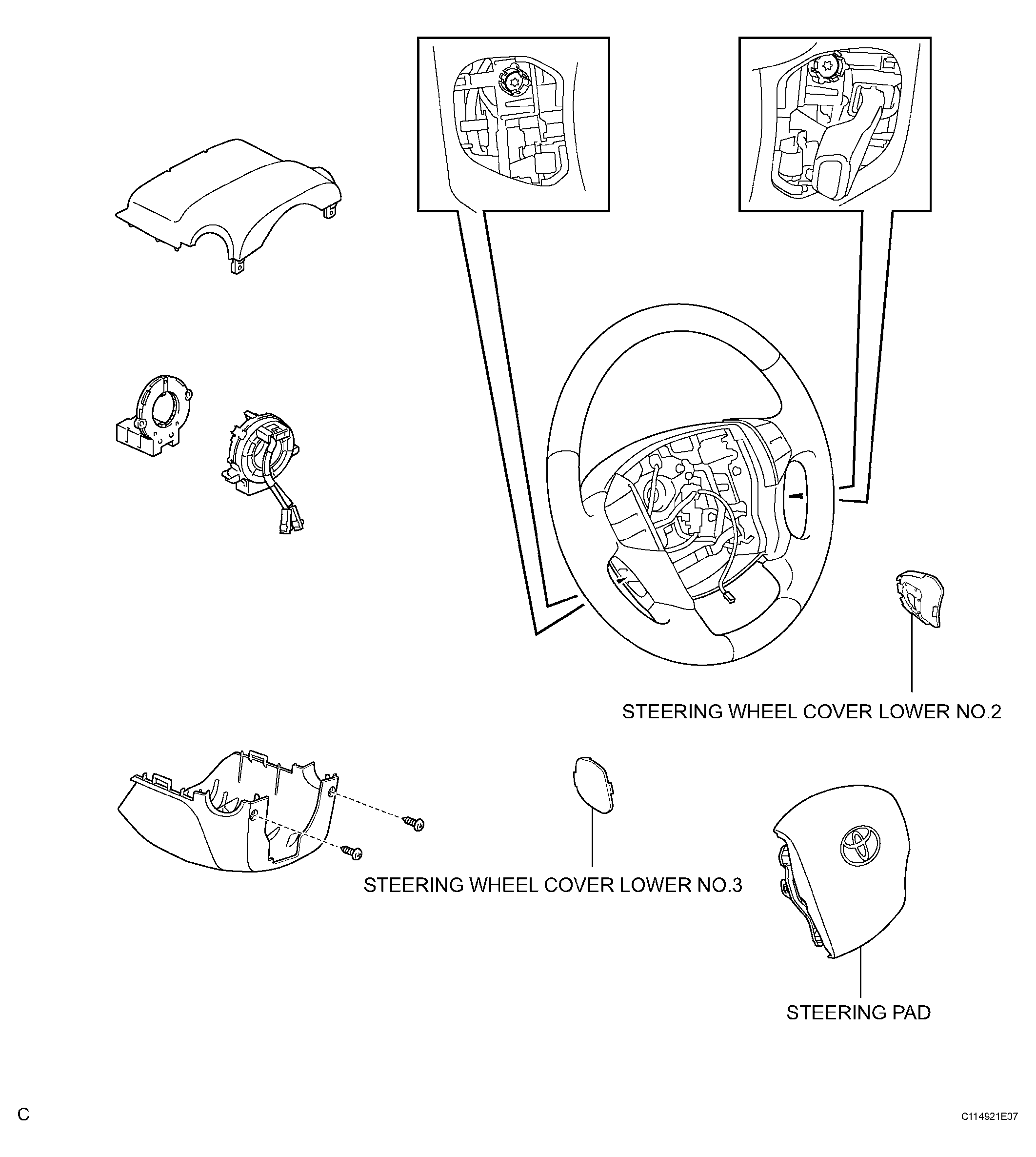

Fig 2: Identifying Steering Pad Switch Components (2 Of 2)
G04380146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
