Inspection Procedure

1. Remove the power window motor.
2. Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (FRONT PASSENGER SIDE)  .
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

   Standard

   POWER WINDOW REGULATOR MOTOR (FRONT PASSENGER SIDE)



   Measurement Condition	Specified Condition
   Battery positive (+) -> Terminal 1 (D) Battery negative (-) -> Terminal 2 (U)	Motor gear rotates clockwise
   Battery positive (+) -> Terminal 2 (U) Battery negative (-) -> Terminal 1 (D)	Motor gear rotates counterclockwise

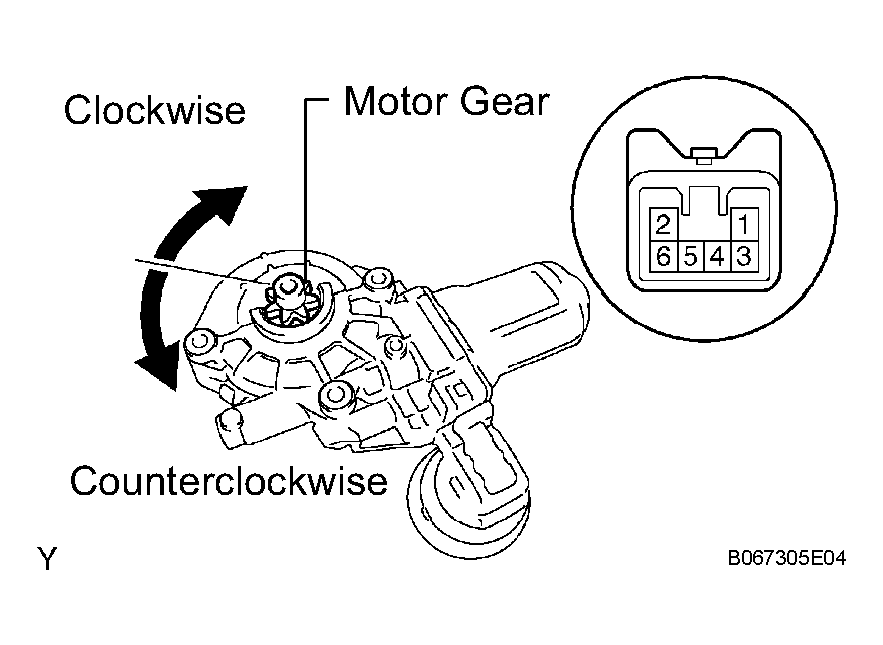

   Fig 1: Inspecting Power Window Regulator Motor Operation (Front Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MOTOR (FRONT PASSENGER SIDE)

OK: Go to next step

1. Disconnect the H4 and H6 connectors.
2. Measure the resistance of the wire harness side connectors.

   Resistance

   WINDOW REGULATOR MOTOR - MULTIPLEX NETWORK SWITCH



   Tester Connection	Condition	Specified Condition
   H4-2 - H6-6	Always	Below 1 Ω
   H4-1 - H6-1	Always	Below 1 Ω
   H4-2 - Body ground	Always	10 kΩ or higher
   H4-1 - Body ground	Always	10 kΩ or higher

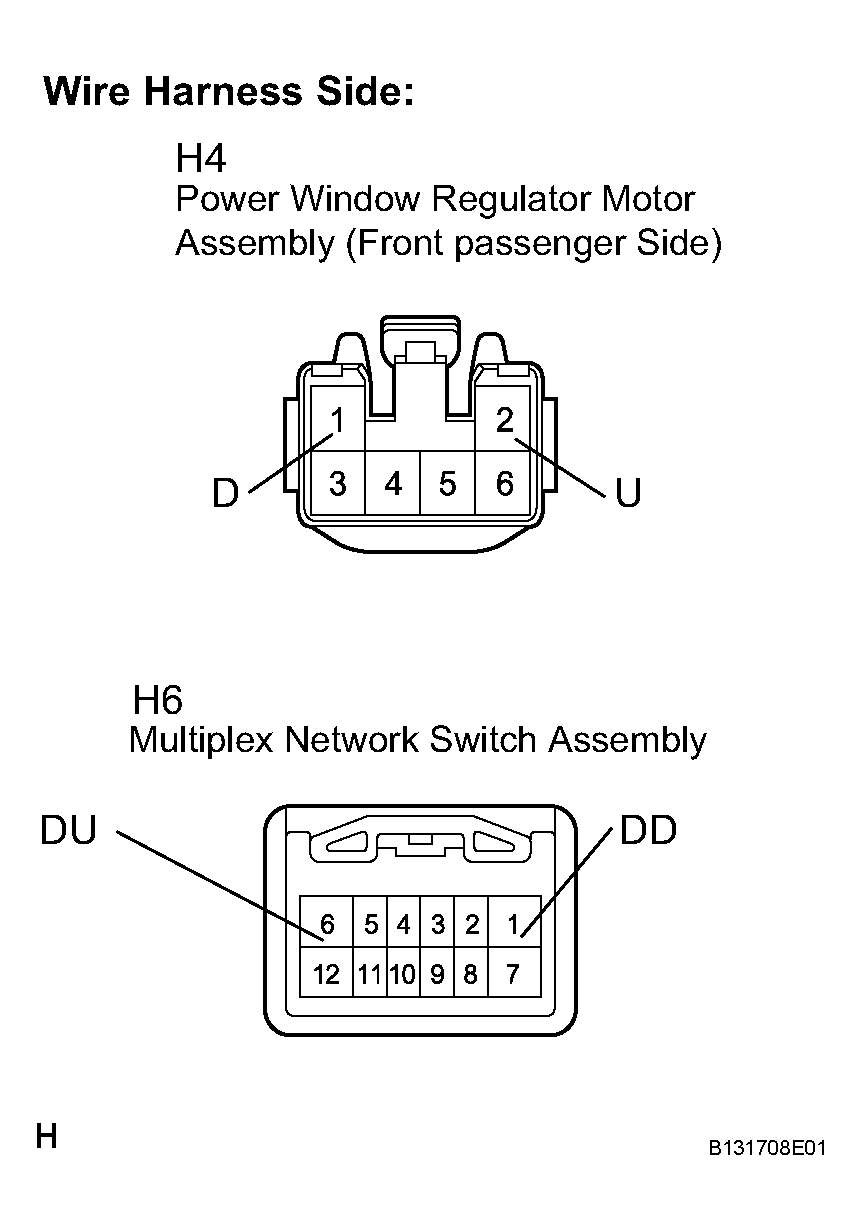

   Fig 2: Checking Wire Harness (Window Regulator Motor - Multiplex Network Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
