Inspection Procedure

HINT:

If other DTCs relating to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

READ VALUE OF INTELLIGENT TESTER (INTAKE AIR TEMPERATURE)

Connect the intelligent tester to the DLC3.
Turn the ignition switch on (IG).
Turn the tester on.
Select the following menu items: DIAGNOSIS / ENHANCEDOBD II / DATA LIST / PRIMARY / INTAKE AIR.

Read the value displayed on the tester.

Standard:

Same as actual Intake Air Temperature (IAT).

Result

RESULT REFERENCE

Temperature Displayed	Proceed to
-40°C (-40°F)	A
140°C (284°F) or higher	B
Same as actual IAT	C

HINT:

If there is an open circuit, the intelligent tester indicates -40°C (-40°F).
If there is a short circuit, the intelligent tester indicates140°C (284°F) or higher.

B: Go to step 4

C: CHECK FOR INTERMITTENT PROBLEMS

A: Go to Next Step

READ VALUE OF INTELLIGENT TESTER (CHECK FOR OPEN IN WIRE HARNESS)
1. Disconnect the B10 Mass Air Flow (MAF) meter connector.

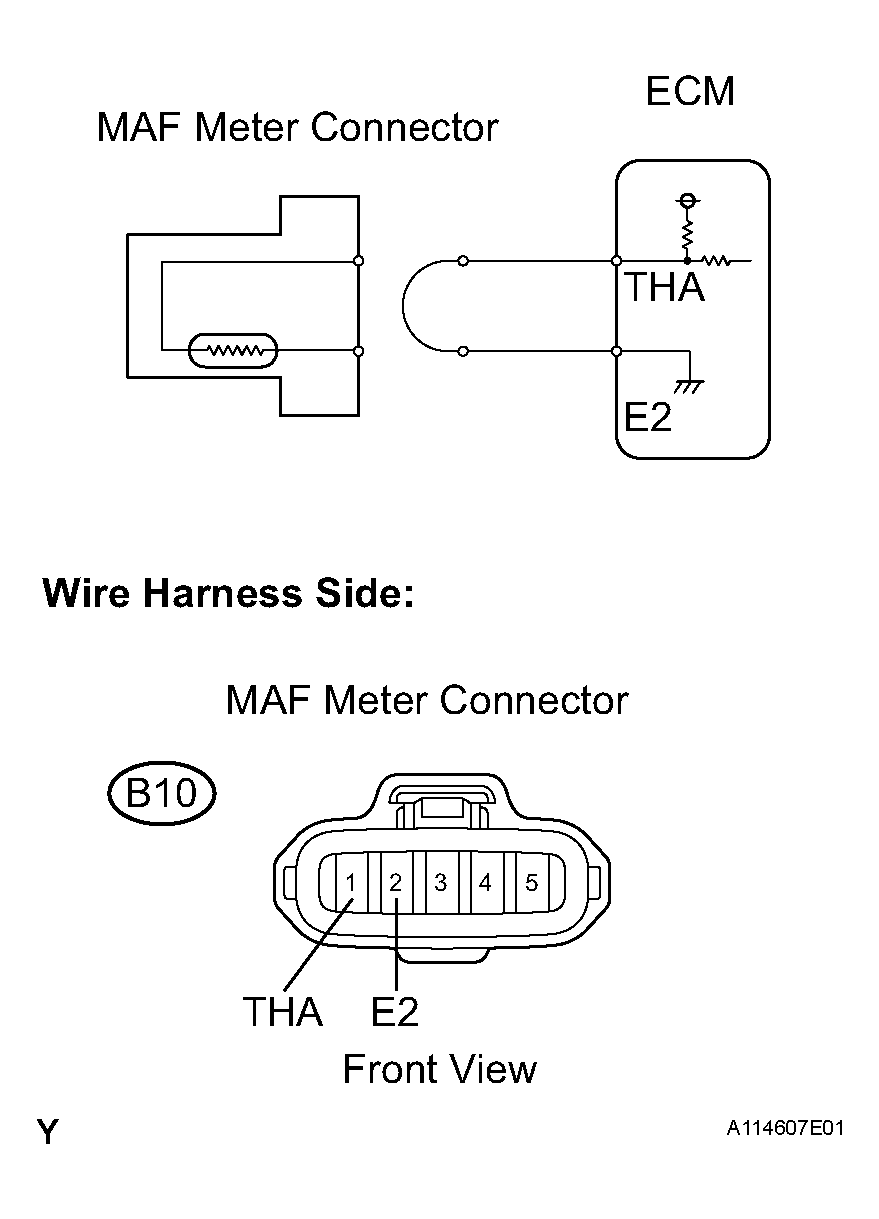

  Fig 1: Connecting Terminals THA And E2 Of MAF Meter Wire Harness Side Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect terminals THA and E2 of the MAF meter wire harness side connector.
3. Connect the intelligent tester to the DLC3.
4. Turn the ignition switch on (IG).
5. Turn the tester on.
6. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
7. Read the value displayed on the tester.
  Standard:

  140°C (284°F) or higher
8. Reconnect the MAF meter connector.
OK: CONFIRM GOOD CONNECTION TO SENSOR. IF OK, REPLACE MASS AIR FLOW METER

NG: Go to Next Step
READ VALUE OF INTELLIGENT TESTER (CHECK FOR OPEN IN ECM)
1. Disconnect the B10 MAF meter connector.

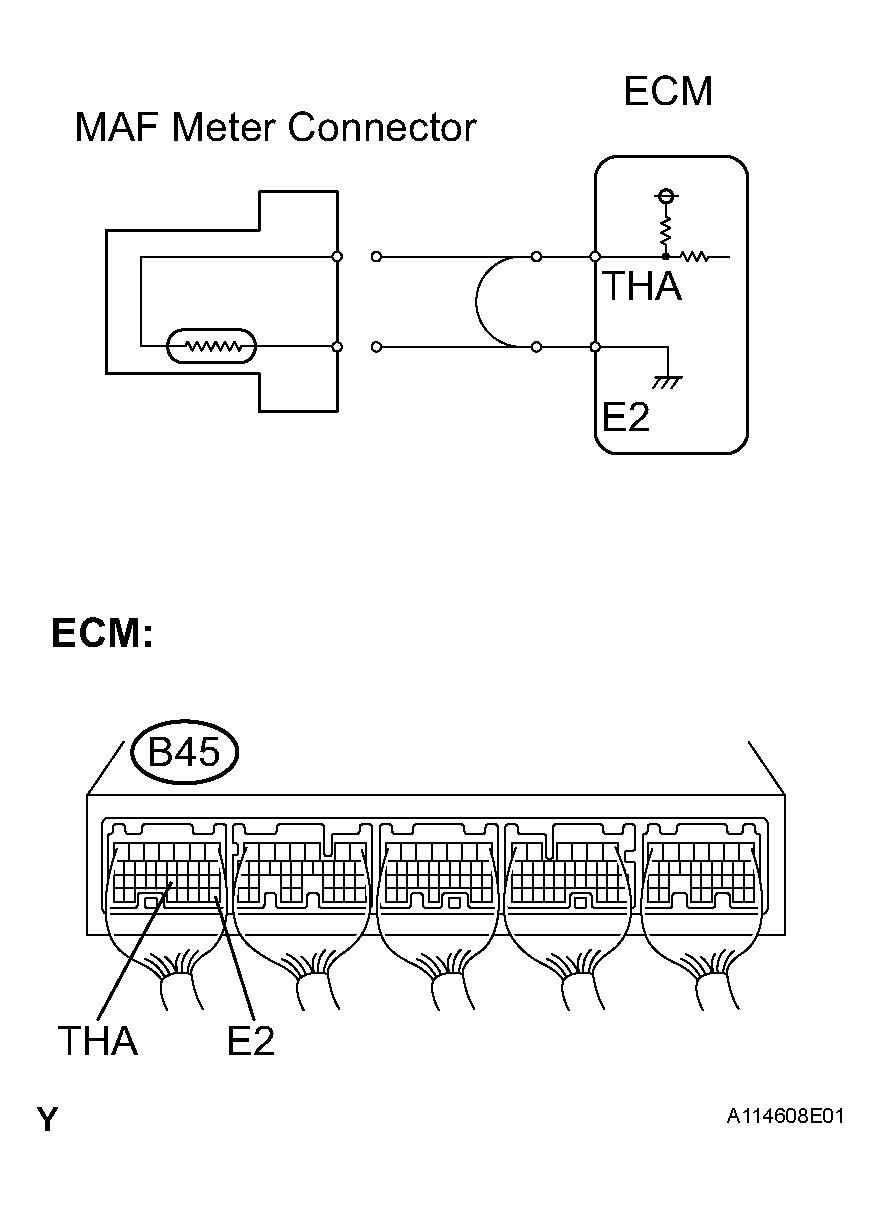

  Fig 2: Connecting Terminals THA And E2 Of B45 ECM Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect terminals THA and E2 of the B45 ECM connector.
  HINT:

  Before checking, do visual and contact pressure checks on the ECM connector.
3. Connect the intelligent tester to the DLC3.
4. Turn the ignition switch on (IG).
5. Turn the tester on.
6. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
7. Read the value displayed on the tester.
  Standard:

  140°C (284°F) or higher
8. Reconnect the MAF meter connector.
OK: REPAIR OR REPLACE HARNESS OR CONNECTOR

NG: CONFIRM GOOD CONNECTION TO ECM. IF OK, REPLACE ECM
READ VALUE OF INTELLIGENT TESTER (CHECK FOR SHORT IN WIRE HARNESS)
1. Disconnect the B10 MAF meter connector.

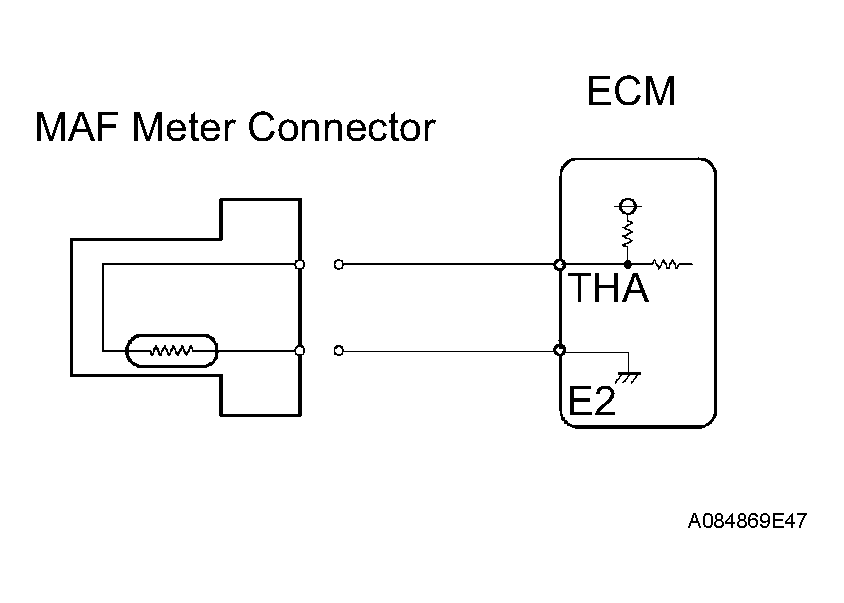

  Fig 3: Reconnecting MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the intelligent tester to the DLC3.
3. Turn the ignition switch on (IG).
4. Turn the tester on.
5. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
6. Read the value displayed on the tester.
  Standard:

  -40°C (-40°F)
7. Reconnect the MAF meter connector.
OK: CONFIRM GOOD CONNECTION TO SENSOR. IF OK, REPLACE MASS AIR FLOW METER

NG: Go to Next Step
READ VALUE OF INTELLIGENT TESTER (CHECK FOR SHORT IN ECM)
1. Disconnect the B45 ECM connector.

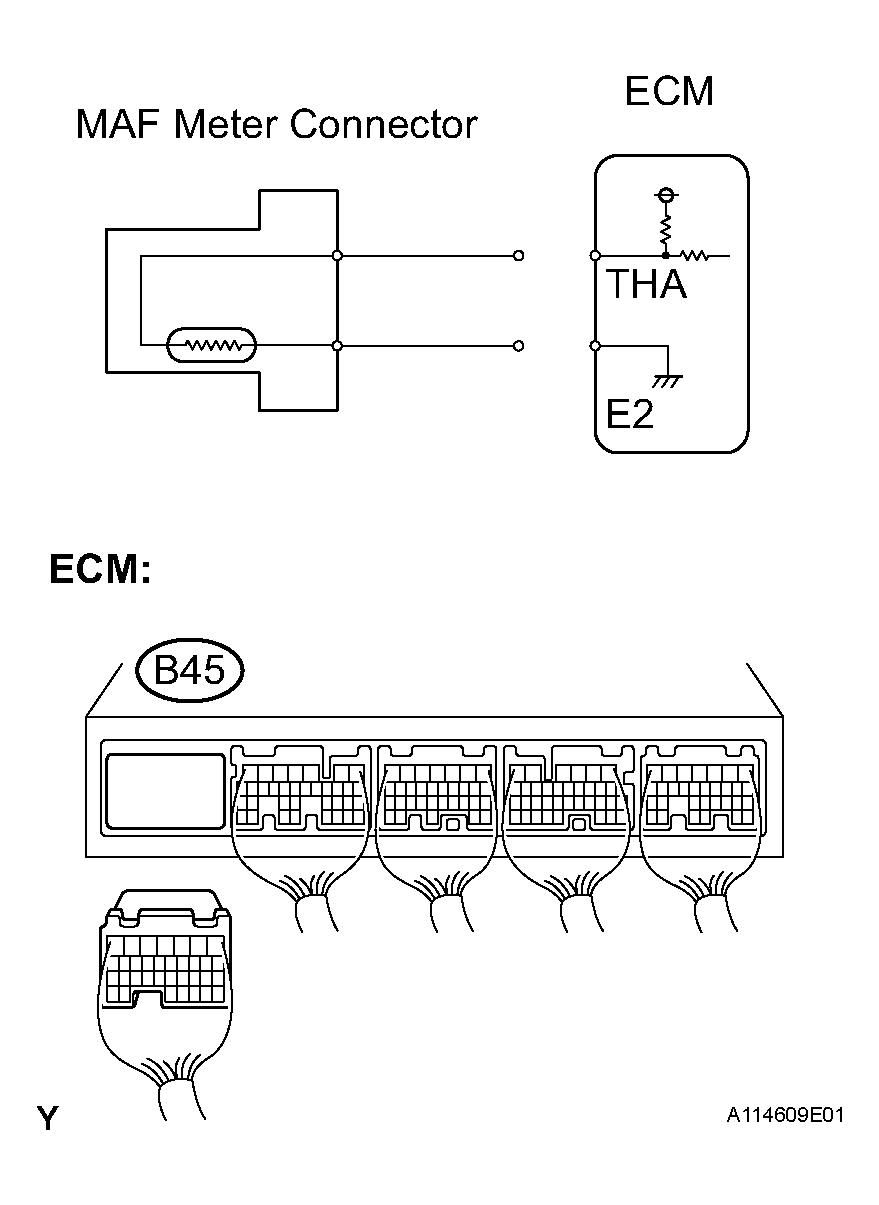

  Fig 4: Identifying B45 ECM Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the intelligent tester to the DLC3.
3. Turn the ignition switch on (IG).
4. Turn the tester on.
5. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
6. Read the value displayed on the tester.
  Standard:

  -40°C (-40°F)
7. Reconnect the ECM connector.
OK: REPAIR OR REPLACE HARNESS OR CONNECTOR

NG: REPLACE ECM
