Cruise Control Main Switch: Removal

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

DISCONNECT BATTERY NEGATIVE TERMINAL
1. Wait for 90 seconds after disconnecting the cable to prevent the airbag working (PRECAUTION ).
REMOVE STEERING WHEEL COVER LOWER NO. 2 (See REMOVAL )
REMOVE STEERING WHEEL COVER LOWER NO. 3 (See REMOVAL )
REMOVE HORN BUTTON ASSEMBLY (See REMOVAL )
REMOVE CRUISE CONTROL MAIN SWITCH
1. Disconnect the connector.

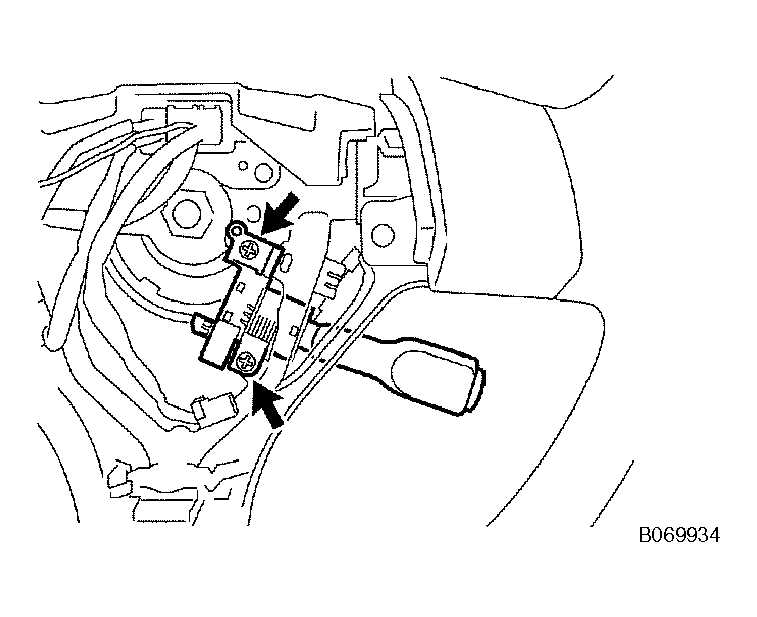

  Fig 1: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and cruise control main switch.

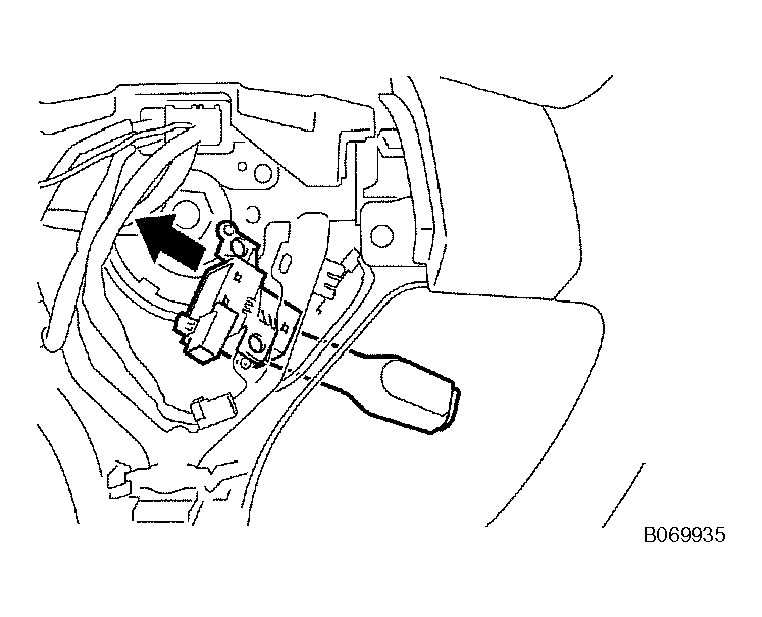

  Fig 2: Removing Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
