System Diagram
WARNING:
This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

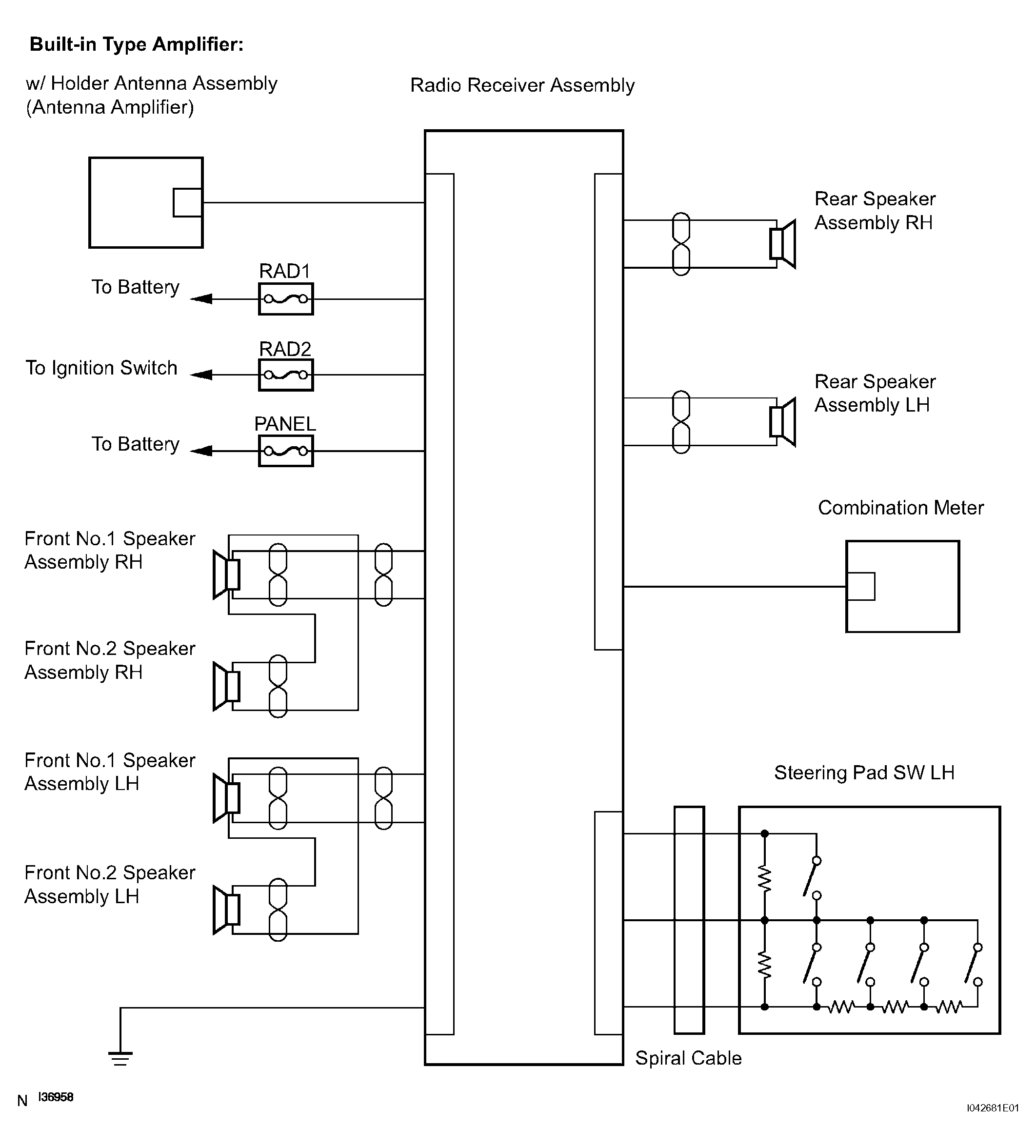

Fig 1: Audio And Visual System Diagram (Built-In Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

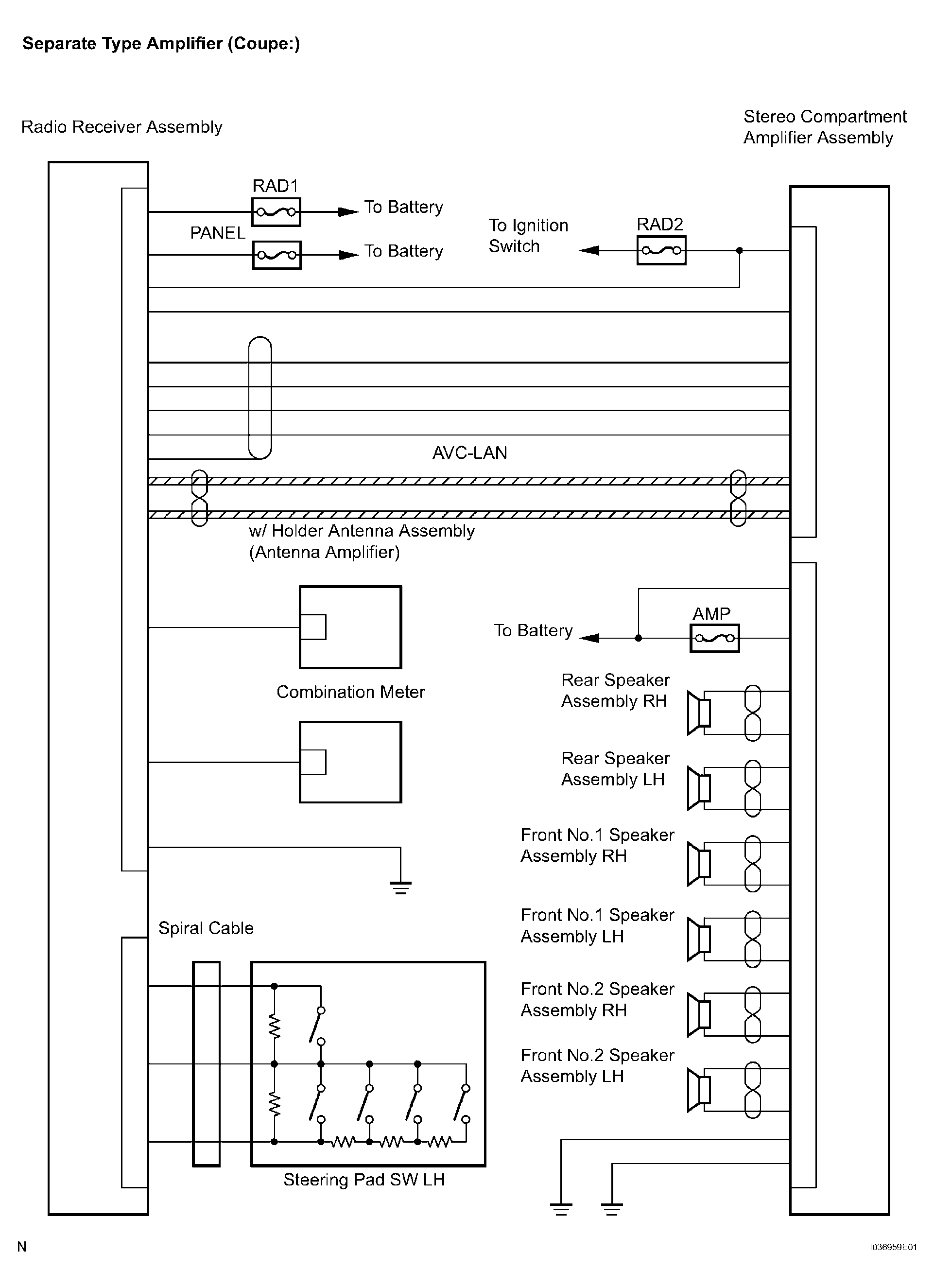

Fig 2: Audio And Visual System Diagram (Separate Type Amplifier, Coupe)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

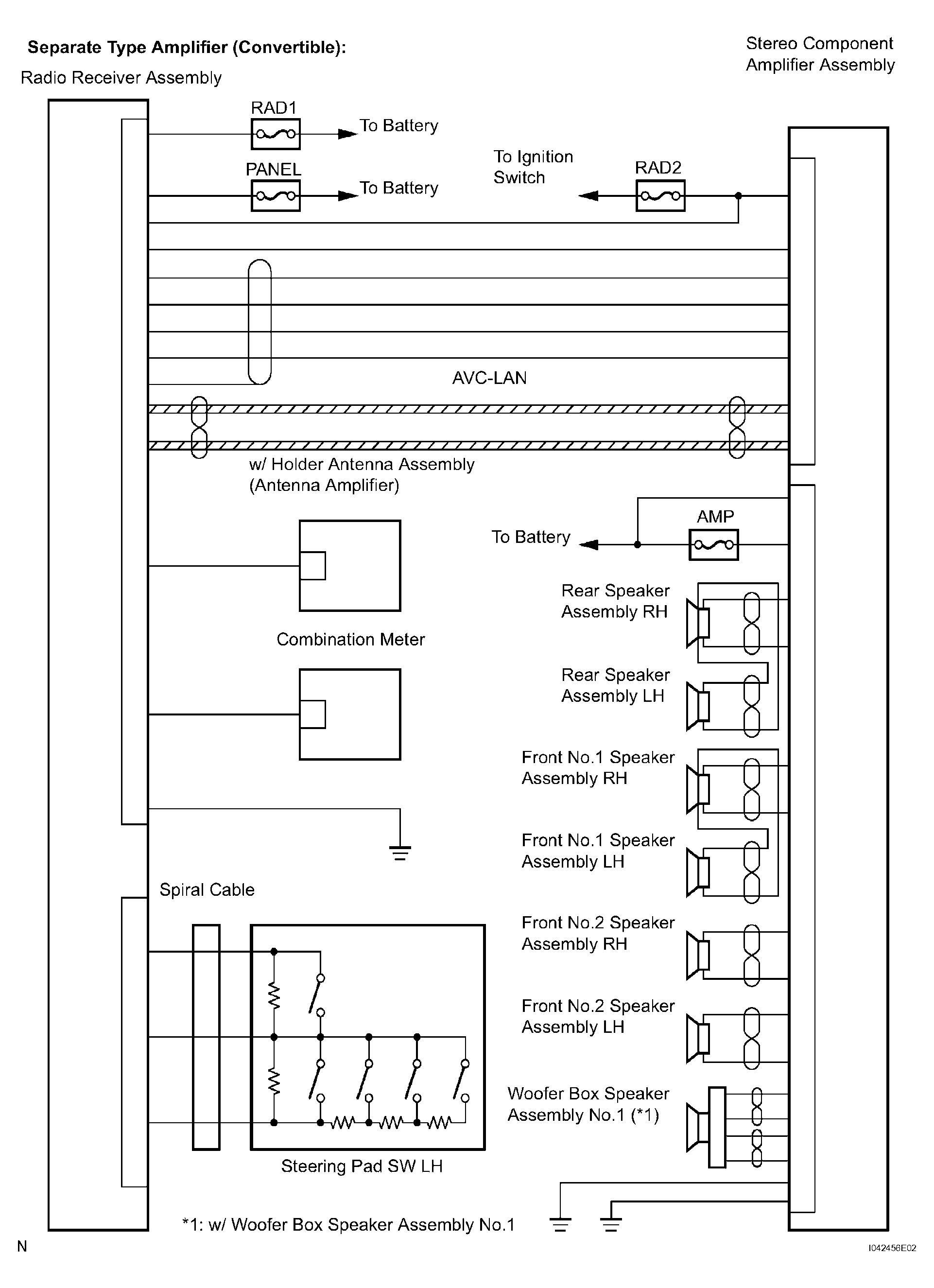

Fig 3: Audio And Visual System Diagram (Separate Type Amplifier, Convertible)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
