Radio Receiver: Components

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

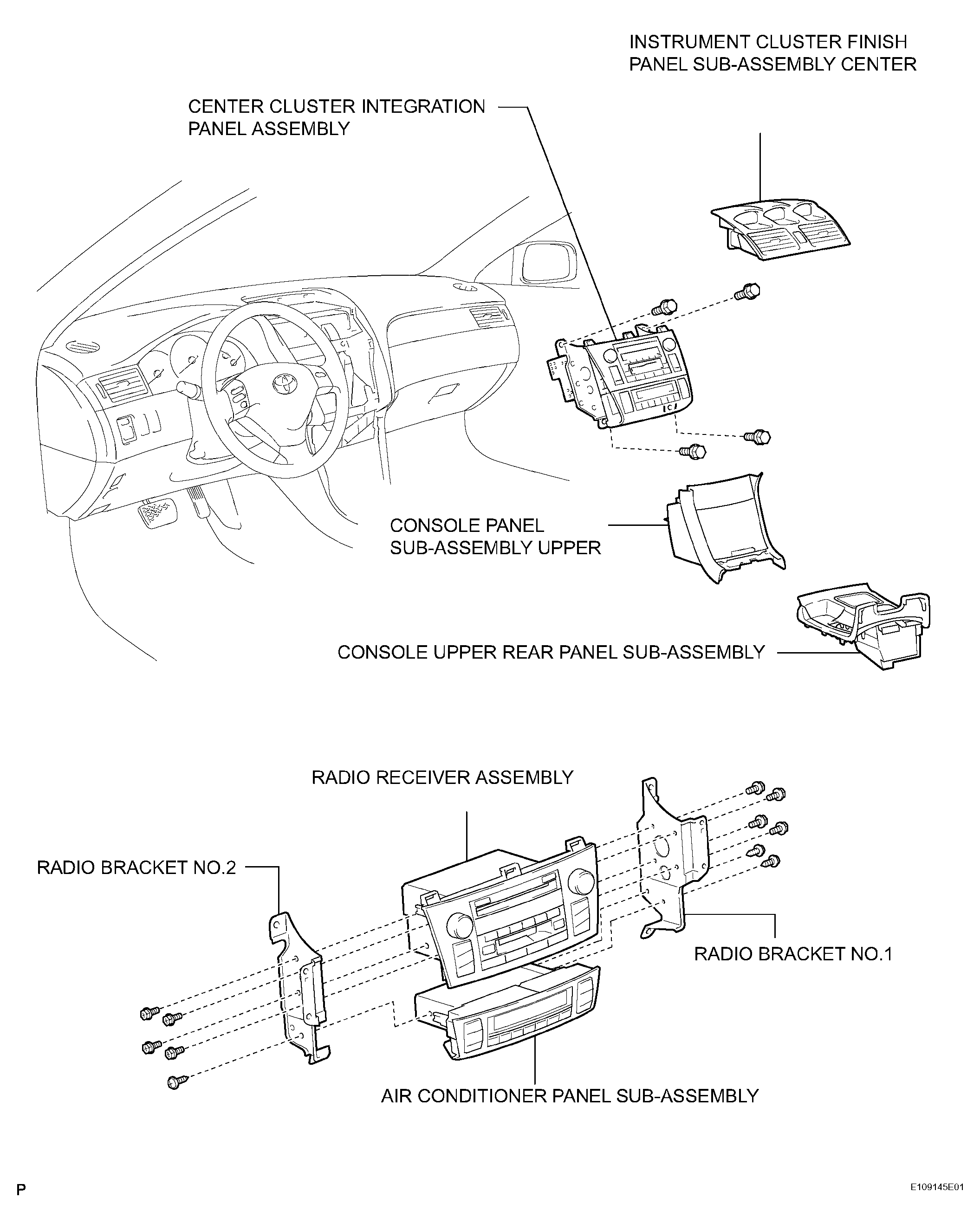

Fig 1: Exploded View Of Radio Receiver Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

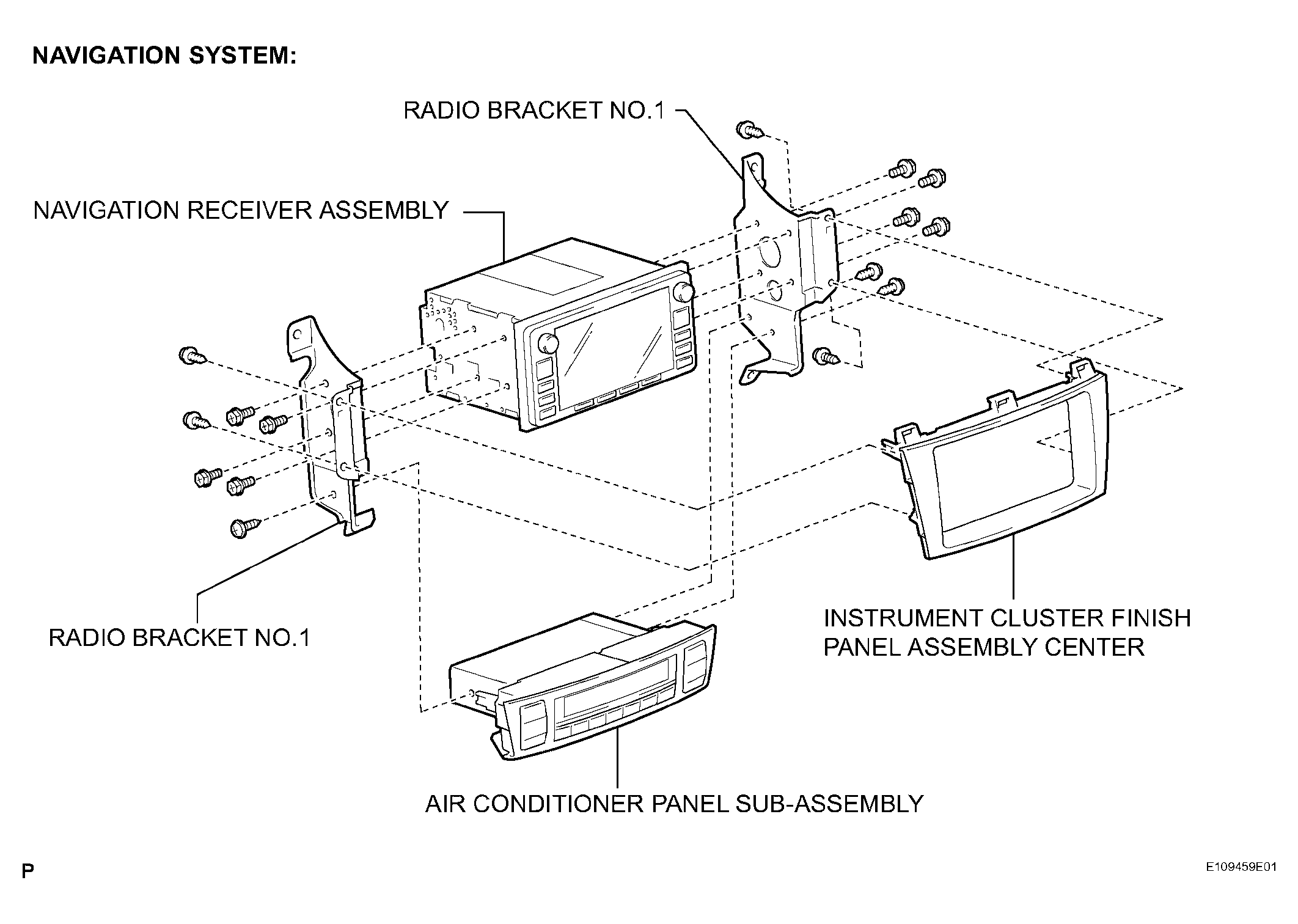

Fig 2: Exploded View Of Radio Receiver Components (Navigation System)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

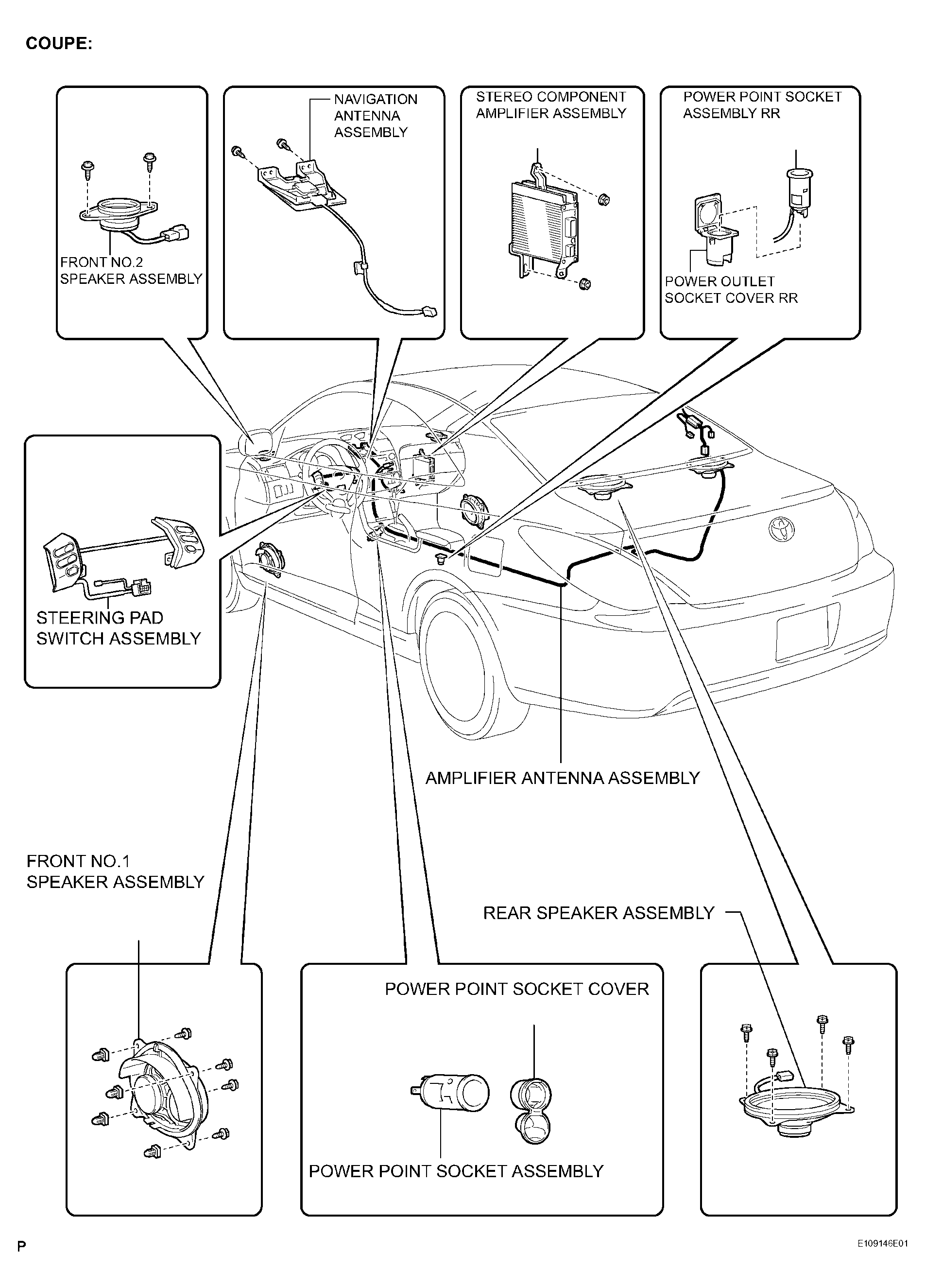

Fig 3: Locating Radio Receiver Components (Coupe)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

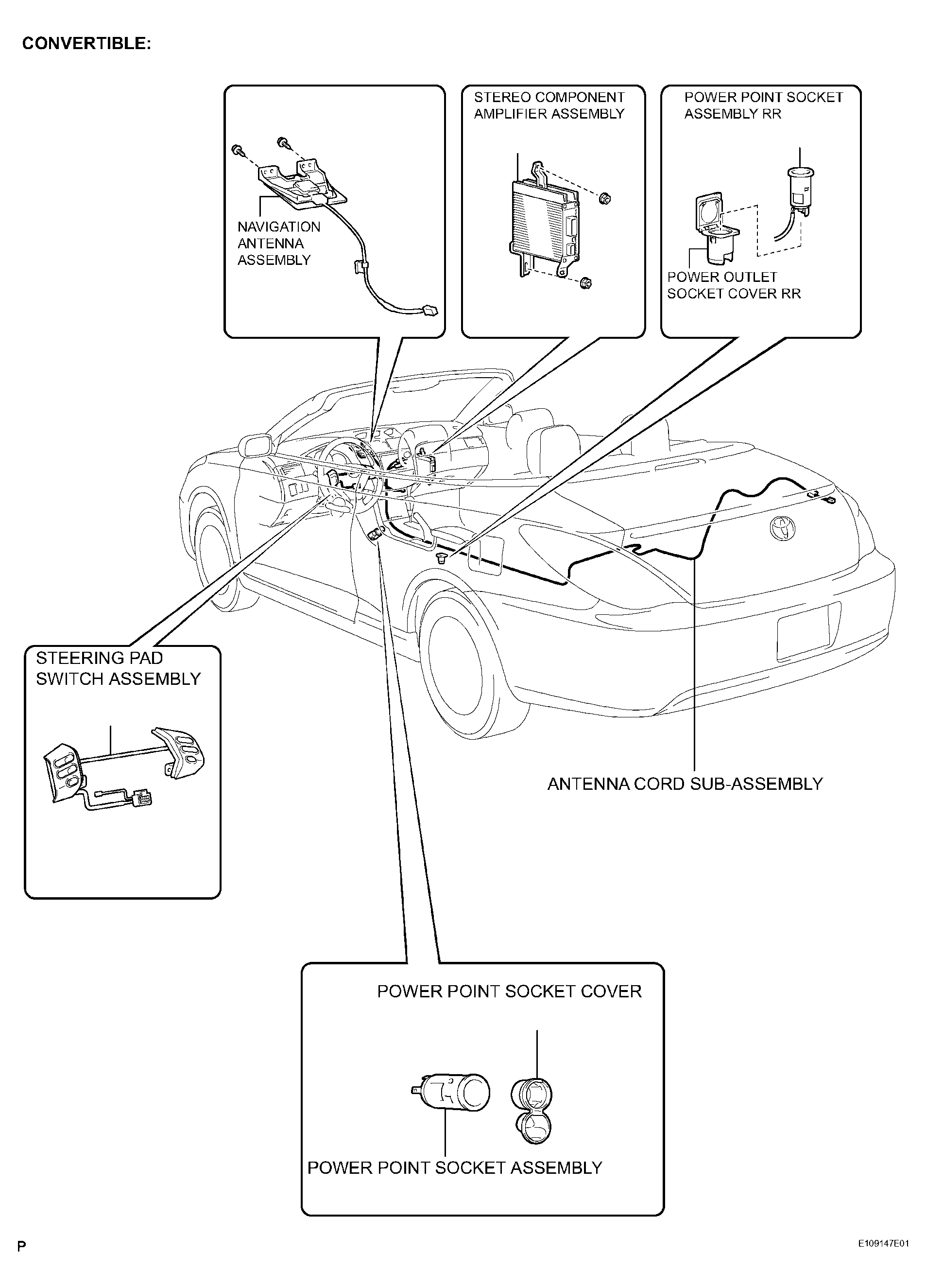

Fig 4: Locating Radio Receiver Components (Convertible)

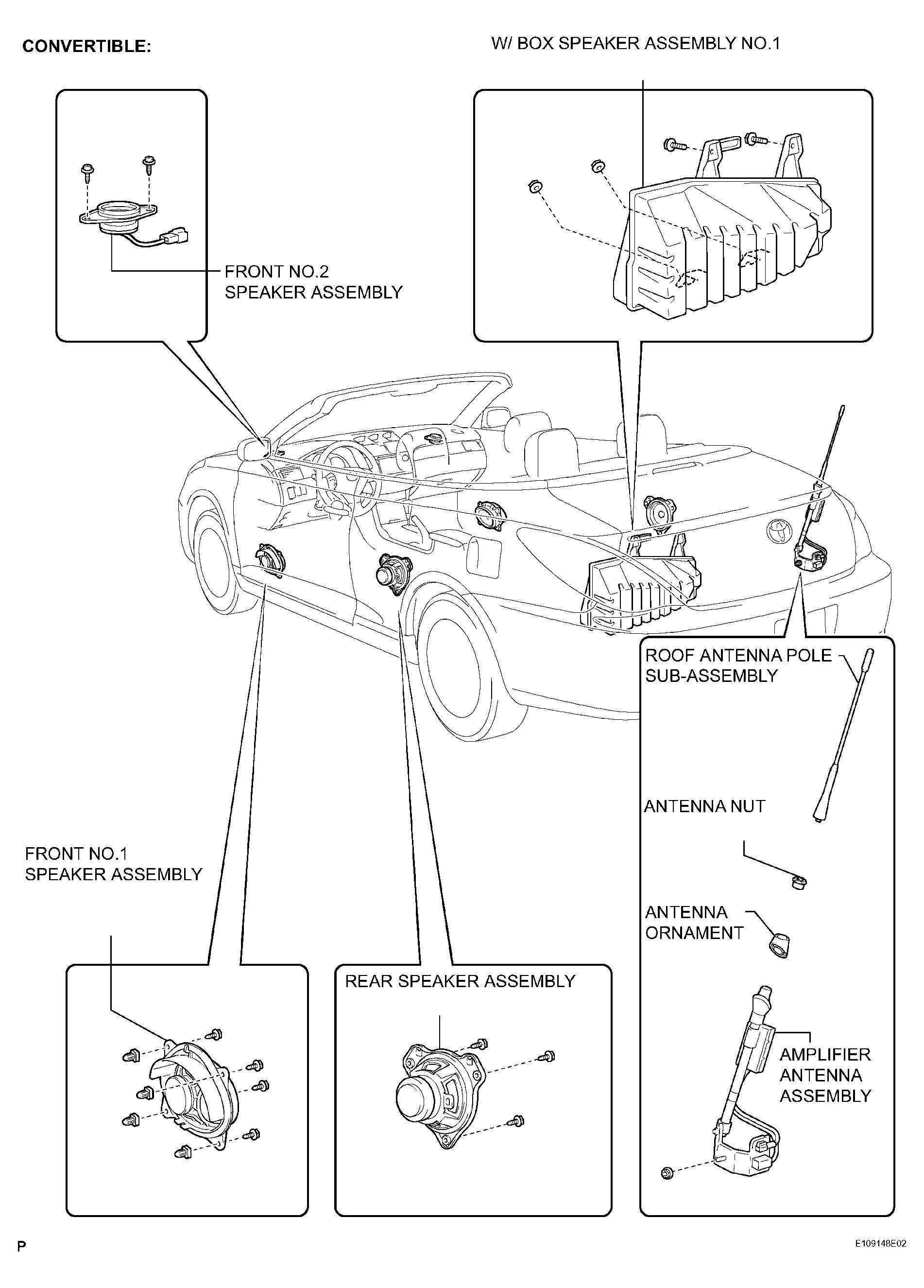

Fig 5: Locating Radio Receiver Components (Convertible W/Box Speaker Assembly No.1)
