Navigation Receiver: Removal

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See RADIO RECEIVER
Installation is in the reverse order of removal.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL )
REMOVE CONSOLE UPPER REAR PANEL SUBASSEMBLY (See REMOVAL )
REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER (See REMOVAL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER (See REMOVAL )

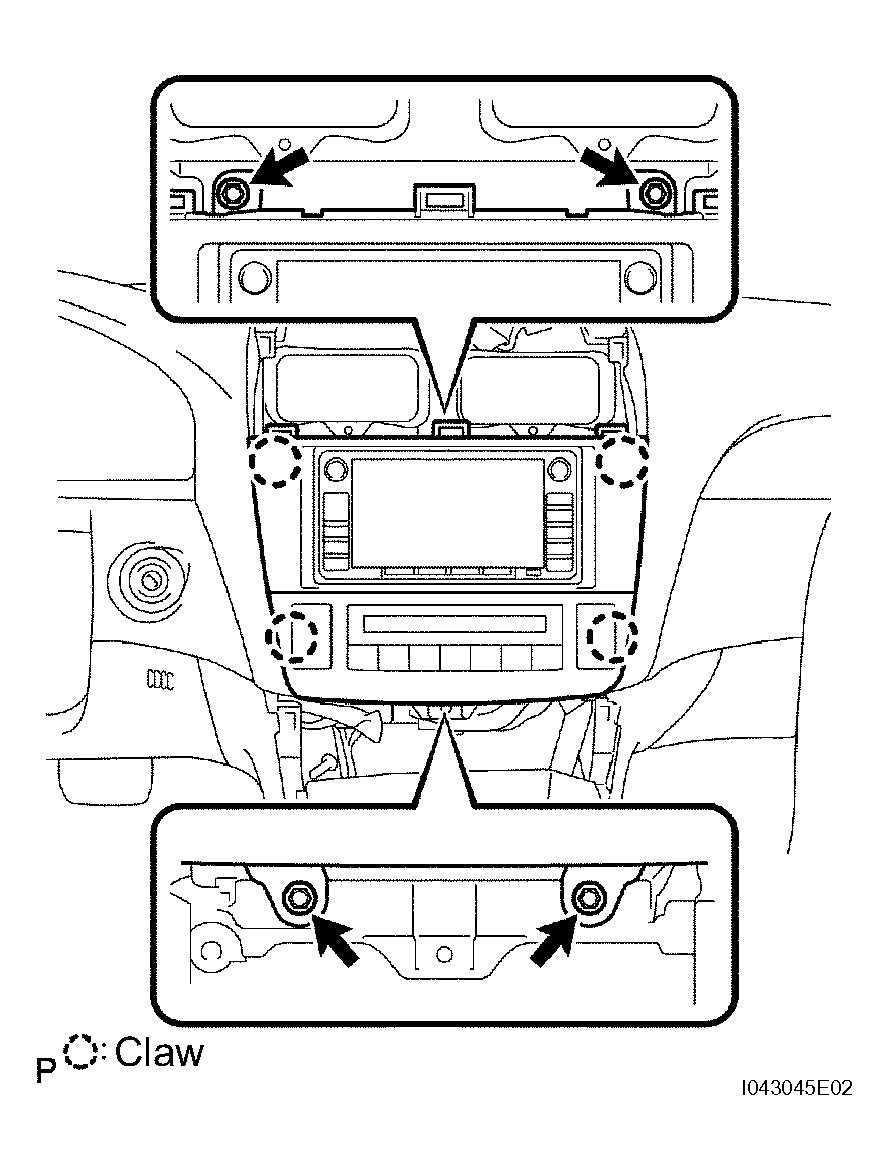

REMOVE CENTER CLUSTER INTEGRATION PANEL ASSEMBLY
1. Remove the 4 bolts.
2. Disconnect the connector.
3. Disengage the 4 claws and remove the center cluster integration panel assembly.

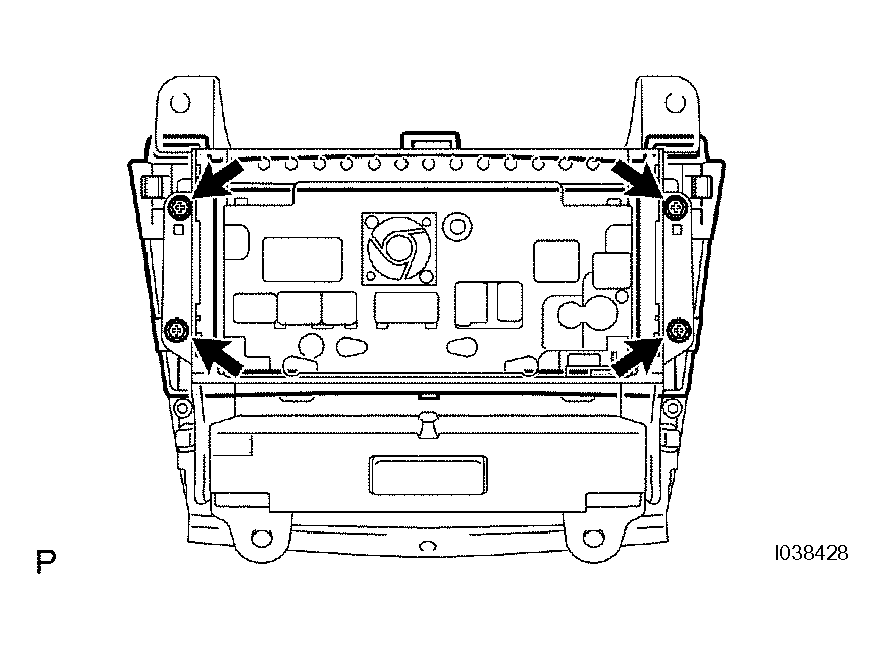

REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
1. Remove the 4 bolts and instrument cluster finish panel assembly center.

  Fig 2: Removing Bolts And Instrument Cluster Finish Panel Assembly Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER BRACKET NO.1
1. Remove the 6 screws and radio receiver bracket No.1.

  Fig 3: Removing Screws And Radio Receiver Bracket No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER BRACKET NO.1
1. Remove the 5 screws and radio receiver bracket No.1.

  Fig 4: Removing Screws And Radio Receiver Bracket No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NAVIGATION RECEIVER ASSEMBLY
