Display Check Mode

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the color display on the radio and navigation assembly.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

ENTER DIAGNOSTIC MODE (See DTC CHECK/CLEAR )
DISPLAY CHECK
1. Select "Display Check" from the "Diagnosis MENU" screen.

  Fig 1: Selecting "Display Check" From "Diagnosis MENU" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COLOR BAR CHECK
1. Select "Color Bar Check" from the "Display Check" screen.

  Fig 2: Selecting "Color Bar Check" From "Display Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select a color bar from the "Color Bar Check Mode" screen.
  HINT:
  - The entire screen turns to the color or stripe selected.
  - Touching the display will return to the "Color Bar Check" screen.

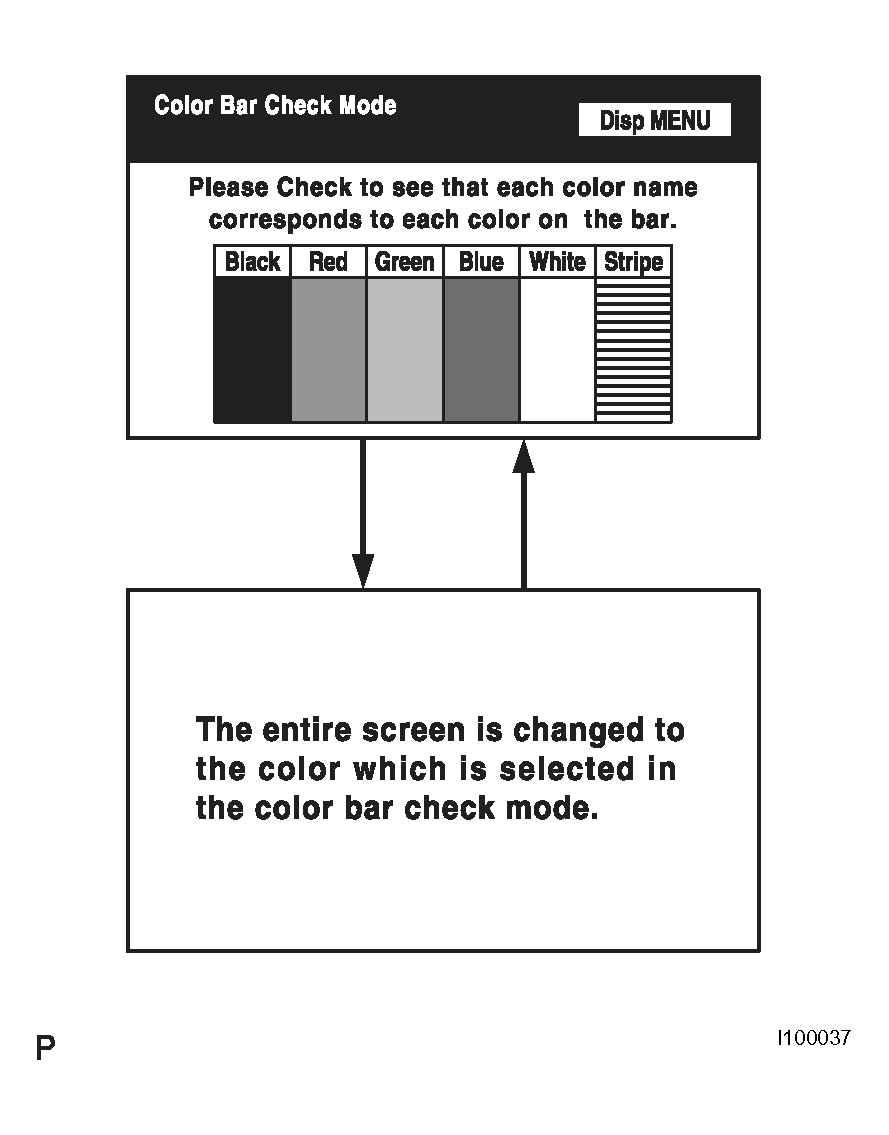

    Fig 3: Displaying "Color Bar Check Mode" Screen
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TOUCH SWITCH CHECK
1. Select "Touch Switch Check" from the "Display Check" screen.

  Fig 4: Selecting "Touch Switch Check" From "Display Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.
  HINT:
  - A "+" mark is displayed where the display is touched.
  - The "+" mark remains on the display even after the finger is removed.

    Fig 5: Displaying "Touch Switch Check" Screen
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PANEL SWITCH CHECK

Select "Panel Switch Check" from the "Display Check" screen.

Fig 6: Selecting "Panel Switch Check" From "Display Check" Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Operate each switch and check that the switch name and condition are correctly displayed.

SCREEN DESCRIPTION

Display	Contents
Push switch name/*1	Name of the pressed switch is displayed. If more than one switch is pressed, "MULTIPLE" is displayed.
Rotary switch name/*2	Name of the rotary switch is displayed.
Rotary switch direction/*3	Direction of the rotary switch is rotated.

Fig 7: Displaying Panel Switch Check Mode Screen

VEHICLE SIGNAL CHECK
1. Select "Vehicle Signal Check" from the "Display Check" screen.

  Fig 8: Selecting "Vehicle Signal Check" From "Display Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

  Fig 9: Displaying "Vehicle Signal Check Mode" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Only conditions having inputs are displayed.
  - This screen is updated once per second when input signals to the vehicle are changed.
