MAP Disc Read Error

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MAP DISC
1. Check for dirt on the map disc surface.
  OK: No dirt is on the map disc surface.

  HINT:

  If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

  NOTE: Do not use a conventional record cleaner or anti-static preservative.

  Fig 1: Checking For Dirt On Map Disc Surface
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: CLEAN MAP DISC

OK: GO TO NEXT STEP
CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks appear on the map disc.

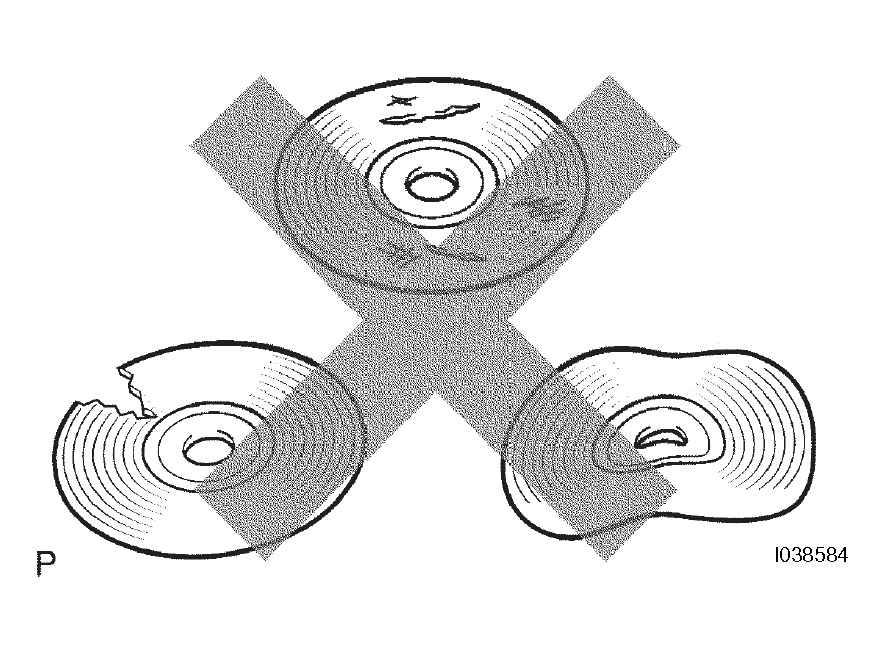

  Fig 2: Checking Map Disc For Deformed Or Cracked
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE MAP DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART
