Navigation Check Mode

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode displays GPS satellite information.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

ENTER DIAGNOSTIC MODE (See DTC CHECK/CLEAR )
NAVIGATION CHECK
1. Select "Navigation Check" from the "Diagnosis MENU" screen.

  Fig 1: Selecting "Navigation Check" From "Diagnosis MENU" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GPS INFORMATION
1. Select "GPS Information" from the "Navigation Check" screen.

  Fig 2: Selecting "GPS Information" From "Navigation Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. When GPS information is displayed, check the GPS conditions.
  HINT:

  This screen is updated once per second when input signals to the vehicle are changed.

  Fig 3: Displaying GPS Information Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
VEHICLE SENSORS
1. Select "Vehicle Sensors" from the "Navigation Check" screen.

  Fig 4: Selecting "Vehicle Sensors" From "Navigation Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check all the signals and sensors when vehicle signal information is displayed.
  HINT:

  This screen is updated once per second when input signals to the vehicle are changed.

  Fig 5: Checking All Signals And Sensors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COLOR BAR CHECK
1. Select "Color Bar Check" from the "Navigation Check" screen.

  Fig 6: Selecting "Color Bar Check" From "Navigation Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.
  HINT:

  Colors will not be displayed full-screen as in "Display Check Mode".

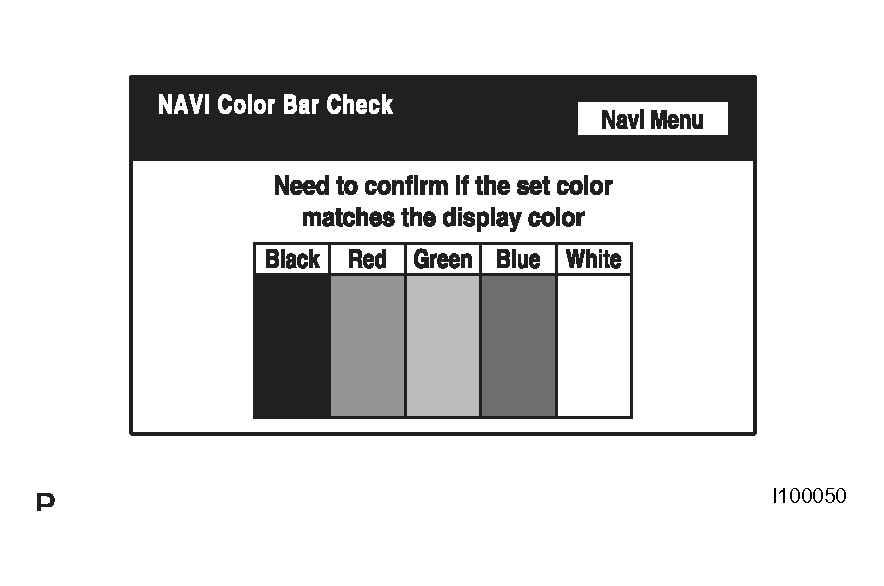

  Fig 7: Checking Each Color Of Color Bar When "NAVI Color Bar Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PARTS INFORMATION

Select "Parts Information" from the "Navigation Check" screen.

Fig 8: Selecting "Parts Information" From "Navigation Check" Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the navigation and disc information when the "Parts Information" screen is displayed.

SCREEN DESCRIPTION

Display	Contents
Navigation Manufacturer/*1	Radio and navigation assembly manufacturer name is displayed.
Navigation Version/*2	Radio and navigation assembly version is displayed.
Disc Manufacturer/*3	Map disc manufacturer is displayed.
Disc Version/*4	Map disc version is displayed.

Fig 9: Displaying Parts Information Screen
