Rear Shock Absorber With Coil Spring: Components

Fig 1: Identifying Rear Shock Absorber With Coil Spring Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

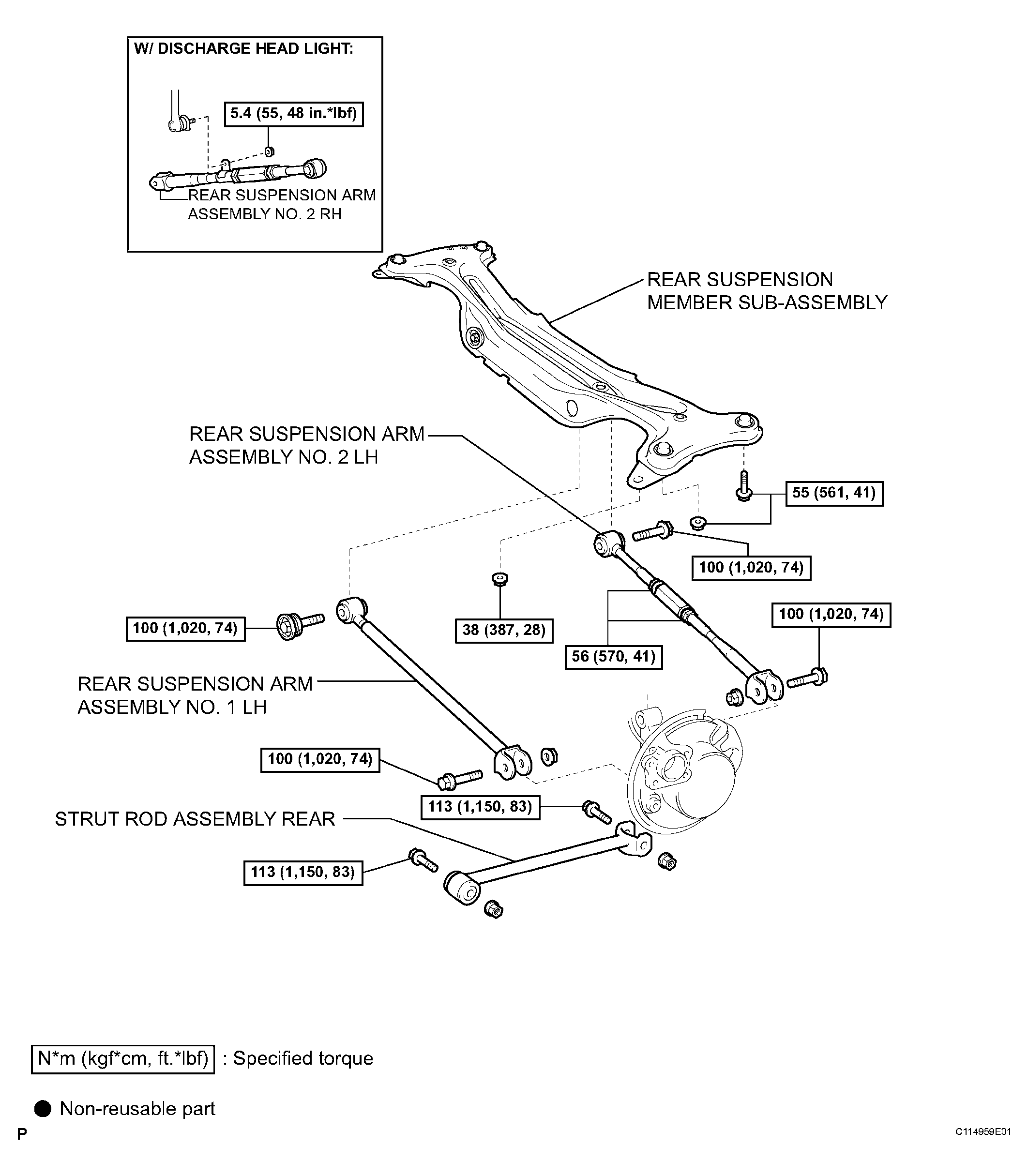

Fig 2: Rear Shock Absorber With Coil Spring Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

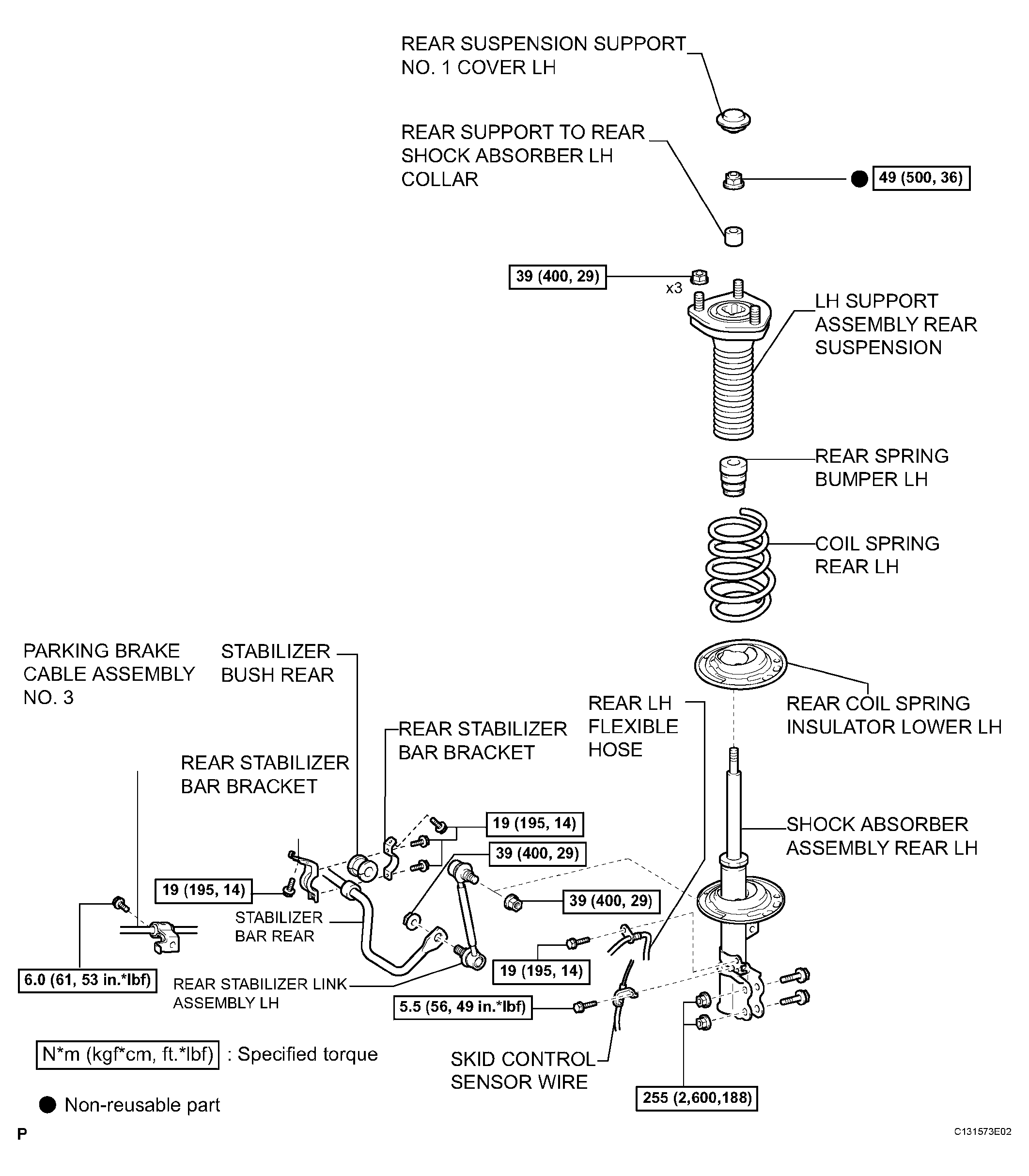

Fig 3: Rear Shock Absorber With Coil Spring Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
