Automatic Air Conditioning for 1MZ-FE: Notes

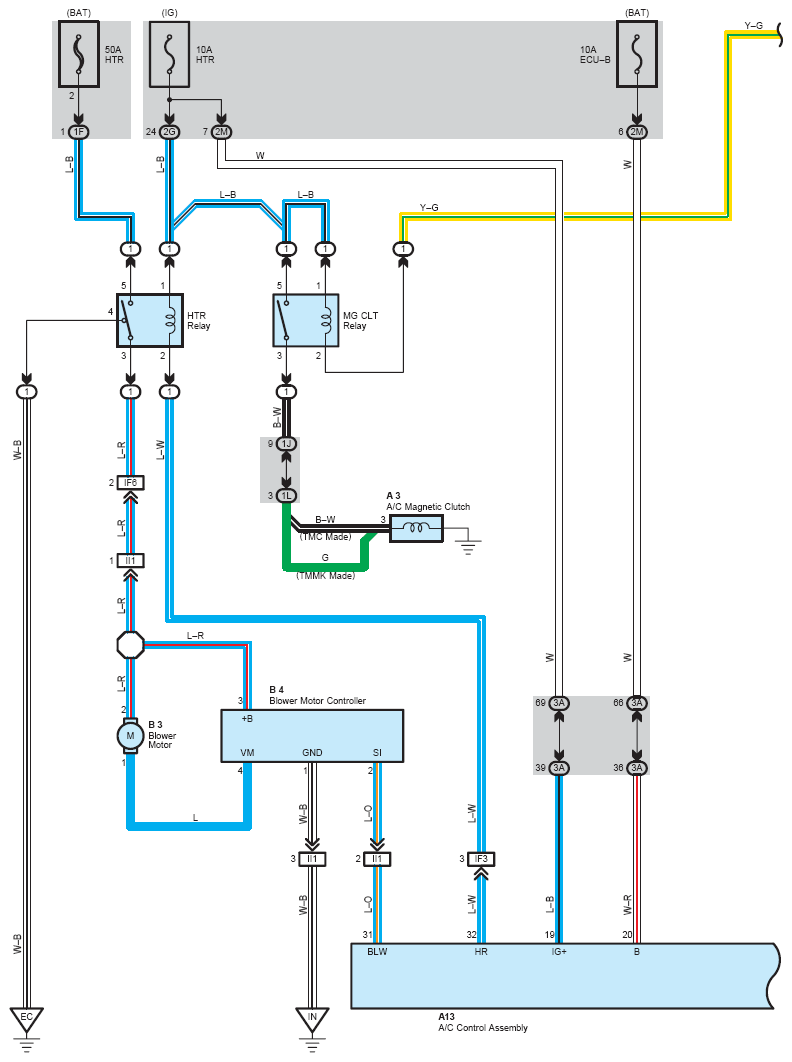

Fig 1: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (1 Of 4)
G08775667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

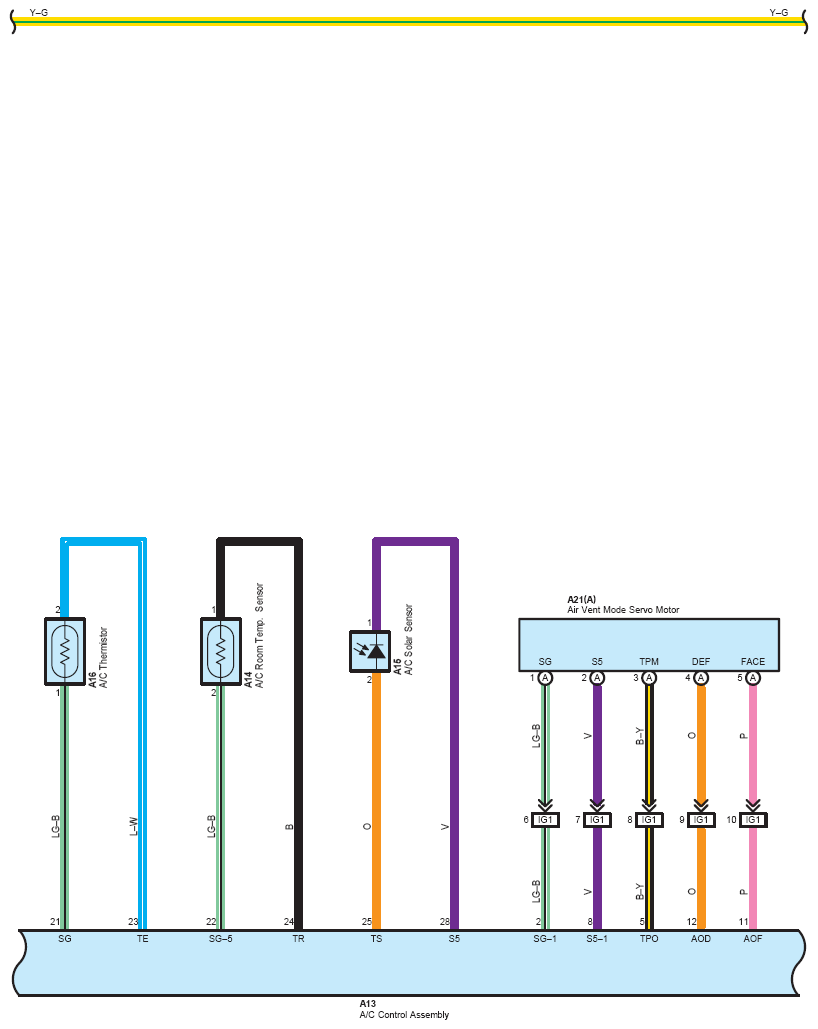

Fig 2: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (2 Of 4)
G08775668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

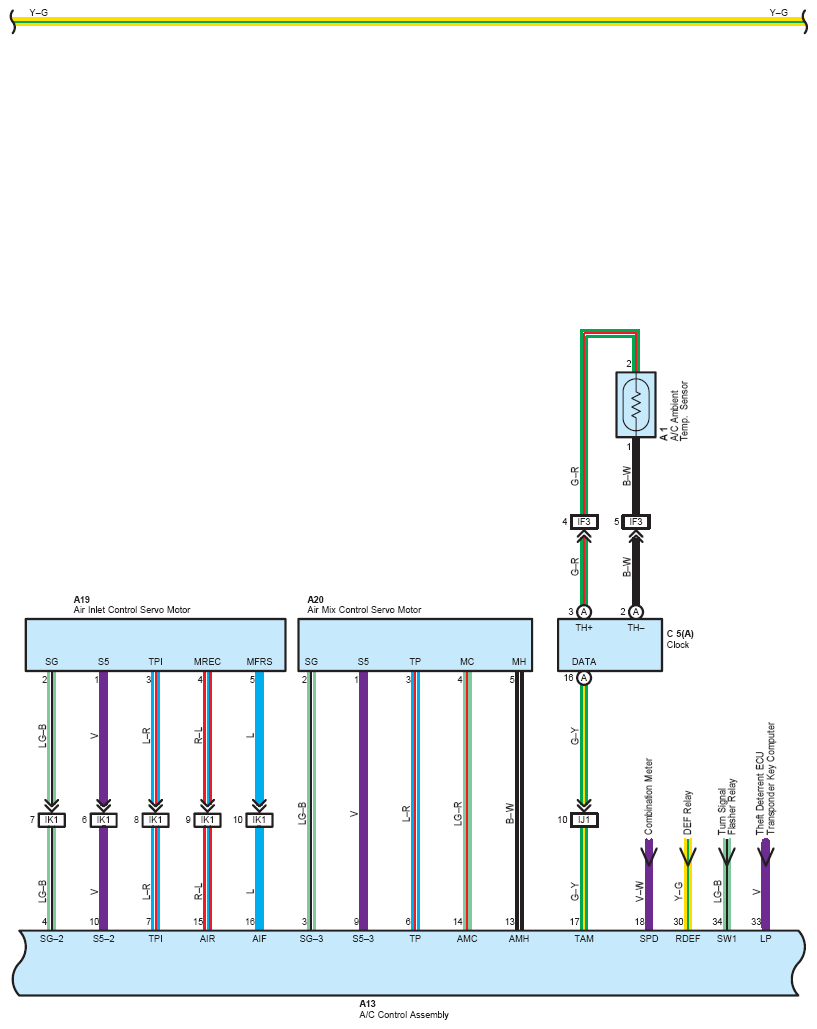

Fig 3: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (3 Of 4)
G08775669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

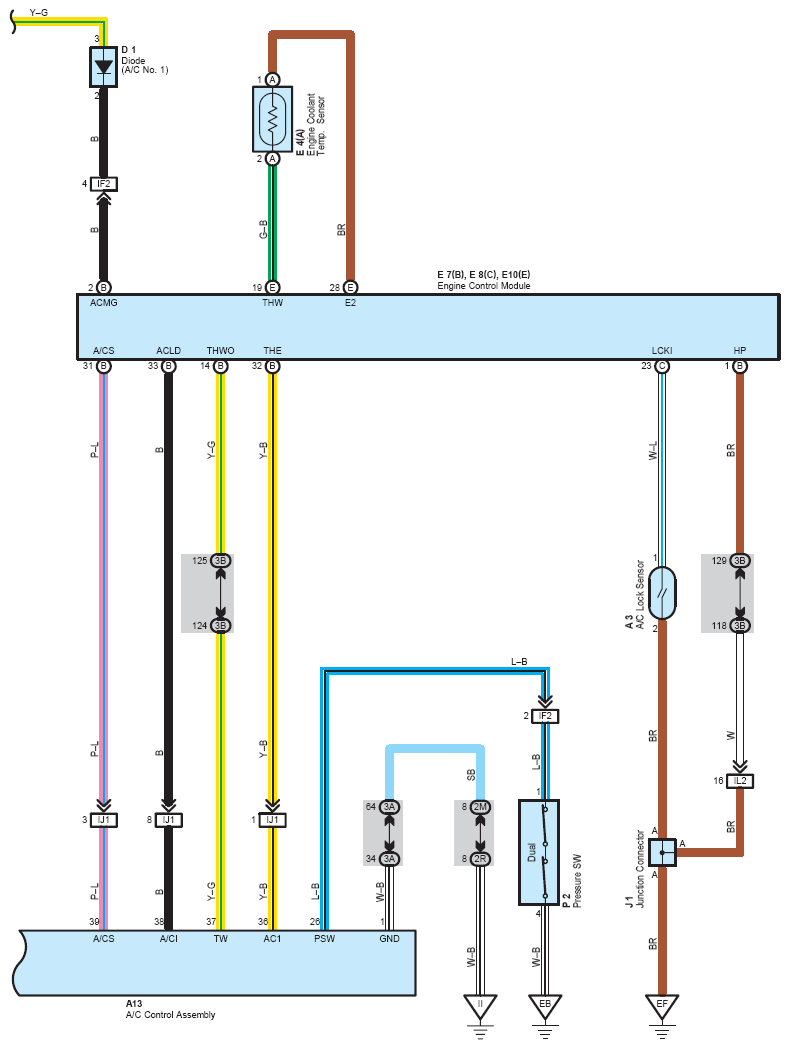

Fig 4: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (4 Of 4)
G08775670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
