Cruise Control for 2AZ-FE: Notes

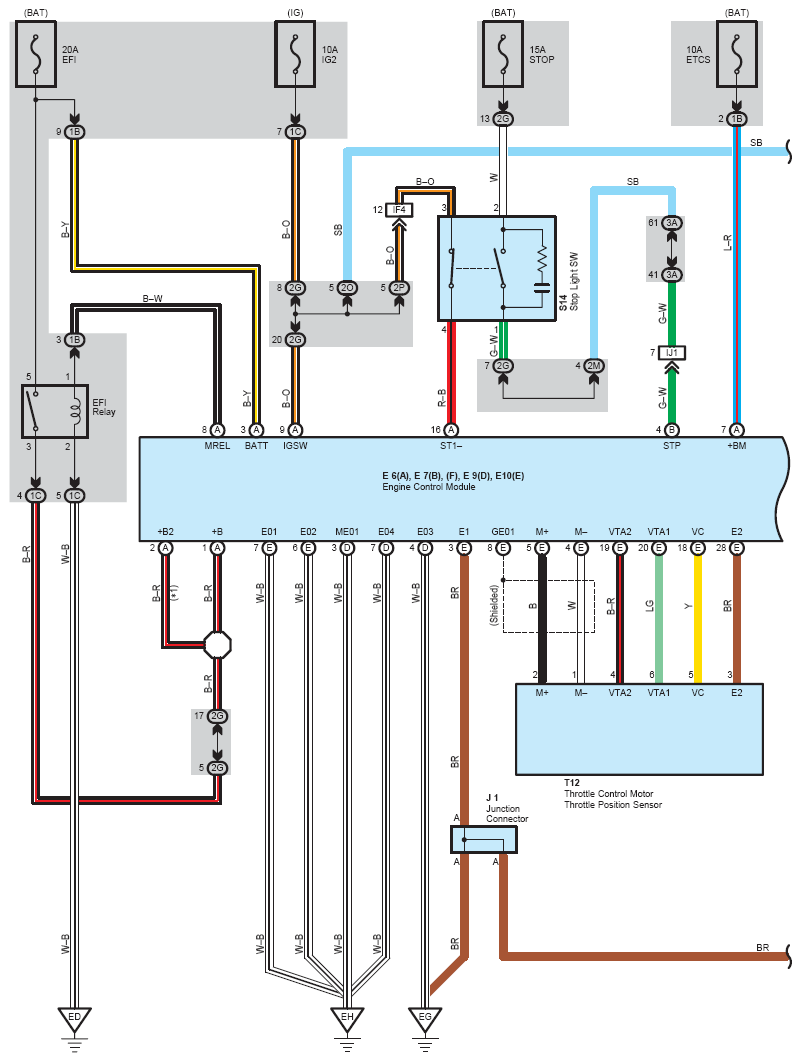

Fig 1: Cruise Control System Wiring Diagram - 2AZ-FE; (1 Of 3)
G08775629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

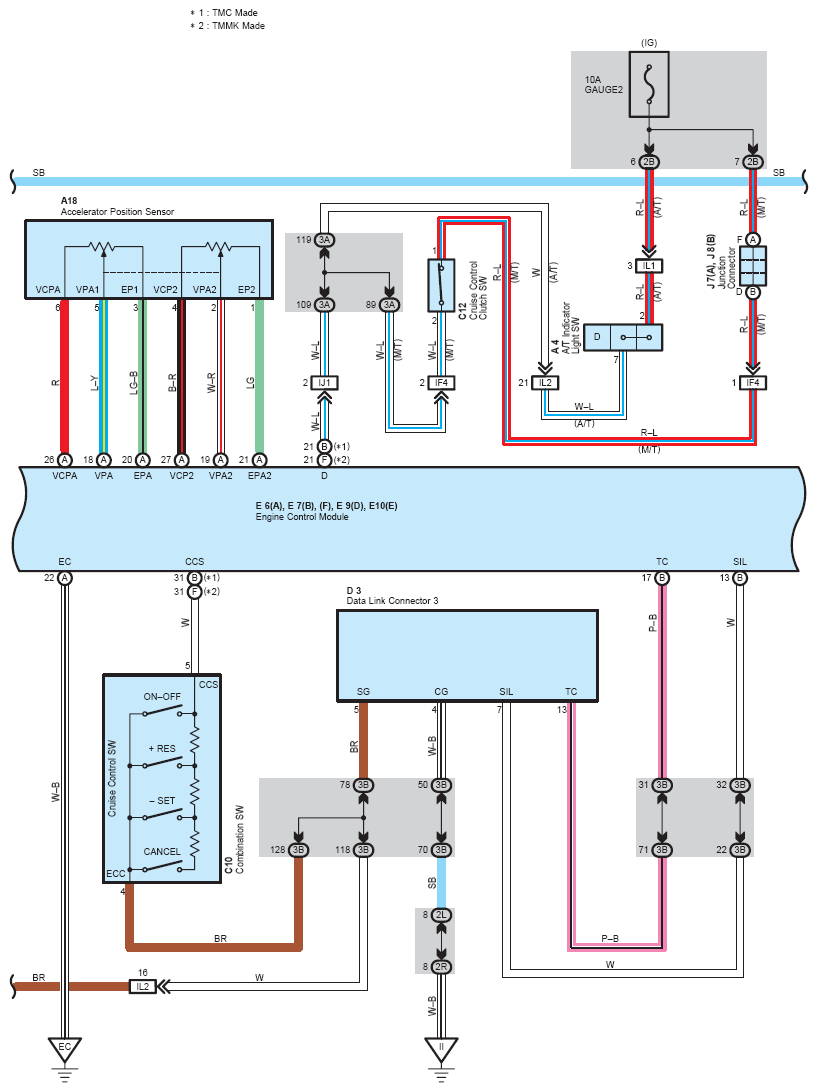

Fig 2: Cruise Control System Wiring Diagram - 2AZ-FE; (2 Of 3)
G08775630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

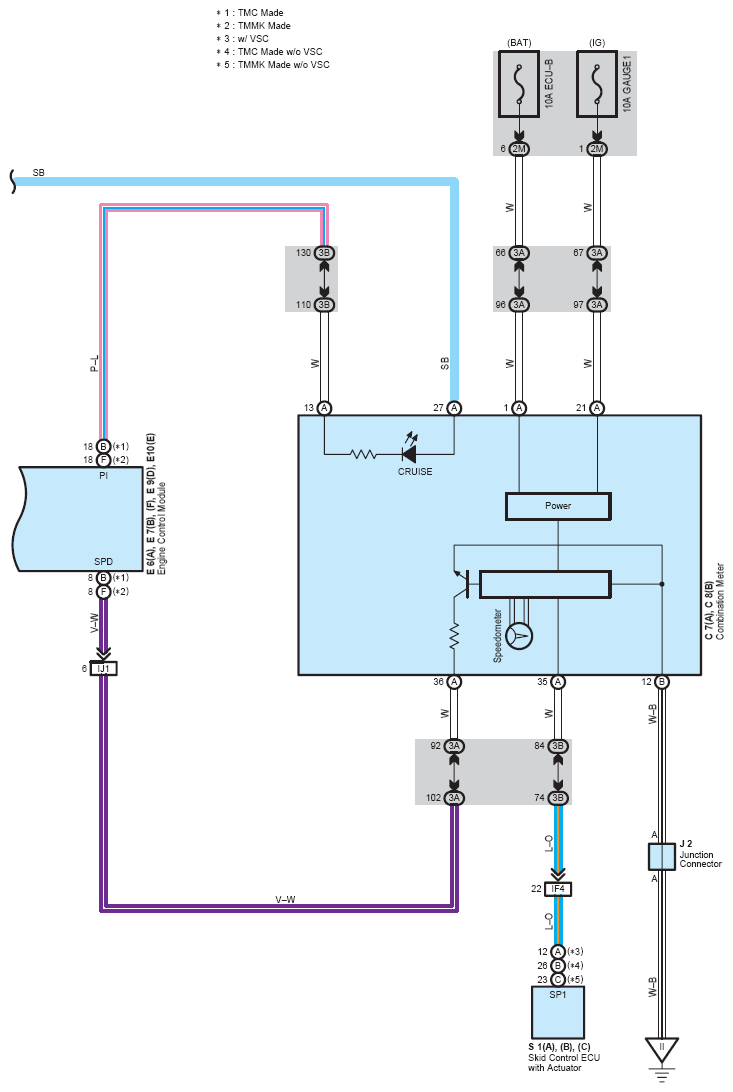

Fig 3: Cruise Control System Wiring Diagram - 2AZ-FE; (3 Of 3)
G08775631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
