Theft Deterrent and Door Lock Control: Notes

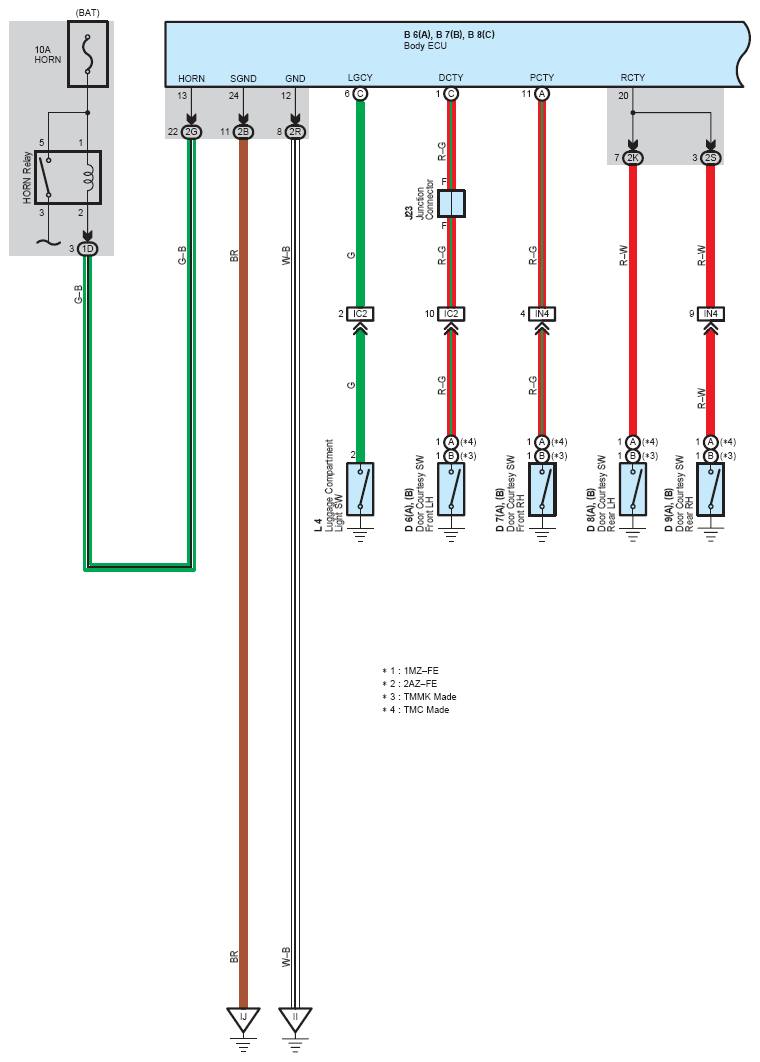

Fig 1: Theft Deterrent And Door Lock Control System Wiring Diagram (1 Of 4)
G08775602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

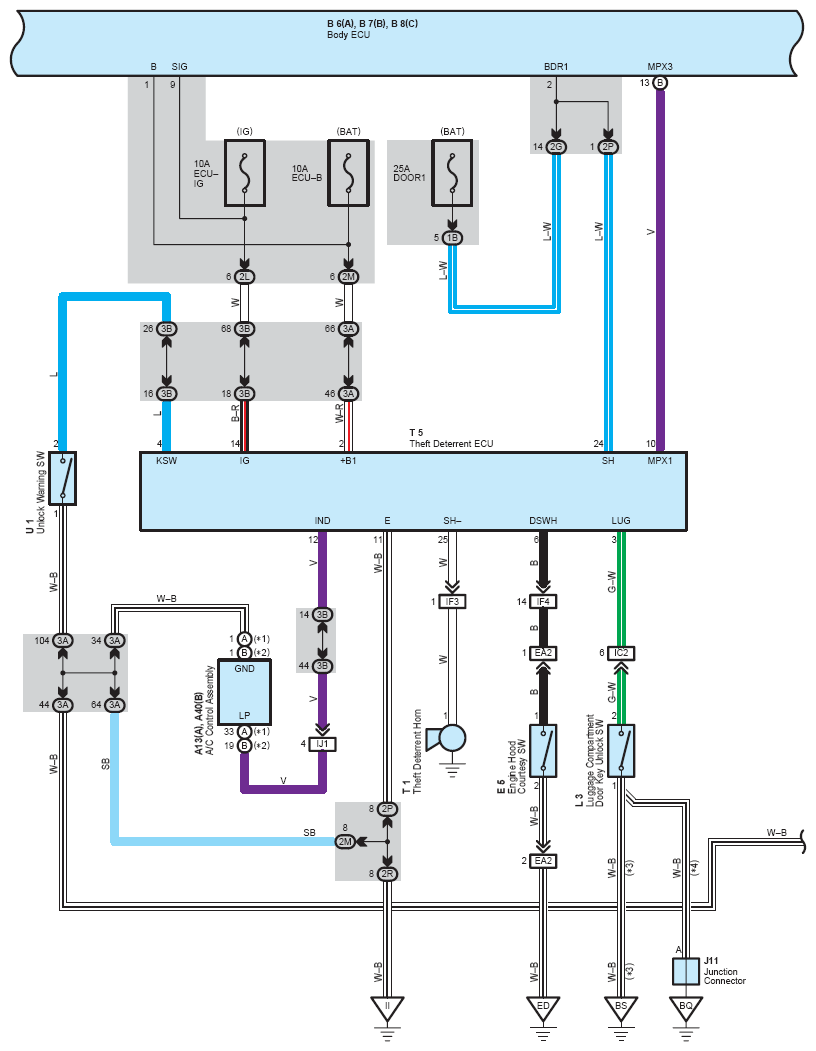

Fig 2: Theft Deterrent And Door Lock Control System Wiring Diagram (2 Of 4)
G08775603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

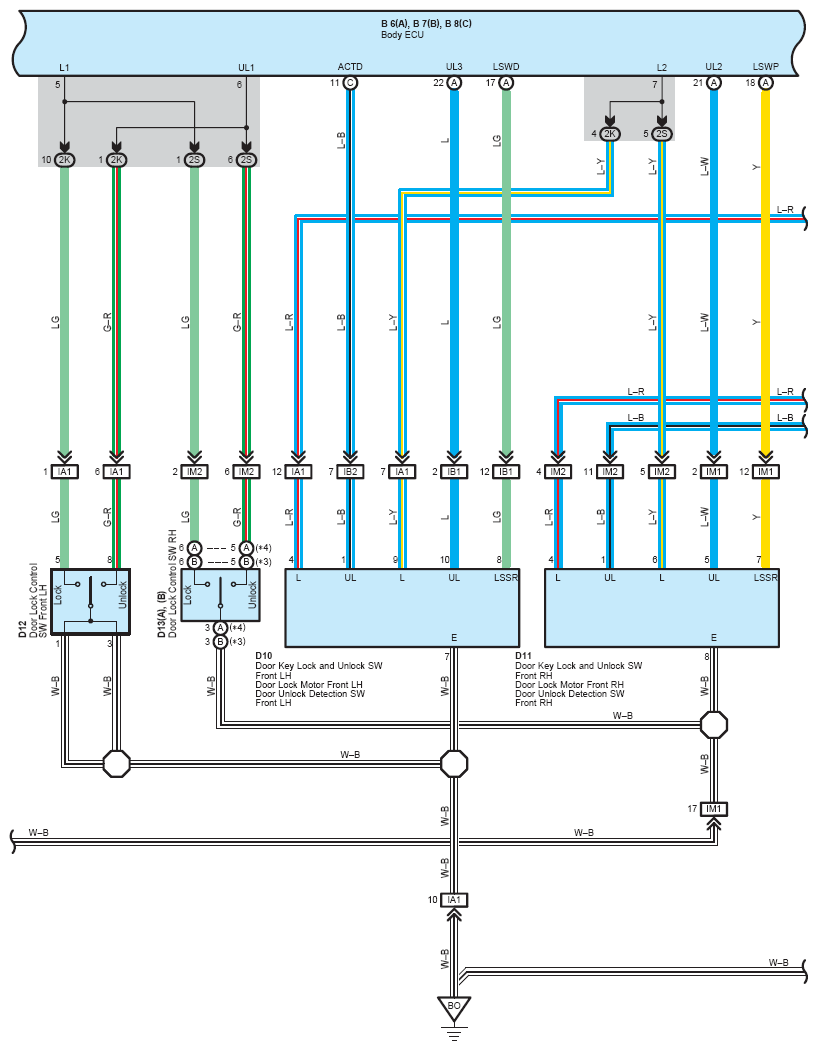

Fig 3: Theft Deterrent And Door Lock Control System Wiring Diagram (3 Of 4)
G08775604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

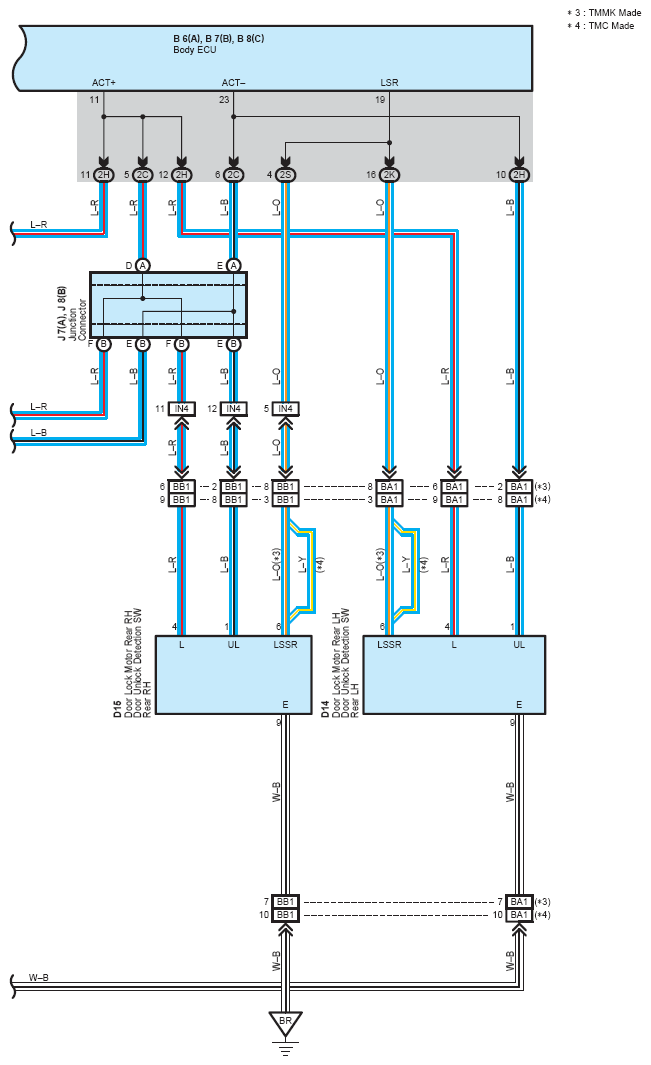

Fig 4: Theft Deterrent And Door Lock Control System Wiring Diagram (4 Of 4)
G08775605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
