Front Wheel Alignment: Adjustment

INSPECT TIRE (See INSPECTION )

MEASURE VEHICLE HEIGHT

Fig 1: Measuring Front Vehicle Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Measuring Rear Vehicle Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Vehicle height:

2AZ-FE COMFORT:

VEHICLE HEIGHT TABLE - 2AZ-FE COMFORT

	USA, Canada	Mexico
Front (A - B)	119 mm (4.69 in.)	106 mm (4.17 in.)
Rear (D - C)	45 mm (1.77 in.) 33 mm	(1.30 in.)

2AZ-FE PREMIUM:

VEHICLE HEIGHT TABLE - 2AZ-FE PREMIUM

Front (A - B)	120 mm (4.72 in.)
Rear (D - C)	45 mm (1.77 in.)

2AZ-FE SPORT:

VEHICLE HEIGHT TABLE - 2AZ-FE SPORT

Front (A - B)	120 mm (4.72 in.)
Rear (D - C)	48 mm (1.89 in.)

1MZ-FE COMFORT:

VEHICLE HEIGHT TABLE - 1MZ-FE COMFORT

Front (A - B)	120 mm (4.72 in.)
Rear (D - C)	46 mm (1.81 in.)

1MZ-FE PREMIUM:

VEHICLE HEIGHT TABLE - 1MZ-FE PREMIUM

	USA, Canada	Mexico
Front (A - B)	119 mm (4.69 in.)	106 mm (4.17 in.)
Rear (D - C)	47 mm (1.85 in.)	33 mm (1.30 in.)

3MZ-FE SPORT:

VEHICLE HEIGHT TABLE - 3MZ-FE SPORT

Front (A - B)	121 mm (4.76 in.)
Rear (D - C)	48 mm (1.89 in.)

Measuring points:

A: Ground clearance of front wheel center

B: Ground clearance of lower suspension arm No. 2 set bolt center

C: Ground clearance of strut rod set bolt center

D: Ground clearance of rear wheel center

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

HINT:

Bounce the vehicle at the corners up and down to stabilize the suspension and inspect the vehicle height.

INSPECT TOE-IN

Fig 3: Inspecting Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Toe-in:

TOE-IN SPECIFICATION TABLE

Toe-in	A + B: 0° +/- 12' (0° +/- 0.2°)
(total)	C - D: 0 +/- 2 mm (0 +/- 0.08 in.)

HINT:

Measure "A + B" when "C - D" can not be measured.
If toe-in is not within the specified range, adjust it at the rack ends.

ADJUST TOE-IN
1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  HINT:

  Try to adjust the toe-in to the center of the specified range.
4. Make sure that the lengths of the right and left rack ends are the same.
5. Torque the tie rod end lock nuts.
  Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
6. Place the boots on the seats and install the clips.
  HINT:

  Make sure that the boots are not twisted.
7. Perform VSC system calibration. (See DTC CHECK/CLEAR )

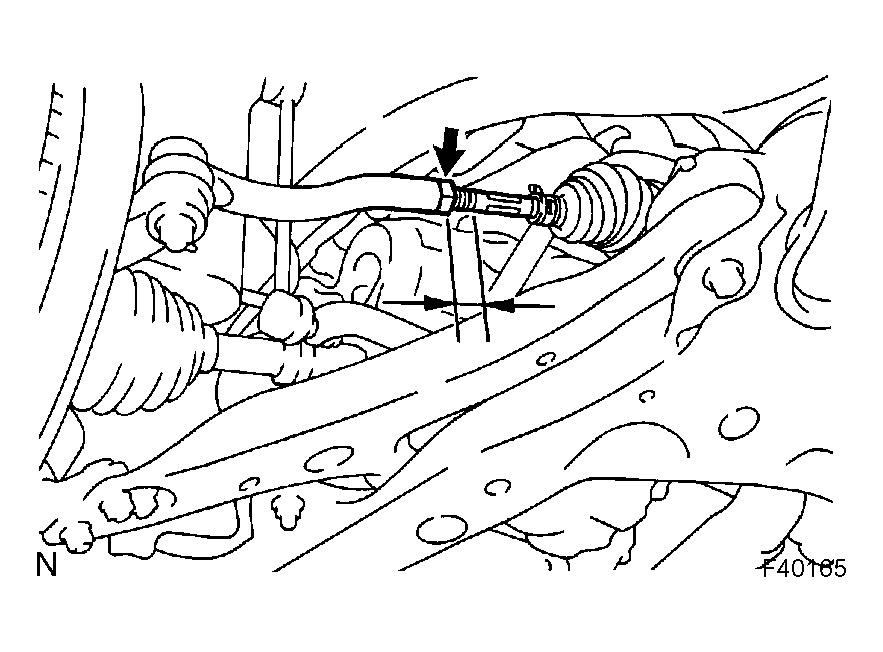

Fig 4: Inspecting Right And Left Rack End Length
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT WHEEL ANGLE

Turn the steering wheel fully left and right, and measure the turning angle.

Fig 5: Identifying Wheel Angles
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wheel turning angle:

USA, Canada:

WHEEL TURNING ANGLE TABLE - USA, CANADA

	15 inch	16 inch
Inside wheel	39°04' +/- 2° (39.07° +/- 2°)	36°39' +/- 2° (36.65° +/- 2°)
Outside wheel: Reference	33°44' (33.73°)	32°11' (32.18°)

Mexico:

WHEEL TURNING ANGLE TABLE - MEXICO

	15 inch	16 inch
Inside wheel	39°30' +/- 2° (39.50° +/- 2°)	37°00' +/- 2° (37.00° +/- 2°)
Outside wheel: Reference	34°02' (34.03°)	32°28' (32.47°)

If the right and left inside wheel angles differ from the specified value, check the right and left rack end lengths.

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

Put the front wheel on the center of the alignment tester.
Set the camber-caster-kingpin gauge at the center of the axle hub or drive shaft.

Fig 6: Identifying Alignment Tester And Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Camber and steering axis inclination:

CAMBER AND STEERING AXIS INCLINATION TABLE

		USA, Canada	Mexico
Camber		-0°43' +/- 45'	-0°33' +/- 45'
		(-0.72° +/- 0.75°)	(-0.55° +/- 0.75°)
	Right-left error	45' (0.75°) or less	45' (0.75°) or less
Steering axis inclination		11°27' +/- 45'	11°05' +/- 45'
		(11.45° +/- 0.75°)	(11.08° +/- 0.75°)
	Right-left error	45' (0.75°) or less	45' (0.75°) or less

Caster

3MZ-FE:

CASTER 3MZ-FE - STEERING AXIS INCLINATION TABLE

Caster		2°40' +/- 45' (2.67° +/- 0.75°)
	Right-left error	45' (0.75°) or less

1MZ-FE:

CASTER 1MZ-FE - STEERING AXIS INCLINATION TABLE

		USA, Canada	Mexico
Caster		2°37' +/- 45'	2°33' +/- 45'
		(2.62° +/- 0.75°)	(2.55° +/- 0.75°)
	Right-left error	45' (0.75°) or less	45' (0.75°) or less

2AZ-FE SPORT:

CASTER 2AZ-FE SPORT - STEERING AXIS INCLINATION TABLE

Caster		2°43' +/- 45' (2.72° +/- 0.75°)
	Right-left error	45' (0.75°) or less

2AZ-FE Except SPORT:

2AZ-FE EXCEPT SPORT - STEERING AXIS INCLINATION TABLE

		USA, Canada	Mexico
Caster		2°39' +/- 45'	2°36' +/- 45'
		(2.65° +/- 0.75°)	(2.60° +/- 0.75°)
	Right-left error	45' (0.75°) or less	45' (0.75°) or less

If the caster and steering axis inclination are not within the specified ranges, after the camber has been correctly adjusted, recheck the suspension parts for damaged and/or worn out parts.

ADJUST CAMBER

NOTE: After the camber has been adjusted, inspect the toe-in.

Remove the front wheel.
Remove the 2 nuts on the lower side of the shock absorber assy front LH.
Clean the installation surfaces of the shock absorber assy front LH and the steering knuckle.
Temporarily install the 2 nuts.

Fig 7: Identifying Shock Absorber Assy Front LH Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fully push or pull the front axle hub in the direction of the required adjustment.
Tighten the nuts.
Torque: 210 N.m (2,141 kgf.cm, 155 ft.lbf)
Install the front wheel.
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

Fig 8: Adjusting Front Axle Hub
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check the camber.
If the measured value is not within the specified range, calculate the required adjustment amount using the formula below.

(Camber adjustment amount) = Center of the specified range - Measured value

Check installed bolts combination. Select appropriate bolts from the table below to adjust the camber within the specified range.

Fig 9: Checking Installed Bolts Combination

ADJUSTING CAMBER ANGLE TABLE

Move the axle toward (+) in step (e)	Refer to Fig 10 (Move the axle toward positive side)
Move the axle toward (-) in step (e)	Refer to Fig 13 (Move the axle toward negative side)

Table (1) (Move the axle toward positive side)

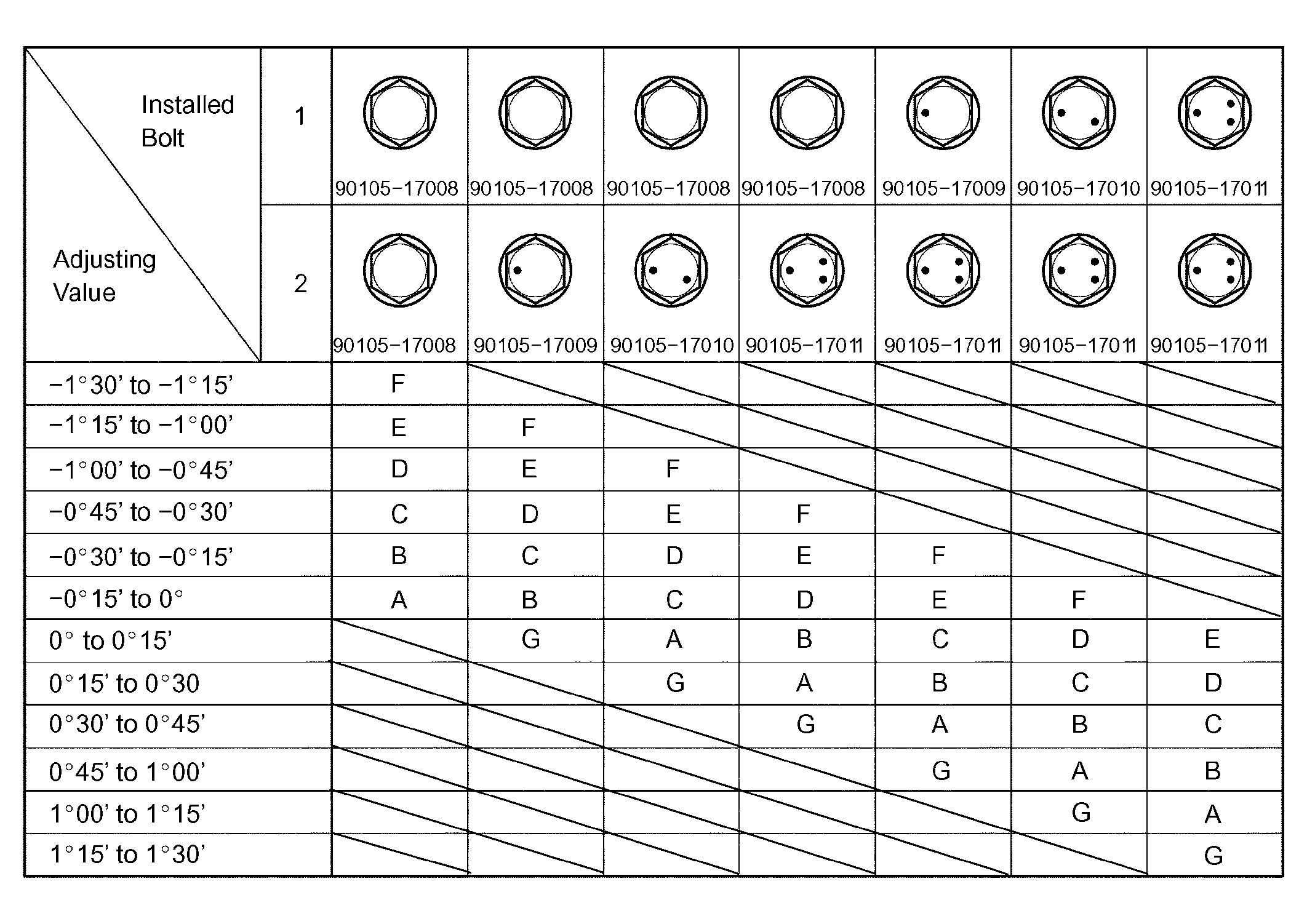

Fig 10: Bolt And Adjusting Value Chart

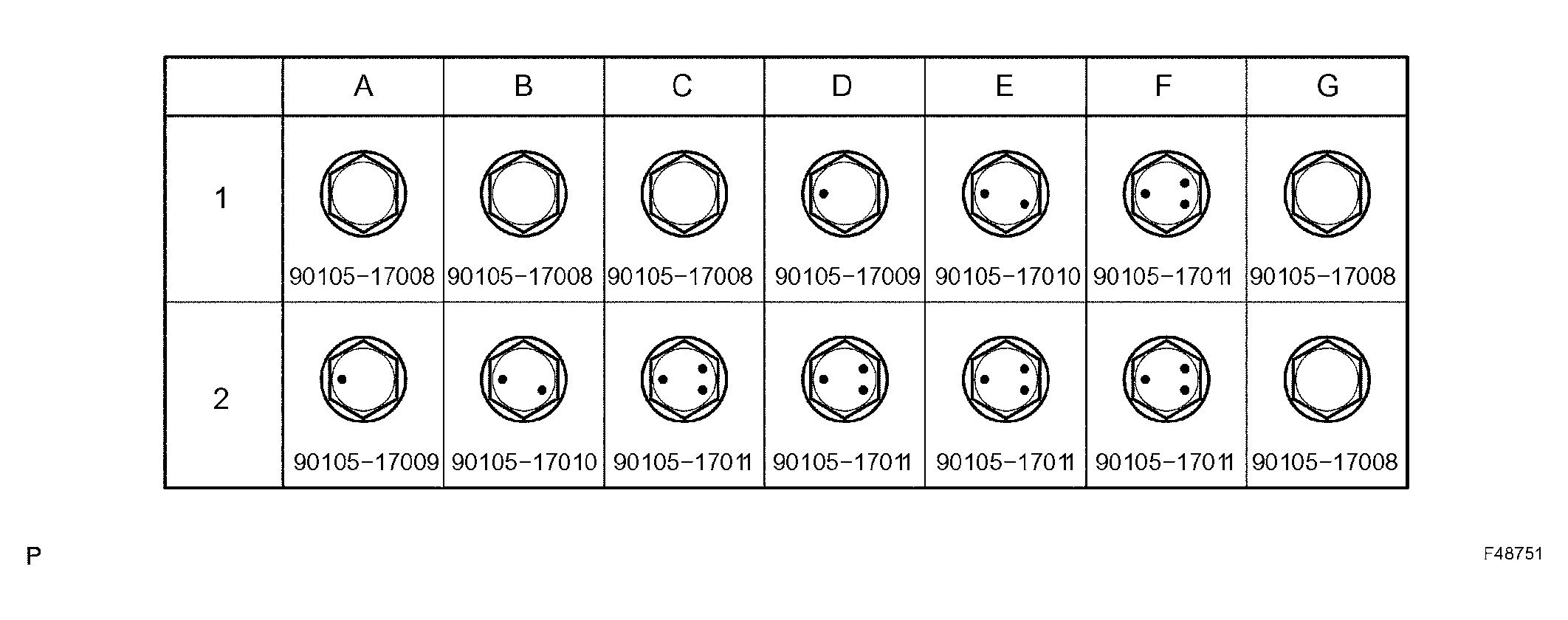

Selected Bolt Combination

Fig 11: Selected Bolt Combination Chart

The body and suspension may be damaged if the camber is not correctly adjusted according to the above table.

NOTE: Replace the nut with a new one when replacing the bolt.

Repeat the steps mentioned above. At step ( b), replace 1 or 2 selected bolts.
HINT:

Replace one bolt at a time when replacing 2 bolts.

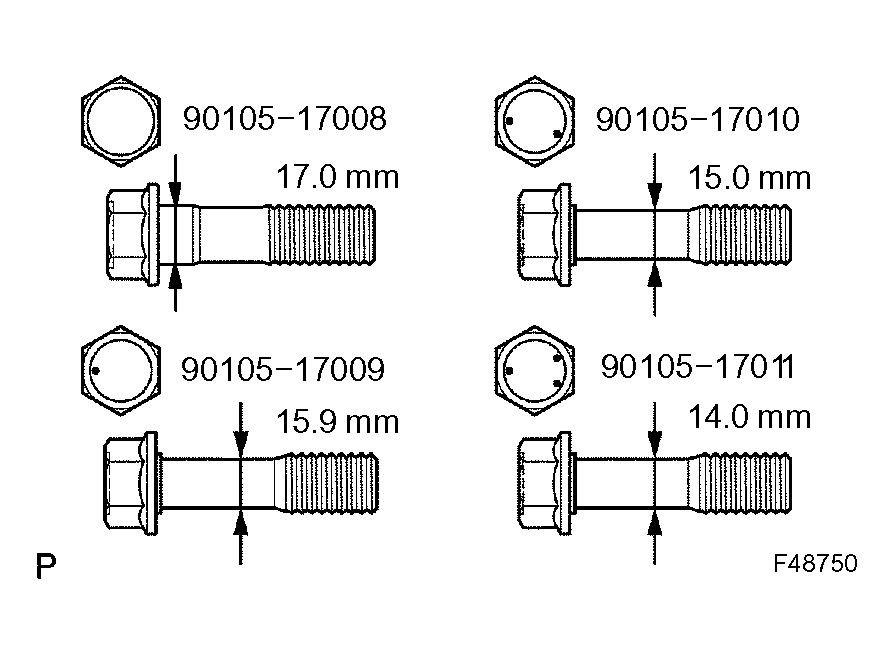

Fig 12: Identifying Bolt Dimension Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Table (2) (Move the axle toward negative side)

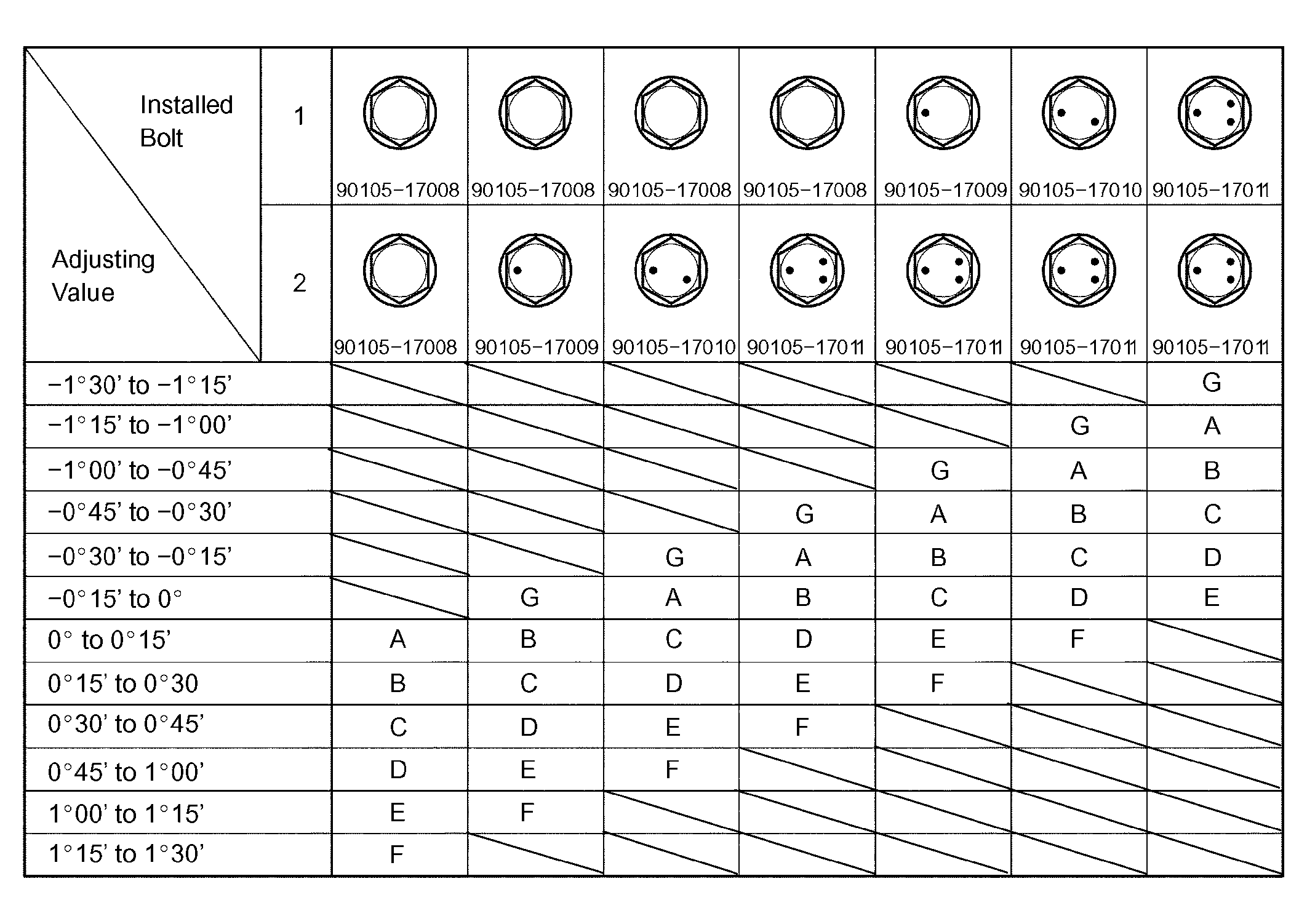

Fig 13: Bolt And Adjusting Value Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Selected Bolt Combination

Fig 14: Selected Bolt Combination Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The body and suspension may be damaged if the camber is not correctly adjusted according to the above table.

NOTE: Replace the nut with a new one when replacing the bolt.
Repeat the steps mentioned above. At step ( b), replace 1 or 2 selected bolts.
HINT:

Replace one bolt at a time when replacing 2 bolts.

Fig 15: Identifying Bolt Dimension Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
