Stabilizer Bar Front: Replacement

See COMPONENTS

1. REMOVE FRONT WHEEL
2. REMOVE FRONT STABILIZER LINK ASSY LH
   1. Remove the 2 nuts and front stabilizer link assy LH.

   HINT:

   If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

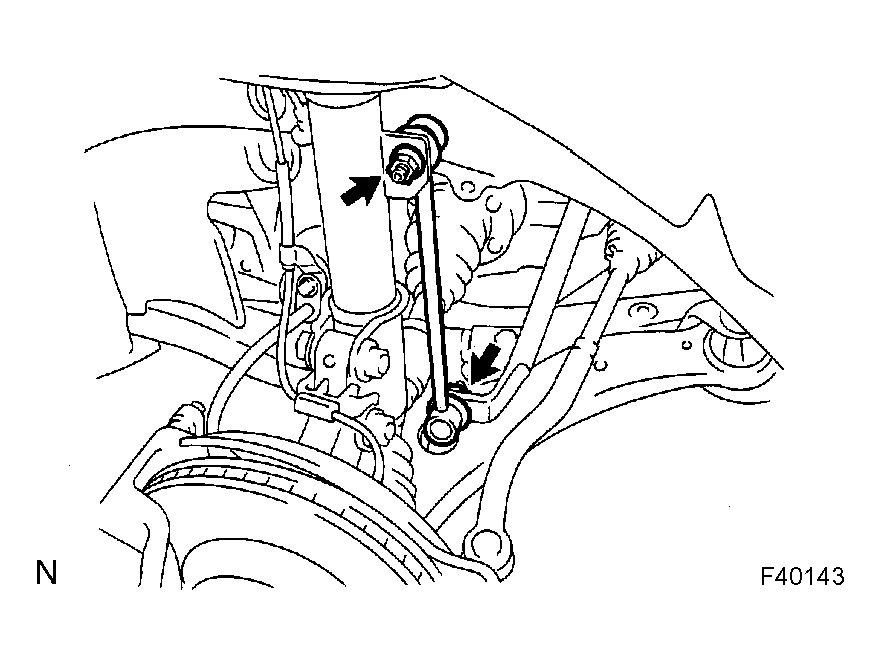

   Fig 1: Identifying Front Stabilizer Link Assy LH Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE FRONT STABILIZER LINK ASSY RH

   HINT:

   Remove the RH side following the same procedures as with the LH side.

4. REMOVE FRONT STABILIZER BRACKET NO. 1 LH
   1. Remove the 2 bolts and front stabilizer bracket No. 1 LH.
   Fig 2: Identifying Front Stabilizer Bracket No. 1 LH Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FRONT STABILIZER BRACKET NO. 1 RH

   HINT:

   Remove the RH side by the same procedures with the LH side.

6. DISCONNECT TIE ROD END SUB-ASSY LH (See step 7 on  OVERHAUL  )

   SST 09628-62011

7. DISCONNECT TIE ROD END SUB-ASSY RH

   SST 09628-62011

   HINT:

   Disconnect the RH side by the same procedures with the LH side.

8. DISCONNECT STEERING GEAR OUTLET RETURN TUBE (See  OVERHAUL  )

   SST 09023-00100

9. DISCONNECT PRESSURE FEED TUBE ASSY (See step 14 on  OVERHAUL  )

   SST 09023-00100

10. DISCONNECT STEERING INTERMEDIATE SHAFT SUB-ASSY (See step 9 on  OVERHAUL  )
11. REMOVE POWER STEERING GEAR ASSY (See  OVERHAUL  )
12. REMOVE STABILIZER BAR FRONT
    1. Remove the stabilizer bar front from the vehicle.
13. REMOVE FRONT STABILIZER BAR BUSH NO. 1
    1. Remove the 2 bushes from the stabilizer.
14. INSPECT FRONT STABILIZER LINK ASSY LH
    1. As shown in the illustration, flip the ball joint stud back and forth 5 times, before installing the nut.
    2. Using a torque wrench, turn the nut continuously at a rate of 2 to 4 seconds per 1 turn and take the torque reading on the 5th turn.

       Turning torque:

       0.05 to 1.96 N.m (0.5 to 20 kgf.cm, 0.4 to 17.4 in.lbf)

    Fig 3: Inspecting Front Stabilizer Link Assy LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. INSTALL FRONT STABILIZER BAR BUSH NO. 1

    HINT:

    Install the bush to the outer side of the bush stopper on the stabilizer bar.

    Fig 4: Installing Front Stabilizer Bar Bush No. 1

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL STABILIZER BAR FRONT
    1. Install the stabilizer bar front to the vehicle.
17. INSTALL POWER STEERING GEAR ASSY (See  OVERHAUL  )
18. INSTALL STEERING INTERMEDIATE SHAFT SUB-ASSY (See step 67 on  OVERHAUL  )
19. INSTALL PRESSURE FEED TUBE ASSY (See step 62 on  OVERHAUL  )

    SST 09023-00100

20. INSTALL STEERING GEAR OUTLET RETURN TUBE (See  OVERHAUL  )

    SST 09023-00100

21. INSTALL TIE ROD END SUB-ASSY LH (See step 49 on  OVERHAUL  )
22. INSTALL TIE ROD END SUB-ASSY RH

    HINT:

    Install the RH side following the same procedures as with the LH side.

23. INSTALL FRONT STABILIZER BRACKET NO. 1 LH
    1. Install the front stabilizer bracket No. 1 LH with the 2 bolts.

       Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

       Fig 5: Identifying Front Stabilizer Bracket No. 1 LH Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. INSTALL FRONT STABILIZER BRACKET NO. 1 RH

    HINT:

    Install the RH side following the same procedures as with the LH side.

25. INSTALL FRONT STABILIZER LINK ASSY LH
    1. Install the front stabilizer link assy LH with the 2 nuts.

       Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)

    HINT:

    If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

    Fig 6: Identifying Front Stabilizer Link Assy LH Nuts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. INSTALL FRONT STABILIZER LINK ASSY RH

    HINT:

    Install the RH side following the same procedures as with the LH side.

27. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

28. BLEED POWER STEERING FLUID (See  ON-VEHICLE INSPECTION  )
29. CHECK POWER STEERING FLUID LEAKAGE
30. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See  FRONT WHEEL ALIGNMENT  )
